ASSEMBLY
NOTE: Many of the illustrations in this manual show only por-
tions of your compound miter saw. This is intentional so that
we can clearly show points being made in the illustrations.
Never operate your saw without all guards securely in place
and in good operating condition.
SQUARING THE MITER TABLE TO THE
FENCE
See Figures 12 - 15.
 Unplug your saw.
 Push down on the saw arm and pull out the lock pin to
r
elease the saw arm.
 Raise saw arm to its full raised position.
 Loosen the miter lock levers.
 Rotate the miter table until the pointer is positioned
at 0
°
.
 Securely tighten the miter lock levers.
 Lay a framing square flat on the miter table. Place one
leg
of the square against the fence. Place the other
leg of the square beside the throat plate in the miter table.
The edge of the square and the slot in the throat plate in
the miter table should be parallel as shown in figure 12.
 If the edge of the framing square and the throat plate in
the
miter table are not parallel as shown in figures 13 and
14, adjustments are needed.
 Using the hex key, loosen the socket head screws securing
the
fence. Adjust the fence left or right until the framing
square and throat plate are parallel.
 Retighten the screws securely and recheck the fence-to-
table alignment.

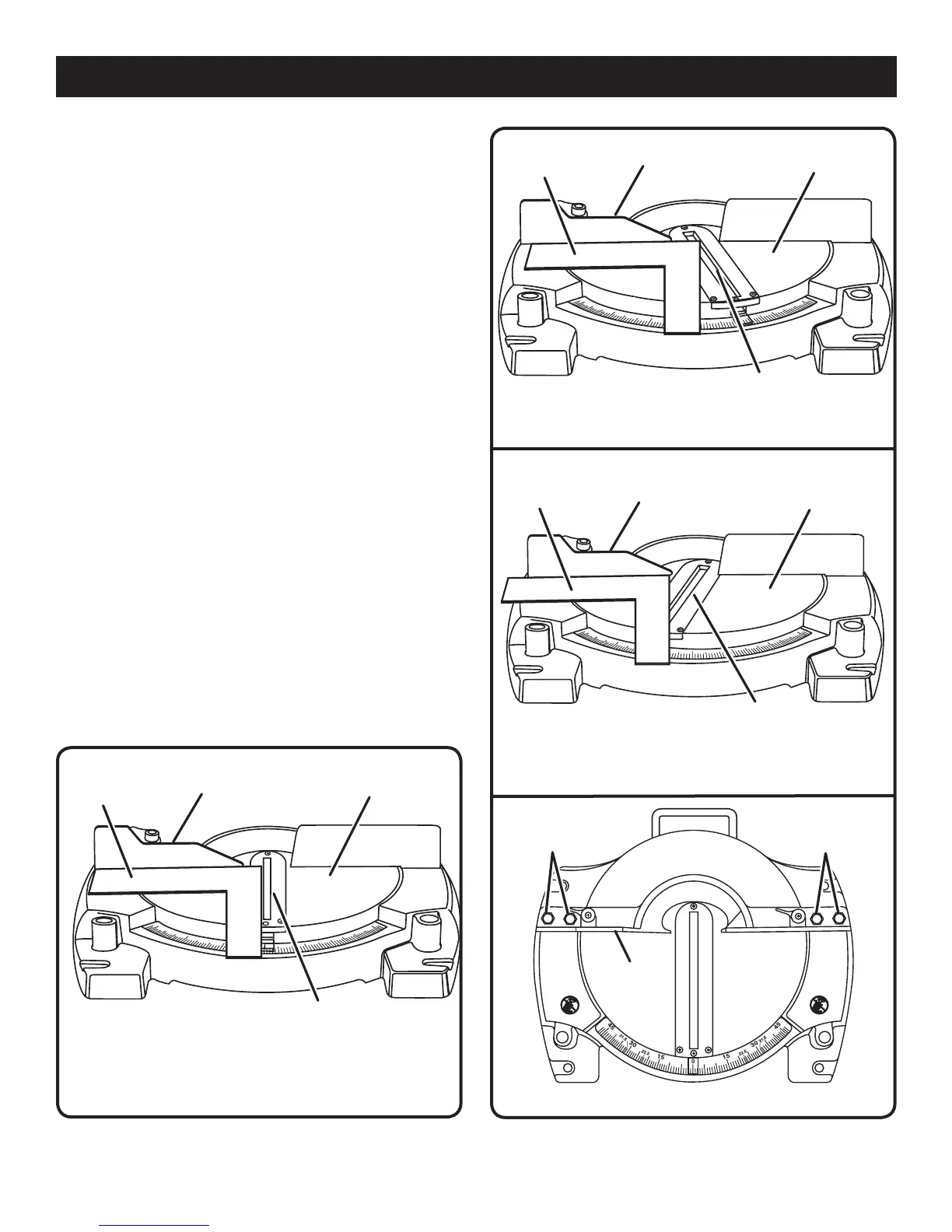

Fig. 15
FENCE
SOCKET HEAD
SCREW(S)
Fig. 13
VIEW OF MITER T
ABLE NOT SQUARE WITH FENCE,
ADJUSTMENTS ARE REQUIRED
Fig. 14
VIEW OF MITER TABLE NOT SQUARE WITH FENCE,
ADJUSTMENTS ARE REQUIRED
Fig. 12
VIEW OF MITER T
ABLE SQUARE WITH FENCE
CORRECTL
Y ADJUSTED
FENCE
MITER TABLE
THROAT PLATE
FRAMING
SQUARE
FENCE
MITER TABLE
THROAT PLATE
FRAMING
SQUARE
FENCE
MITER TABLE
THROAT PLATE
FRAMING
SQUARE
SOCKET HEAD
SCREW(S)
