TRANSMISSION
/CRAN
KSHAFT
/ KICKSTARTER

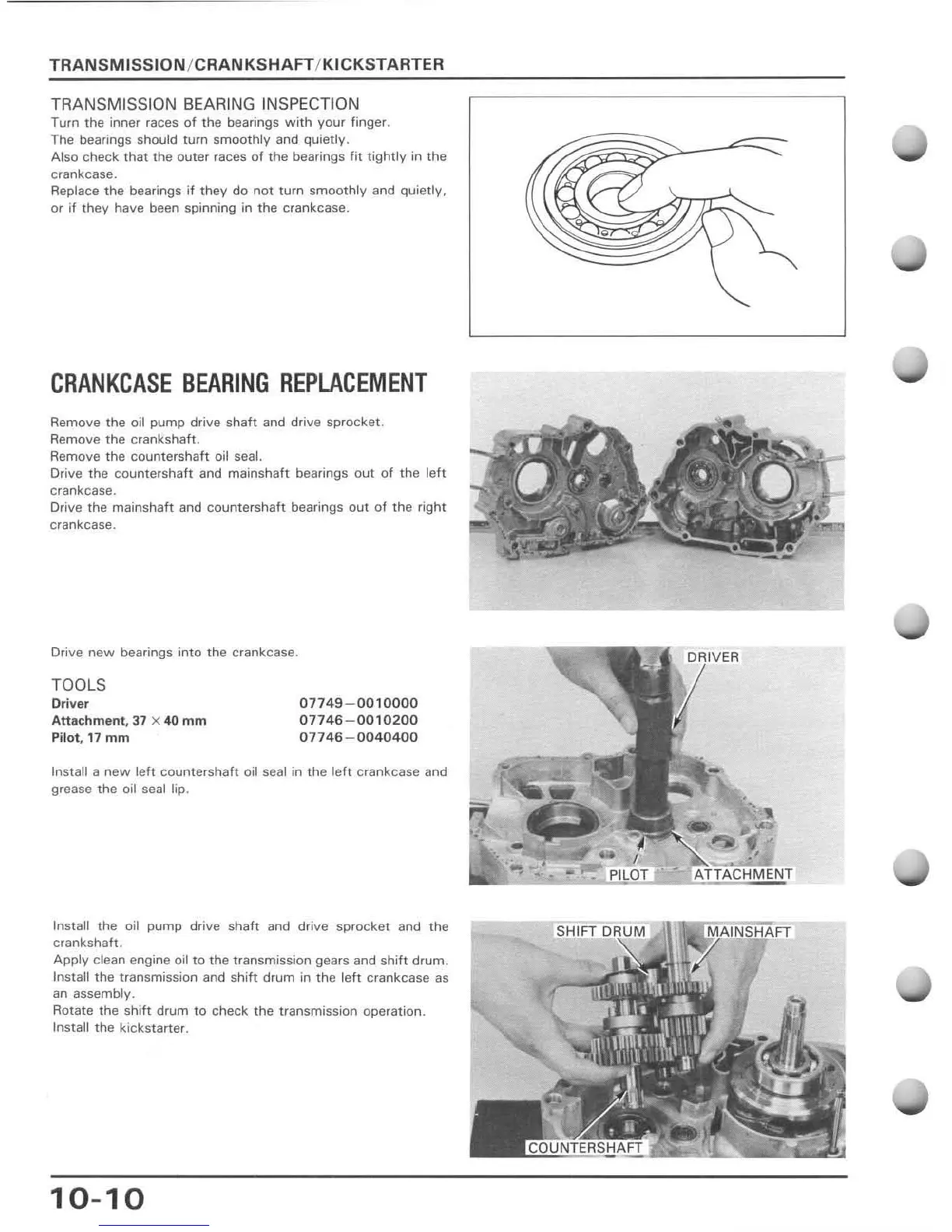

TRANSMISSION BEARING INSPECTION
Turn the inner races
of
the bearings
with
your finger.
The bearings
should turn
smoothly
and quietly.
Also check
that
the outer fBces
of
the
bea
rings
fit
tightly
in the
crankcase.
Replace
the
bearings
if
they
do
not turn
smoothly
and quietly,
or if they have
been
spinning
in
the
crankcase.
CRANKCASE
BEARING
REPLACEMENT
Remove
the
oil pump drive
shaft
and drive sprocket.
Remove the crankshaft.
Remove the countershaft
oil seal.
Drive the cou
ntershalt
and mainshaft bearings
out
of
the
left
crankcase.
Drive the mainshaft and countershaft bearings
out
of
the ri
ght
crankcase.
Drive
new
bearings into the crankcase.
TOOLS
Driver
Attachment
.
37
x
40
mm
Pilot. 17
mm
07749
-
0010000
07146
-
0010200
07746
-
0040400
Instal! a
new
left
countershaft oil seal in the
le
ft
crankcase and
grease the
oil seal lip.
Install the oil pump drive
shaft
and drive sprocket and the
cranksh
aft
.
Apply
dean
engine oil
to
the transmission gears and
shift
drum.
Install
the
transmission and
shih
drum
in
the
left
crankcase
as
an assembly.
Rotate the
shift
drum
to
check the transmission operation.
Install the kickstarter.
10-10
