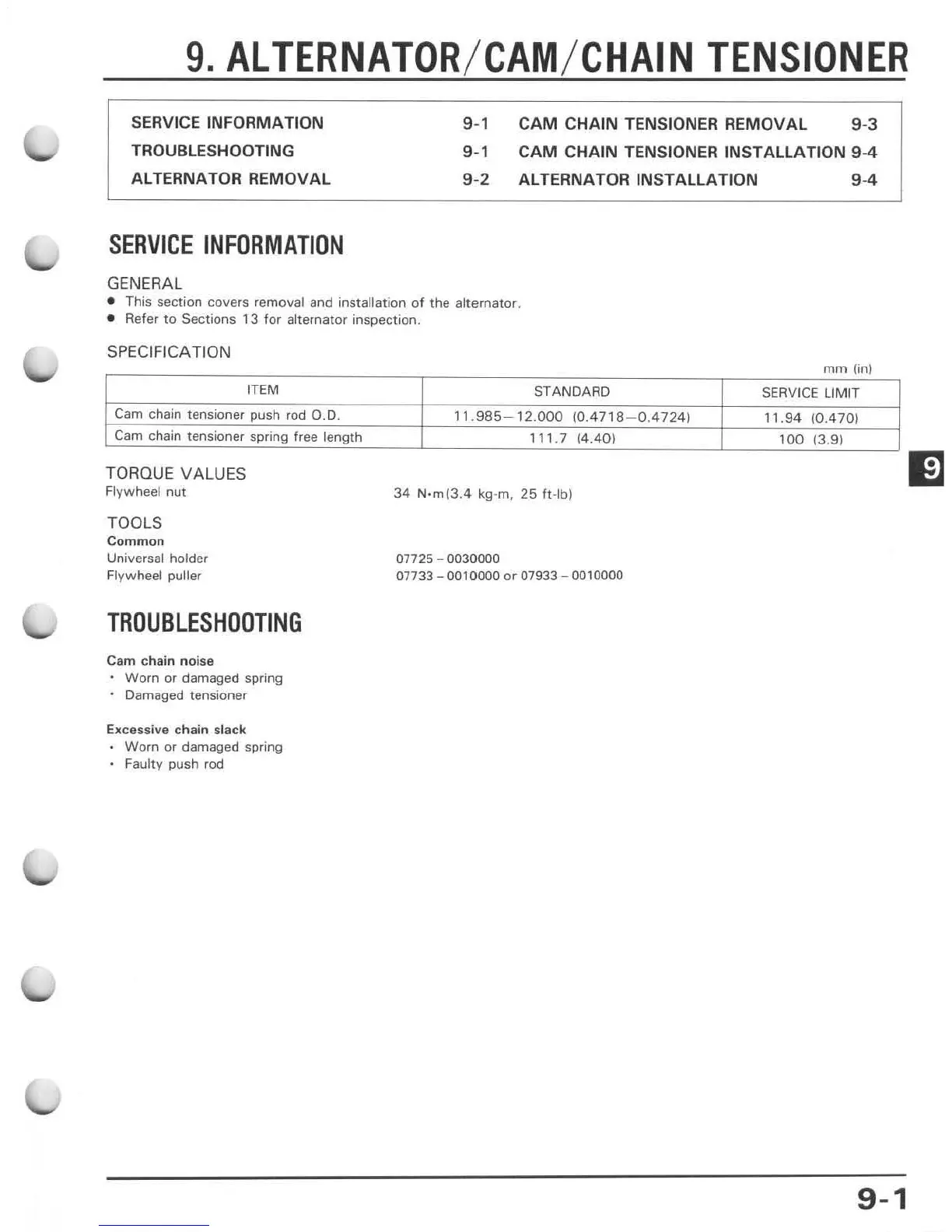

9. ALTERNATOR / CAM / CHAIN TENSIONER
SERVICE INFORMATION
TROUBLESHOOTING
ALTERNATOR REMOVAL
SERVICE INFORMATION
GENERAL
9-1
9-1
9 -2
CAM CHAIN TENSIONER REMOVAL 9-3
CAM CHAIN TENSIONER INSTALLATION 9-4
ALTERNATOR INSTALLATION 9-4
• This section cOllers removal and installation of the alternator.
• Refer to Sections 13 for alternator inspection.
SPECIFICATI ON
ITEM
Cam
chain tensioner push rod 0.0.
Cam chain tensioner spring free length
TORQUE VALUES
flywheel nut
TOO LS
Common
Universal holder
Flywheel
puller
TROUBLESHOOTING
Cam chain noi se
• Worn or damaged spring
•
Damaged tensioner
Excessive cha
in slack
Worn or damaged spring
• Faulty push rod
STANDARD
11.985- 12.000 (0. 4718
'11 .7
(4.401
34 N' m (3.4 kg-m. 25 ft-Ib)
07725 - 0030000
07733 - 0010000 or 07933 - 0010000
mm (in)
SERVI CE LIMIT
0. 4724 1 11.94 (00470)
100 (3.9)
9-1
