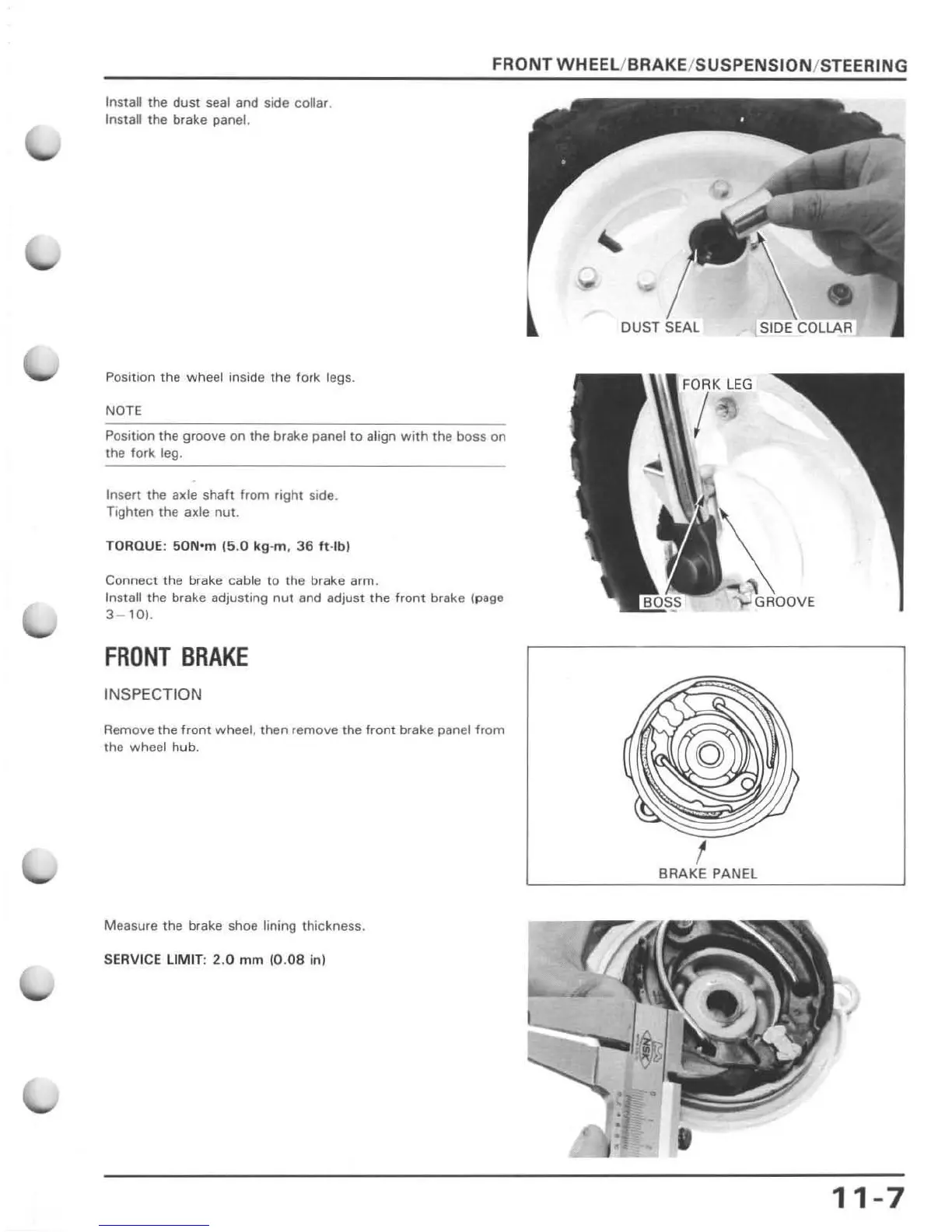

FRONT
WHEEL
/
BRAKE
/
SUSPENSION
/STEERING
InSlall the
dust
seal and side collar.
InSlall
the
brake
panel.
Position the wheel inside the
fork
legs.
NOTE
POSItion
the groove
on
the brake panel
to
align
with
the boss
on
the fork leg.
Insert the axle shaft from right side.
Tighten the axle
nut.
TORQUE:
50N'm
(5.0
kg
-m.
36
ft
·l
b)
Connect the brake cable
to
the brake arm.
Install the brake adjusting
nul
and adjust
the
front
brake (page
3-
101.
FRONT
BRAKE
INSPECTION
Remove the
front
wheel, then remove the
front
brake panel
from
the wheel hub.
Measure the brake shoe lining thickness.
SE
RVICE
LIMIT
:
2.0
mm
(0.08
In)
I
BRAKE PANEL
•
11-7
