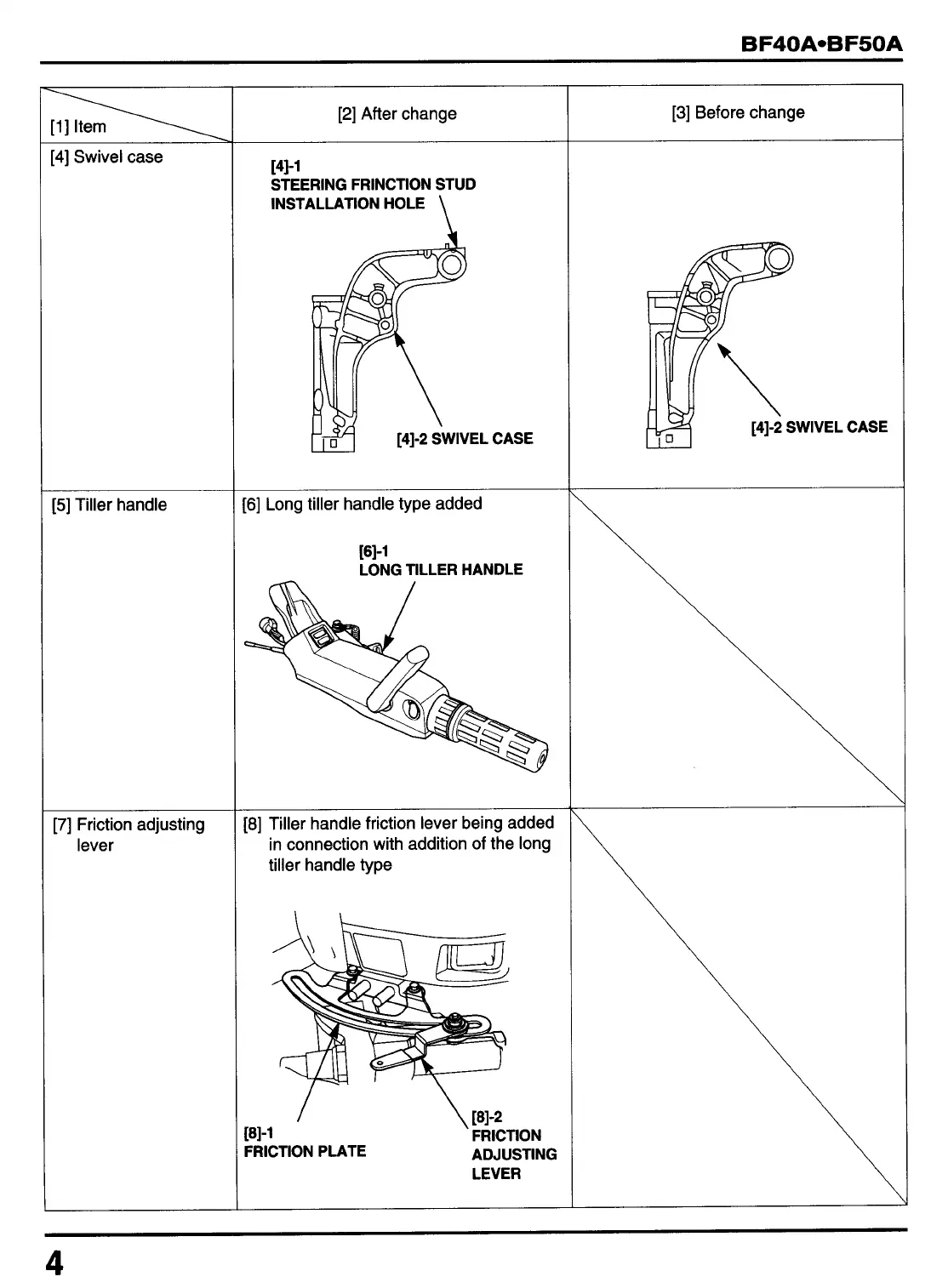

BF40AaBF50A
[l] 1 Itern
[4] Swivel case
~~
[5] Tiller handle
[7] Friction adjusting
lever
[2] After change
141-1
STEERING FRlNCTlON STUD
INSTALLATION HOLE
\
CASE
[6] Long tiller handle type added
M-1
LONG TILLER HANDLE
[8] Tiller handle friction lever being added
in connection with addition
of the long
tiller handle type
/
181-1
FRICTION PLATE
\ PI-2
FRICTION
ADJUSTING
LEVER
[3] Before change
CASE
4
