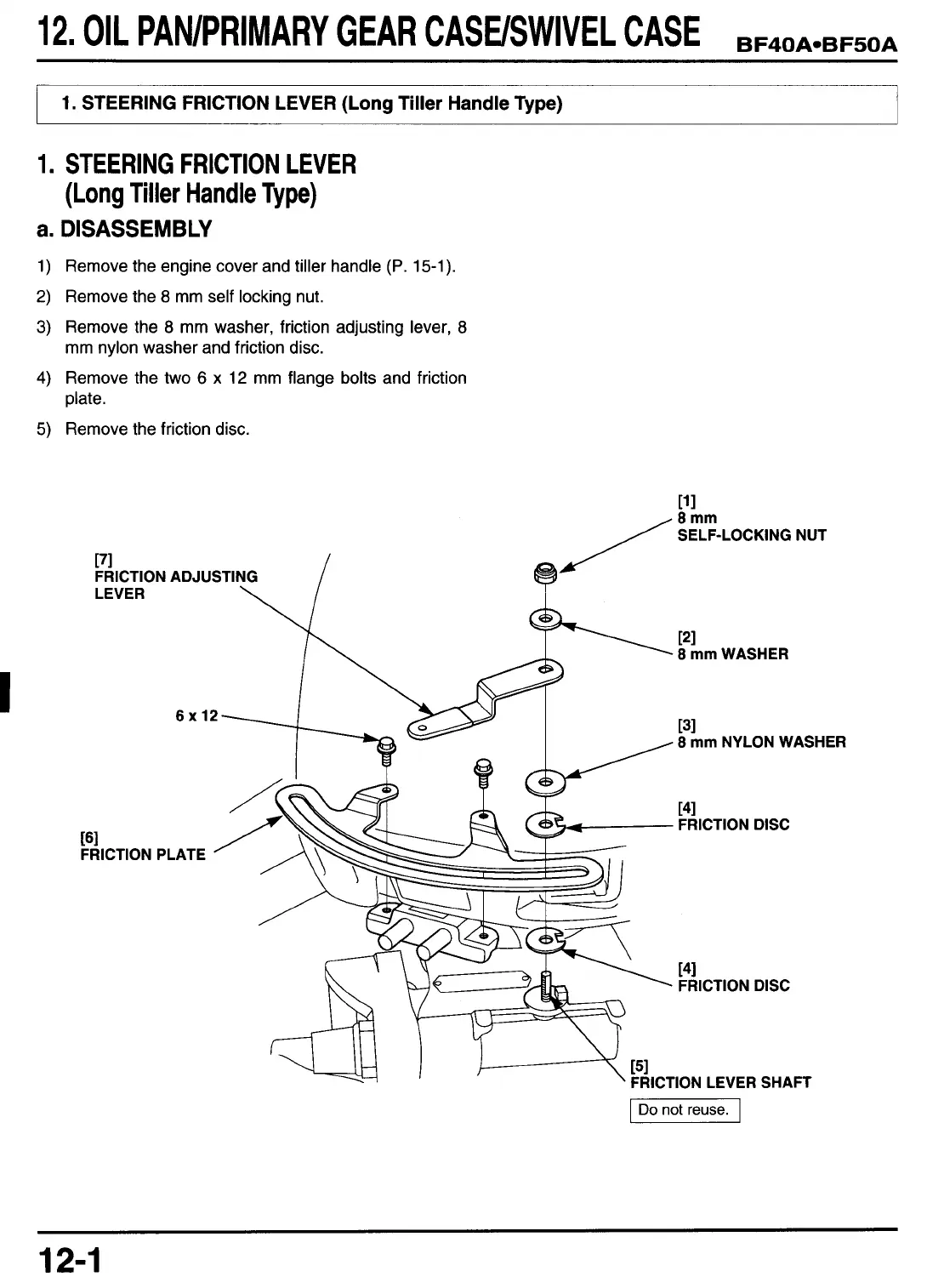

12.
OIL PAN/PRIMARY GEAR CASUSWIVEL CASE
BF40AoBF50A
1.
STEERING
FRICTION
LEVER (Long Tiller Handle Type)
1.
STEERING FRICTION LEVER
(Long Tiller Handle Type)
a.
DISASSEMBLY
1) Remove the engine cover and tiller handle
(P.
15-1).
2) Remove the
8
mm self locking nut.
3)
Remove the
8
mm washer, friction adjusting lever,
8
mm nylon washer and friction disc.
4)
Remove the two
6
x
12 mm flange bolts and friction
plate.
5) Remove the friction disc.
[71
FRICTION ADJUSTING
x
LEVER
6x12
[GI
FRICTION PLATE
win-#
iLn
NYLON WASHER
141
FRICTION DISC
12-1
To Next Page
