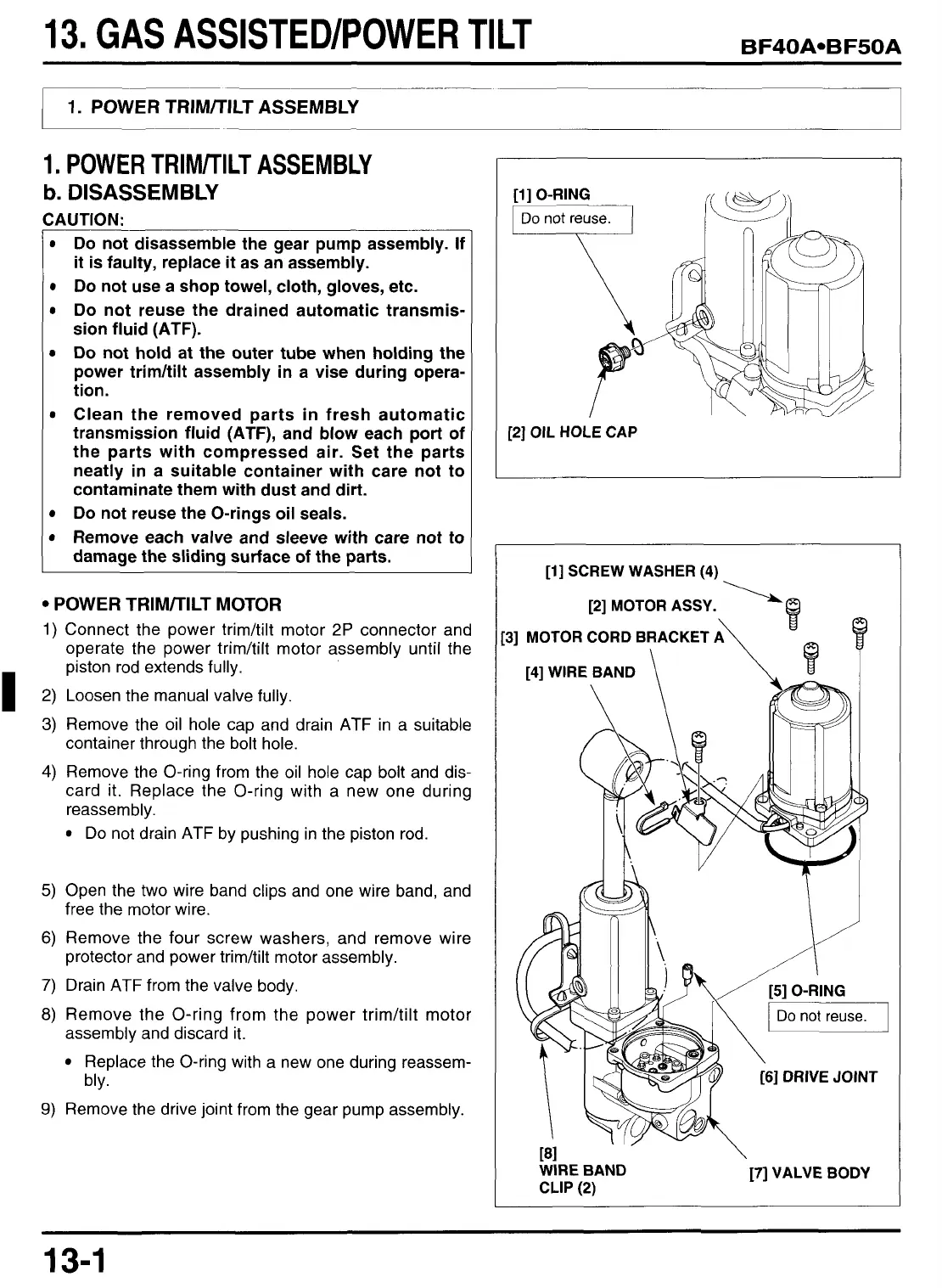

13.
GAS ASSlSTEDlPOWER
TILT
I
~-
~WPOWERTRlMrrl
LT
ASSEMBLY
1.
POWER TRlMRlLT ASSEMBLY
b.
DISASSEMBLY
ZAUTION:
Do
not disassemble the gear pump assembly. If
it is faulty, replace it as an assembly.
Do
not use a shop towel, cloth, gloves, etc.
Do
not reuse the drained automatic transmis-
sion fluid
(ATF).
Do
not hold at the outer tube when holding the
power trimhilt assembly in a vise during opera-
tion.
Clean the removed parts in fresh automatic
transmission fluid
(ATF),
and blow each port of
the parts with compressed air. Set the parts
neatly in a suitable container with care not to
contaminate them with dust and dirt.
Do
not reuse the O-rings oil seals.
Remove each valve and sleeve with care not to
damage the sliding surface of the parts.
POWER
TRIM/TILT MOTOR
1)
Connect the power trimhilt motor
2P
connector and
operate the power trimhilt motor assembly until the
piston rod extends fully.
2)
Loosen the manual valve fully.
3)
Remove the oil hole cap and drain
ATF
in a suitable
container through the bolt hole.
4) Remove the O-ring from the oil hole cap bolt and dis-
card it. Replace the O-ring with a new one during
reassembly.
Do not drain ATF by pushing in the piston rod.
I
[l]
O-RING
(Donoti
\
L
I
[Z]
OIL
HOLE CAP
[l] SCREW WASHER
(4)
131
[2]
MOTOR
ASSY.
\
MOTOR
CORD BRACKET
5)
Open the two wire band clips and one wire band, and
6)
Remove the four screw washers, and remove wire
7)
Drain
ATF
from the valve body.
8)
Remove the O-ring from the power trimhilt motor
assembly and discard it.
Replace the O-ring with a new one during reassem-
bly.
free the motor wire.
protector and power trimhilt motor assembly.
9) Remove the drive joint from the gear pump assembly.
\
[7]
VALVE BODY
I
CLIP (2)
13-1
