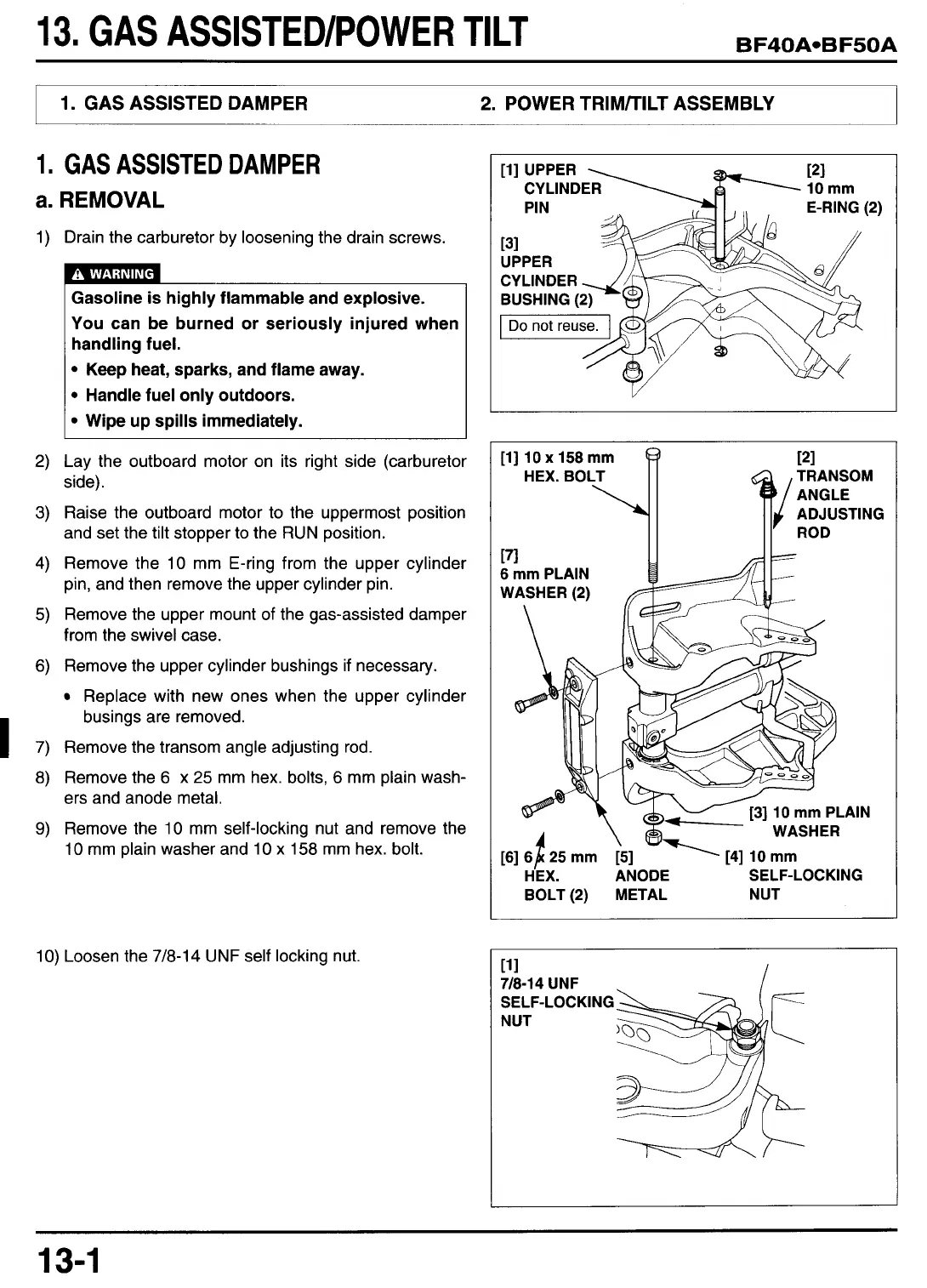

13.
GAS ASSISTED/POWER TILT
1.
GAS ASSISTED DAMPER
2.
POWER TRIMnILT ASSEMBLY
I
1.
GAS ASSISTED DAMPER
a.
REMOVAL
Drain the carburetor by loosening the drain screws.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when
handling fuel.
Keep heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
Lay the outboard motor on its right side (carburetor
side).
Raise the outboard motor to the uppermost position
and set the tilt stopper to the
RUN
position.
Remove the
10
mm E-ring from the upper cylinder
pin, and then remove the upper cylinder pin.
Remove the upper mount of the gas-assisted damper
from the swivel case.
Remove the upper cylinder bushings if necessary.
Replace with new ones when the upper cylinder
busings are removed.
Remove the transom angle adjusting rod.
Remove the
6
x 25 mm hex. bolts,
6
mm plain wash-
ers and anode metal.
Remove the
10
mm self-locking nut and remove the
10
mm plain washer and
10
x 158 mm hex. bolt.
10)
Loosen the 7/8-14
UNF
self locking nut.
[l] 10
x
158
mm
121
TRANSOM
ANGLE
ADJUSTING
ROD
6
mm PLAIN
-
[3]
10
mm
PLAIN
WASHER
[6] 6j25
mm
[5]
[4] 10
mm
HEX. ANODE SELF-LOCKING
BOLT
(2)
METAL NUT
11
1
7/8-14
UNF
SELF-LOCKING
NUT
13-1
