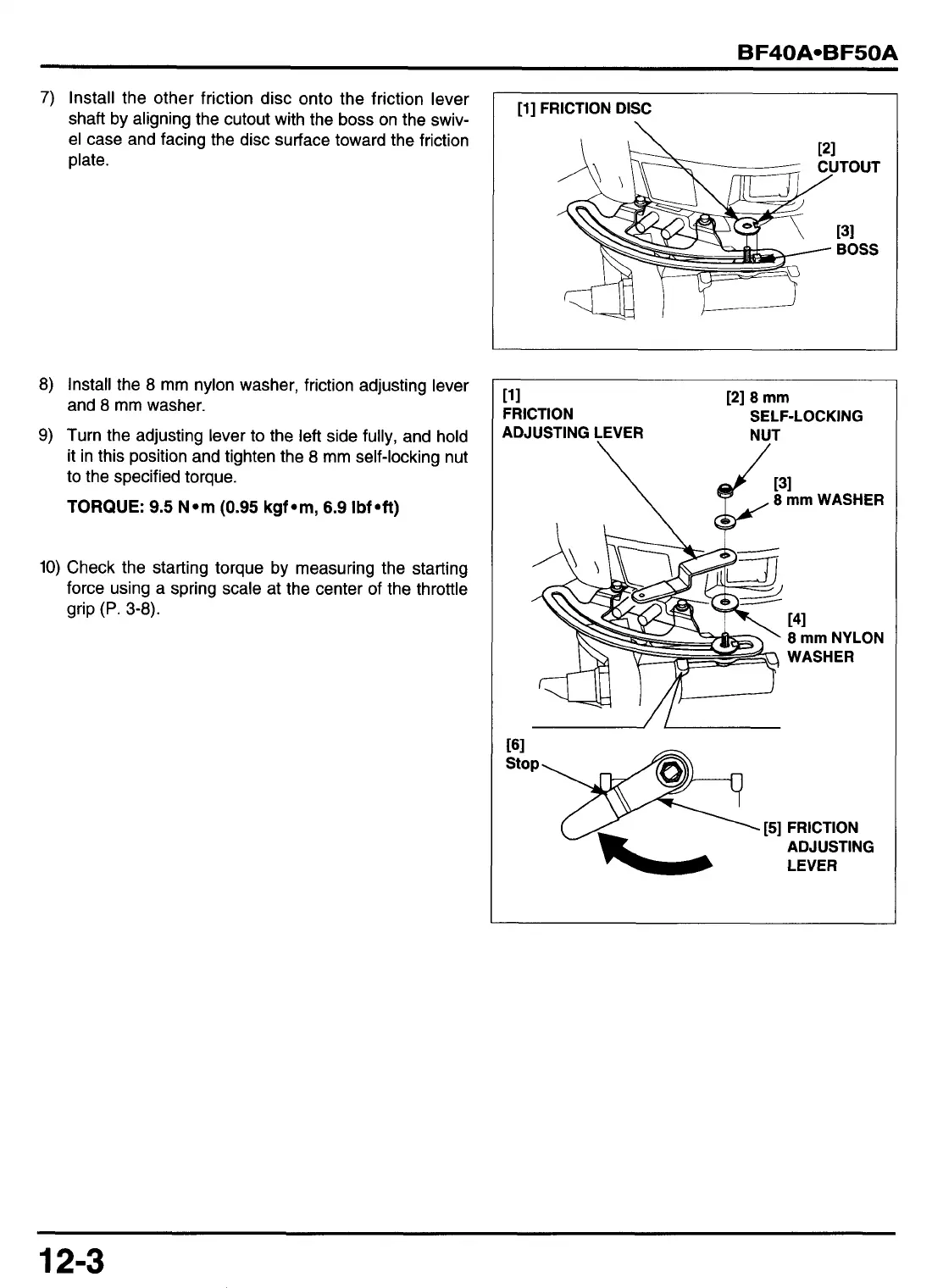

shaft by aligning the cutout with the boss on the swiv-
el case and facing the disc surface toward the friction
plate.
I
\
8)
Install the 8 mm nylon washer, friction adjusting lever
and
8 mm washer.
9)
Turn the adjusting lever to the left side fully, and hold
it in this position and tighten the
8
mm self-locking nut
to
the specified torque.
TORQUE:
9.5 N*m (0.95 kgf*m, 6.9 Ibfoft)
10)
Check the starting torque by measuring the starting
force using a spring scale at the center of the throttle
grip
(P.
3-8).
[I1
[2]
8
mm
ADJUSTING LEVER NUT
FRICTION SELF-LOCKING
\
/
131
8
mm WASHER
I
I
\
141
8
mm
NYLON
WASHER
-
I//-
//
[5] FRICTION
ADJUSTING
LEVER
1213
