THROTTLE BRACKETISHIFT LEVER/
15.
HANDLEBAR (TILLER HANDLE TYPE ONLY)
~
1.
LONG TILLER HANDLE
I
1.
LONG TILLER HANDLE
a.

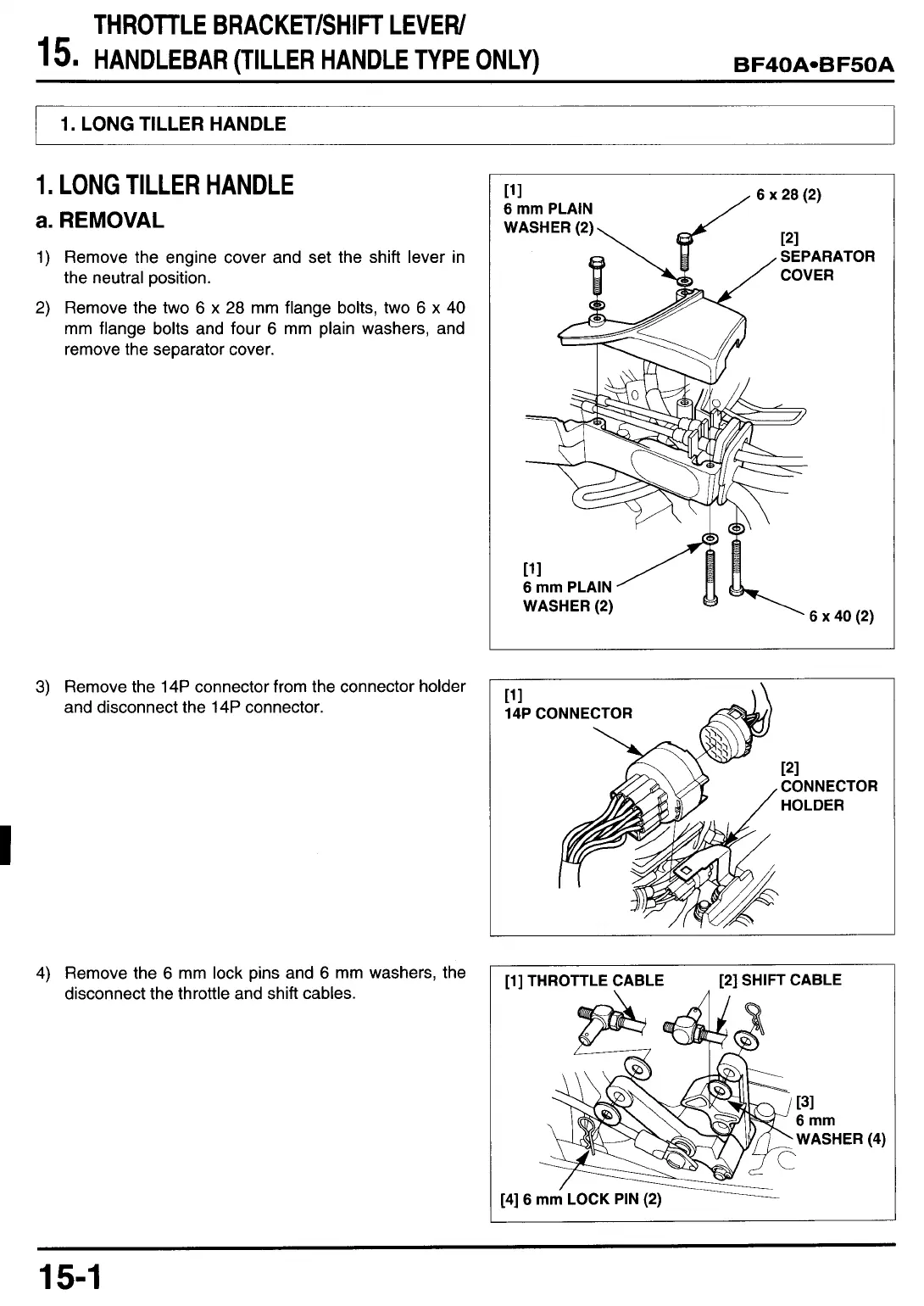

REMOVAL
1)
Remove the engine cover and set the shift lever in
the neutral position.
2)
Remove the two
6
x
28
mm flange bolts, two
6
x
40
mm flange bolts and four
6
mm plain washers, and
remove the separator cover.
3) Remove the
14P
connector from the connector holder
and disconnect the
14P
connector.
4)
Remove the
6
mm lock pins and
6
mm washers, the
disconnect the throttle and shift cables.
111
6
mm
PLAIN
SEPARATOR
'
6
x
40 (2)
PI
14P
121
CONNECTOR
HOLDER
I
[l] THROTTLE CABLE
[2] SHIFT CABLE
[31
6
mm
WASHER (4)
15-1
