BF40A-BF50A
4)

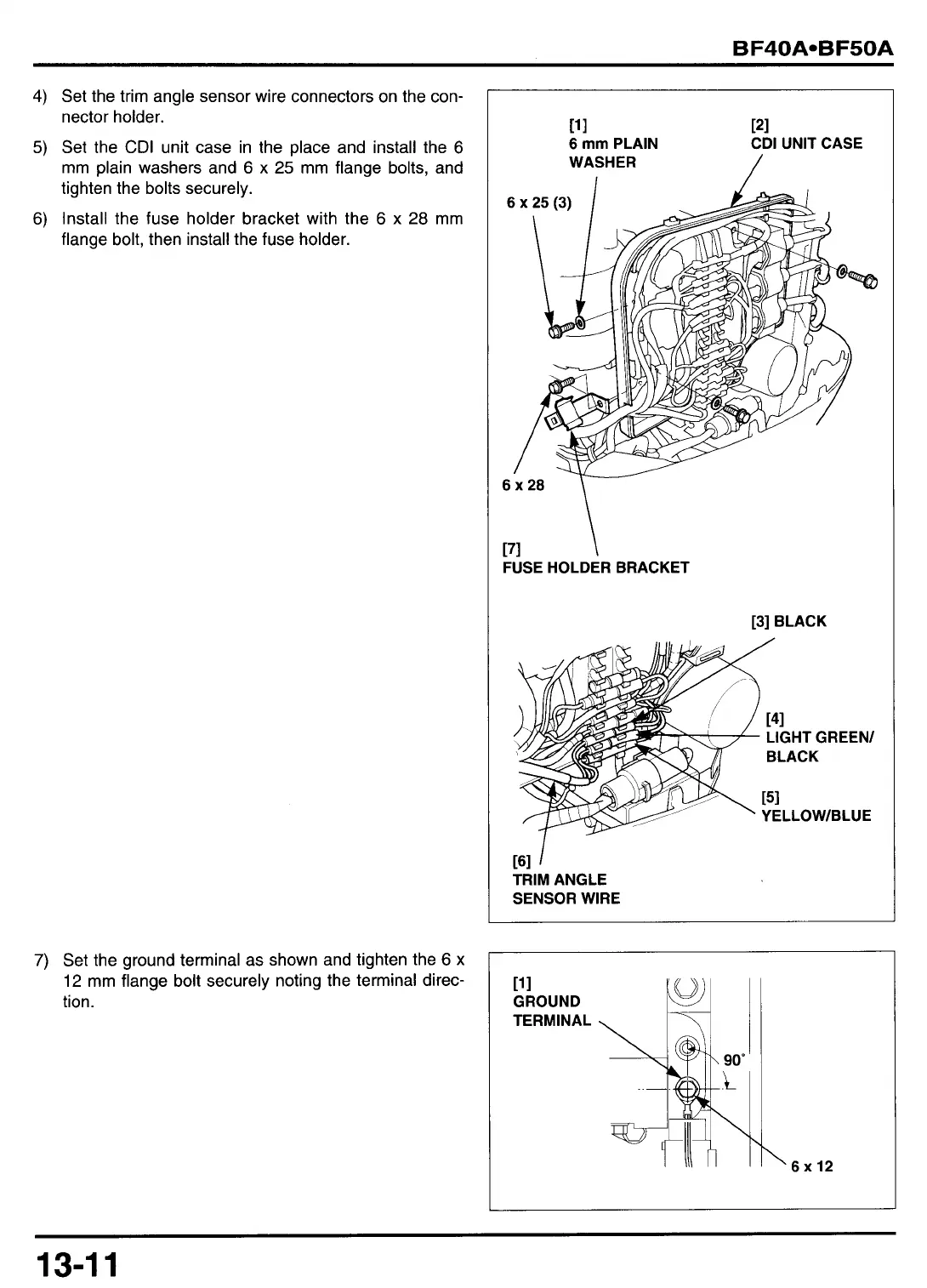

Set the trim angle sensor wire connectors
on
the con-
nector holder.
5)
Set the
CDI
unit case in the place and install the
6
mm
plain washers and
6
x
25
mm
flange bolts, and
tighten the bolts securely.
6)
Install the fuse holder bracket with the
6
x
28
mm
flange bolt, then install the fuse holder.
7)
Set the ground terminal as shown and tighten the 6
x
12
mm
flange bolt securely noting the terminal direc-
tion.
[11
PI
6
mm
PLAIN
WASHER
/
CDI UNIT CASE
[71
\
FUSE HOLDER BRACKET
[3]BLACK
LIGHT GREEN/
YELLOWlBLUE
TRIM ANGLE
SENSOR WIRE
PI
GROUND
TERMINAL
\
‘6x12
13-1
1
