BF40AoBF50A

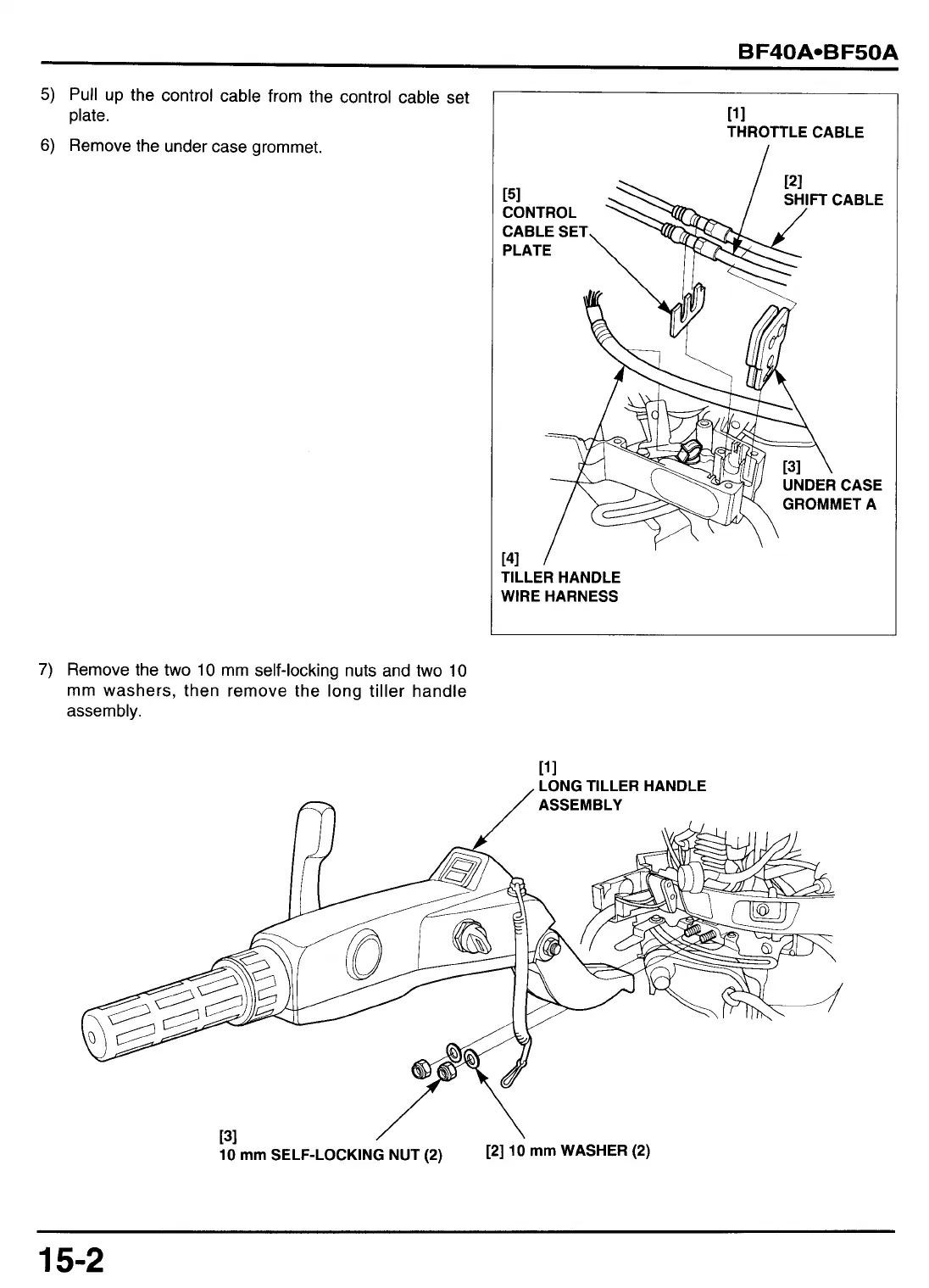

5) Pull up the control cable from the control cable set
plate.
6) Remove the under case grommet.
7) Remove the two 10 mm self-locking nuts and two 10
mm washers, then remove the long tiller handle
assembly.
11 1
THROTTLE CABLE
GROMMET A
[41 I
TILLER HANDLE
WIRE HARNESS
15-2
