Honda BF45A - Page 360

BF40AoBF50A
[4] 6 x 12 mrn
~ BOLTWASHER 151
GROMMET
/
[3] CABLE HOLDER -

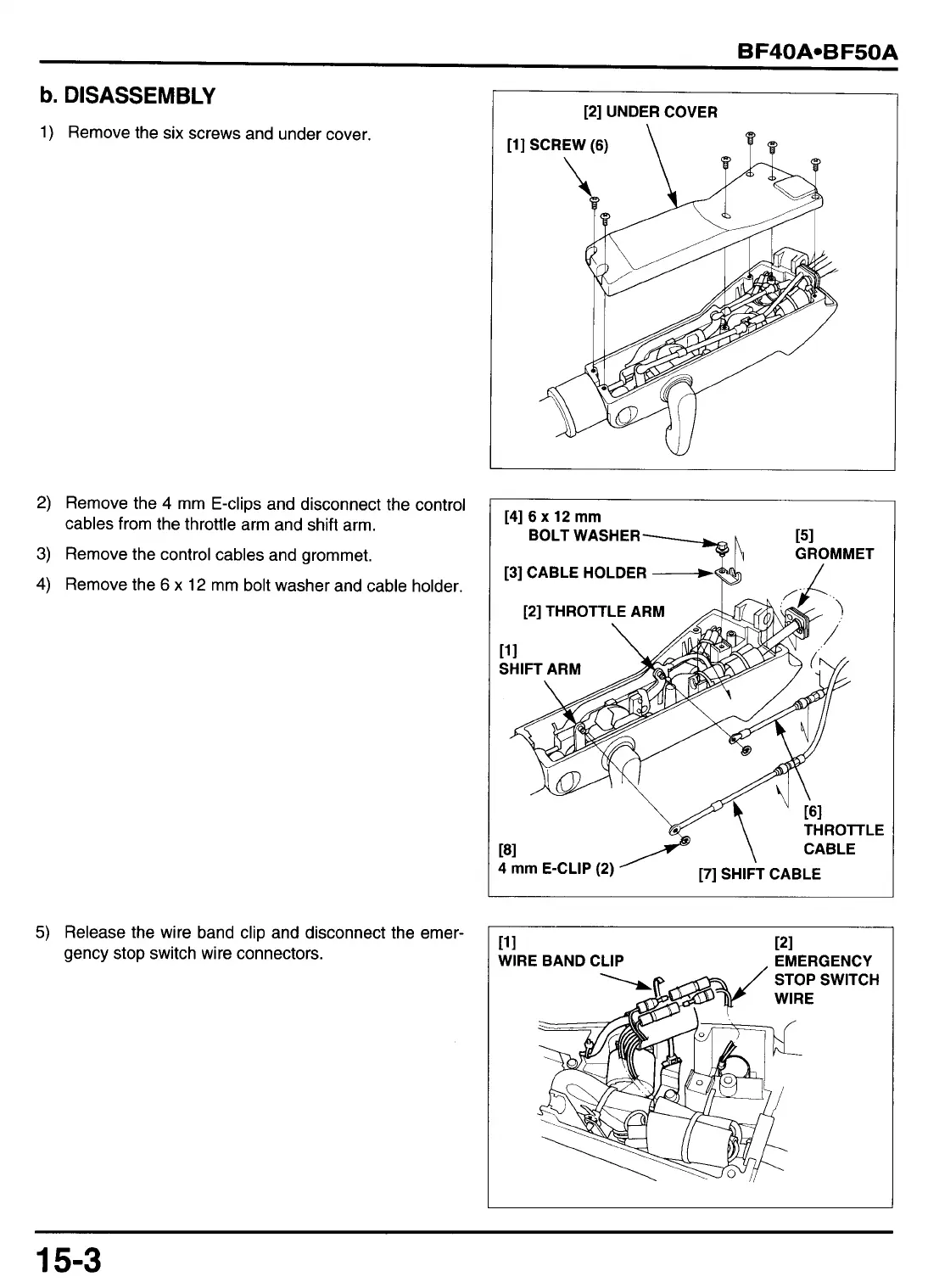

b. DISASSEMBLY
1) Remove the six screws and under cover.
2) Remove the 4 mm E-clips and disconnec the control
cables from the throttle arm and shift arm.
Remove the control cables and grommet.
Remove the
6 x 12 mm bolt washer and cable holder.
I [2] UNDER COVER
SCREW(6)
\ TQ
[2] THROTTLE ARM
A\
y\ ’ FiROnLE CABLE
[81
4 mm E-CLIP (2)
[7] SHIFT CABLE
PI PI
Release the wire band clip and disconnect the emer-
gency stop switch wire connectors.
WIRE BAND CLIP . EMERGENCY
STOP SWITCH
15-3
