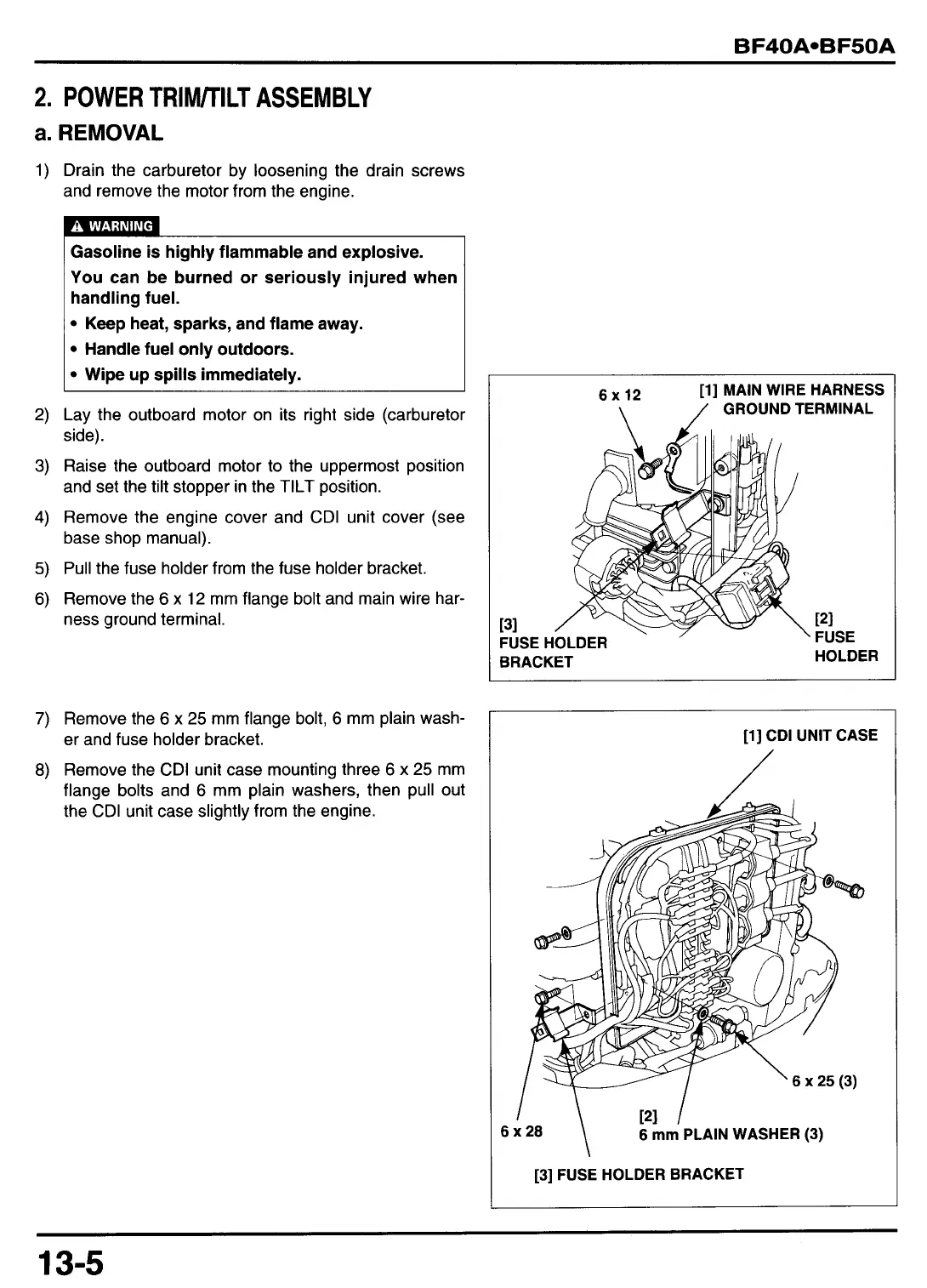

BF40AoBF50A
2.
POWER TRlMITlLT ASSEMBLY
a.
REMOVAL
Drain the carburetor by loosening the drain screws
and remove the motor from the engine.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when
handling fuel.
Keep heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
Lay the outboard motor on its right side (carburetor
side).
Raise the outboard motor
to
the uppermost position
and set the tilt stopper in the
TILT
position.
Remove the engine cover and CDI unit cover (see
base shop manual).
Pull the fuse holder from the fuse holder bracket.
Remove the
6
x
12
mm
flange bolt and main wire har-
ness ground terminal.
Remove the
6
x
25
mm
flange bolt,
6
mm
plain wash-
er and fuse holder bracket.
Remove the CDI unit case mounting three
6
x
25
mm
flange bolts and
6
mm
plain washers, then pull out
the CDI unit case slightly from the engine.
[l]
MAIN WIRE HARNESS
I
6x12
/
GROUND TERMINAL
\
131
FUSE
[l]
CDI UNIT CASE
6i28
\
6
mm
PLAIN WASHER
(3)
[3]
FUSE HOLDER BRACKET
13-5
