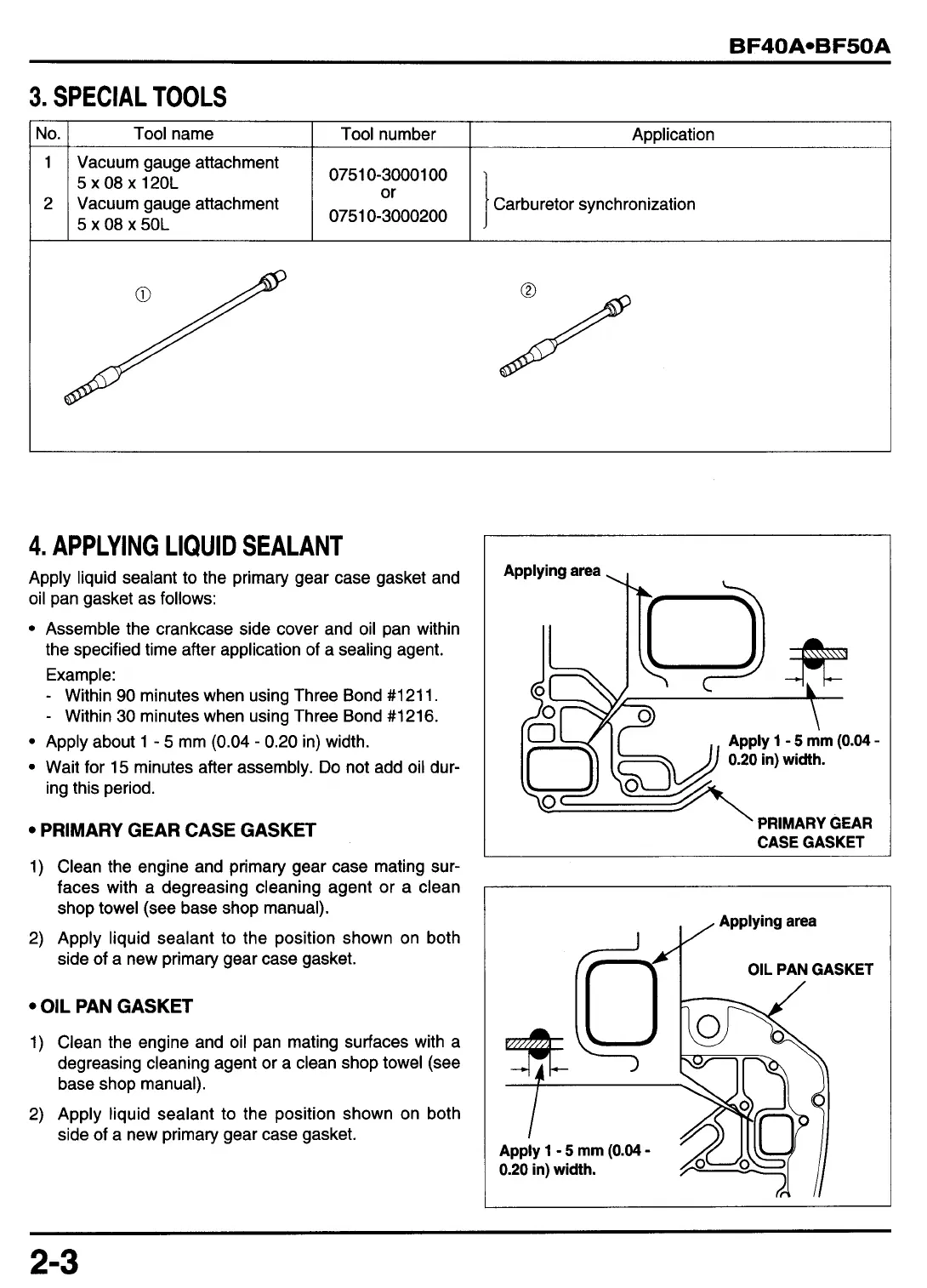

BF40A-BF50A
No.
I
Tool name
I
Toolnumber
3.
SPECIAL TOOLS
Application
1
2
Vacuum gauge attachment
5
x
08
x
120L
Vacuum gauge attachment
5
x
08
x
50L
0751 0-30001
00
or
0751 0-3000200
Carburetor synchronization
4.
APPLYING LIQUID SEALANT
I
Apply liquid sealant to the primary gear case gasket and
oil pan gasket as follows:
Assemble the crankcase side cover and oil pan within
the specified time after application of a sealing agent.
Example:
-
Within
90
minutes when using Three Bond #1211.
-
Within 30 minutes when using Three Bond #1216.
Apply about 1
-
5
mm
(0.04
-
0.20
in) width.
Wait for 15 minutes after assembly.
Do
not add oil dur-
ing this period.
PRIMARY GEAR CASE GASKET
1) Clean the engine and primary gear case mating sur-
faces with
a
degreasing cleaning agent or a clean
shop towel (see base shop manual).
2)
Apply liquid sealant to the position shown on both
side of a new primary gear case gasket.
OIL
PAN GASKET
1) Clean the engine and oil pan mating surfaces with a
degreasing cleaning agent or a clean shop towel (see
base shop manual).
2)
Apply liquid sealant to the position shown on both
side of a new primary gear case gasket.
Applying
area
,
,
Apply
1
-
5
mm
(0.04
-
0.20
in) width.
PRIMARY GEAR
CASE GASKET
Applying
area
OIL
PAN GASKET
7?L
LJ
I
Apply
1
-
5
mm
(0.04
-
0.20
in) width.
