BF40AoBF50A

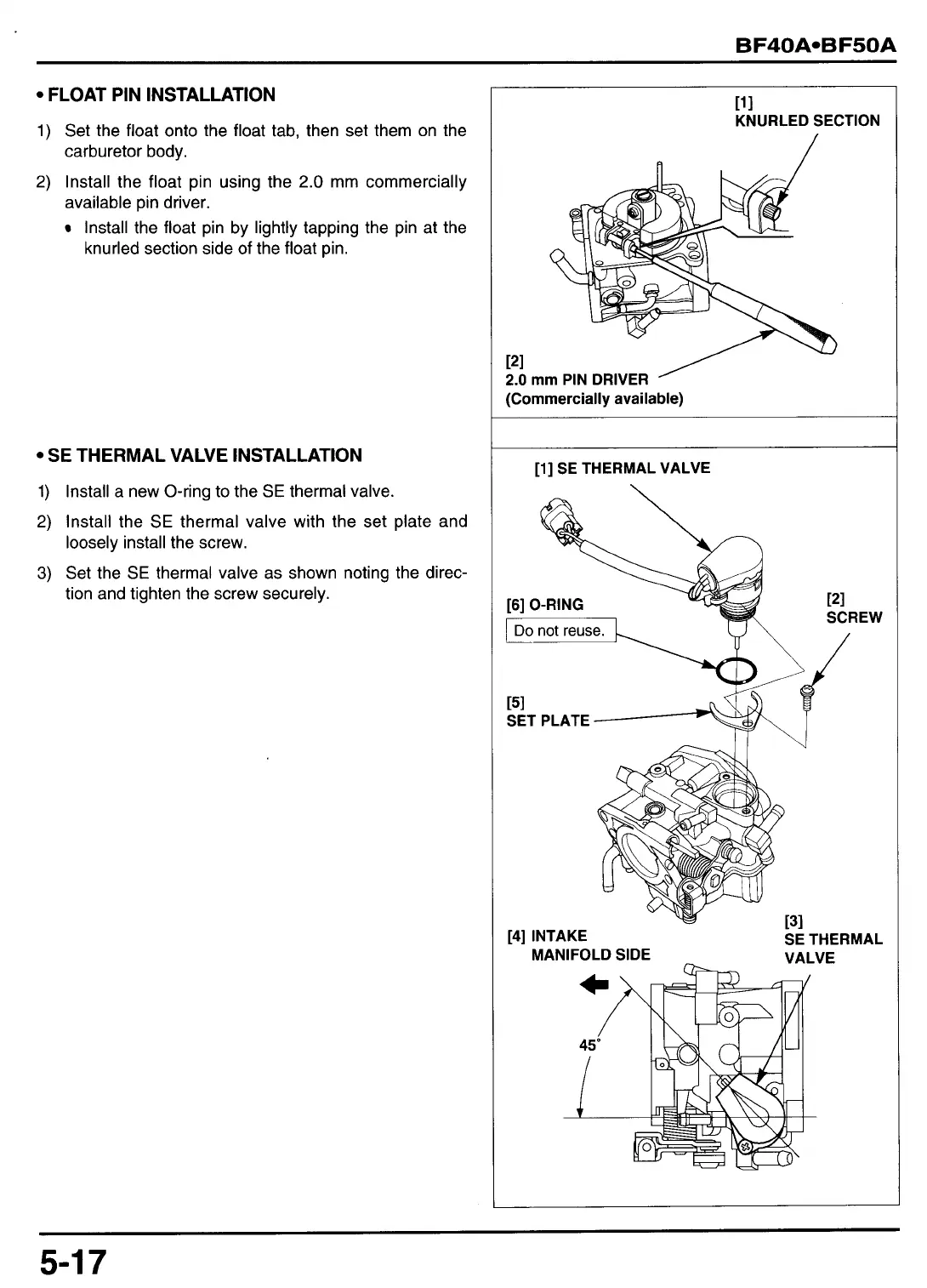

FLOAT PIN INSTALLATION
1)
Set the float onto the float tab, then set them on the
carburetor body.
2)
Install the float pin using the
2.0
mm commercially
available pin driver.
Install the float pin by lightly tapping the pin at the
knurled section side of the float pin.
SE THERMAL VALVE INSTALLATION
1)
Install a new O-ring to the
SE
thermal valve.
2)
Install the
SE
thermal valve with the set plate and
loosely install the screw.
3)
Set the
SE
thermal valve as shown noting the direc-
tion and tighten the screw securely.
11
1
KNURLED SECTION
2.0
mm
PIN
DRIVER
’
(Commercially available)
[l]
SE THERMAL VALVE
EW
[4]
INTAKE
kE
THERMAL
MANIFOLD SIDE VALVE
5-1
7
