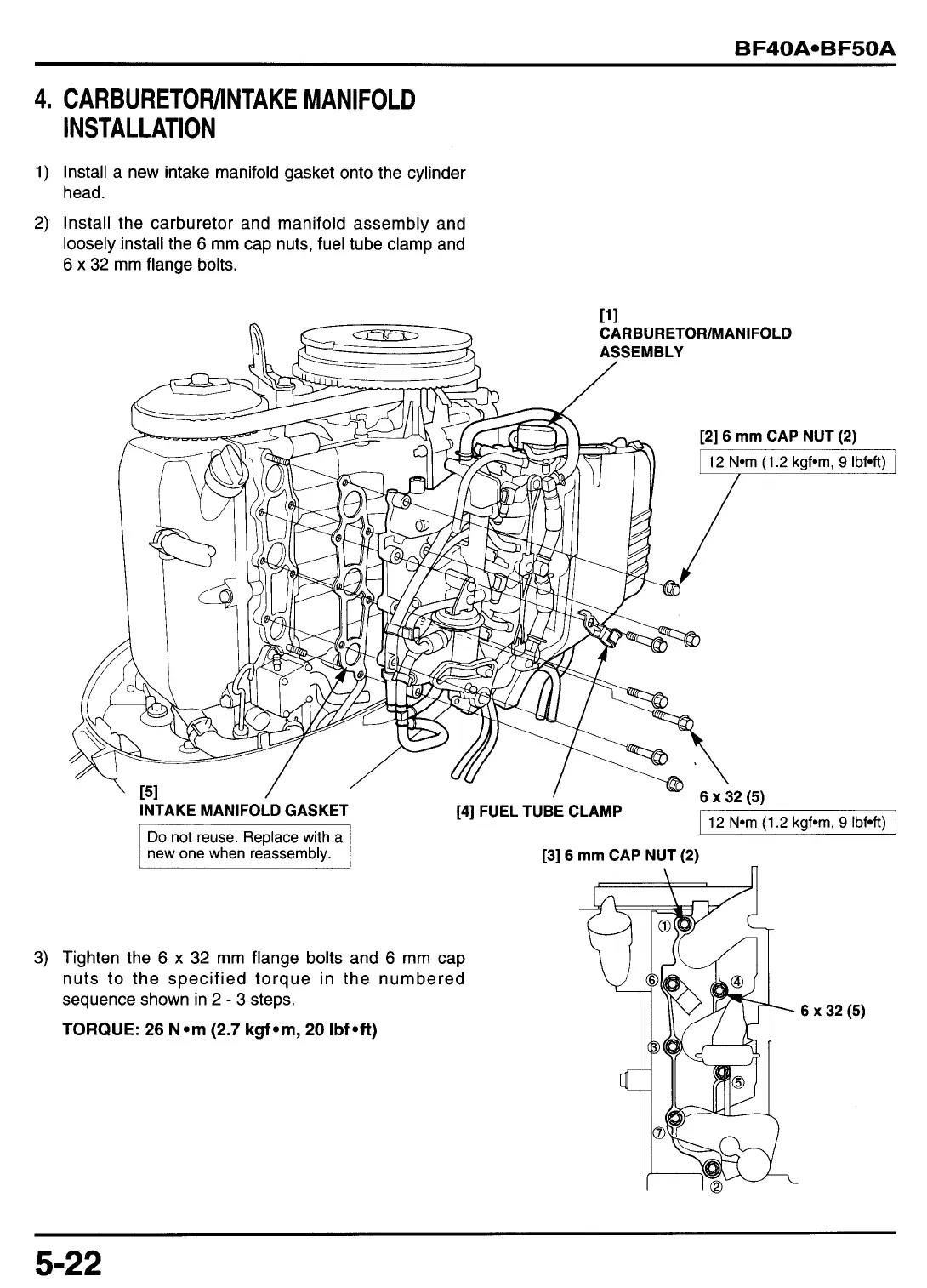

CARBURETOWINTAKE MANIFOLD
INSTALLATION
Install a new intake manifold gasket onto the cylinder
head.
Install the carburetor and manifold assembly and
loosely install the
6 mm cap nuts, fuel tube clamp and
6
x 32 mm flange bolts.
1
CARBURETORlMANlFOLD
12 N*m (1.2 kgf*m, 9 Ibf*ft)
INTAKE MANIFOLD GASKET
[4] FUEL TUBE CLAMP
Tighten the 6 x 32 mm flange bolts and 6 mm cap
nuts to the specified torque in the numbered
sequence shown in 2
- 3 steps.
TORQUE: 26 N *m (2.7 kgf em, 20 Ibf Oft)
6 x 32 (5)
5-22
