42

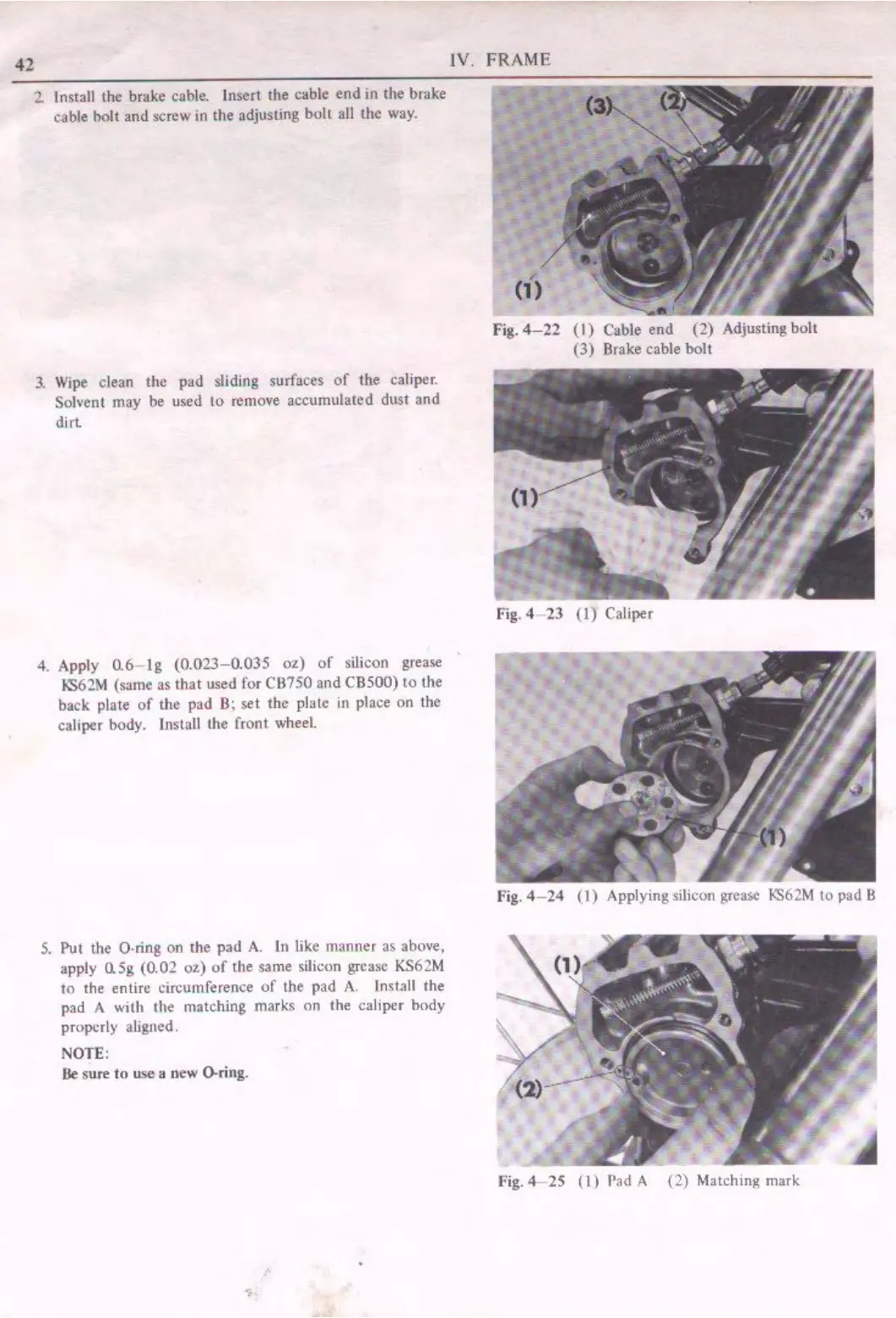

2 Install the brake cable. Insert the cable end
in
the brake
cable holt and screw in tlte adjusting boll
all tltc way.
1
Wipe
clean the pad sliding surfaces
of
the caliper.
Solvent may be used lo remove accumulated dust and
dirt
4. Apply 0.6-
lg
(0.023-0.035
o,)
of
silicon grease
K%2M
(same as that used for CU750 and CBS00) to the
back plate
of
the pad
B;
set the plate in place on the
caliper body. Install the front wheel.
S.
Put the
O,ring
on the pad
A.
lo like manner as above,
apply
llSg
(0.02 oz)
of
the same silicon grease
KS62M
to the entire circumference
of
the pad
A.
Install the
pad A with the matching marks on the ca
li
per body
properly aligned.
NOTE:
De
sure
to
use a new 0-ring.
.•
••
IV.
FRAME
,
(1)
Fig.
4-22
(I)
Cable end
(2)
Adjusting bolt
(3)
Brake cable bolt
fig. 4-
23
(1) Caliper
Fig.
4
-2
4
(I)
Applying silicon
grease
!(S62M
to pad B
Fig.
4-25
(
l)
Pad A (2) Matching mark
