Honda CB550 - Page 3

2

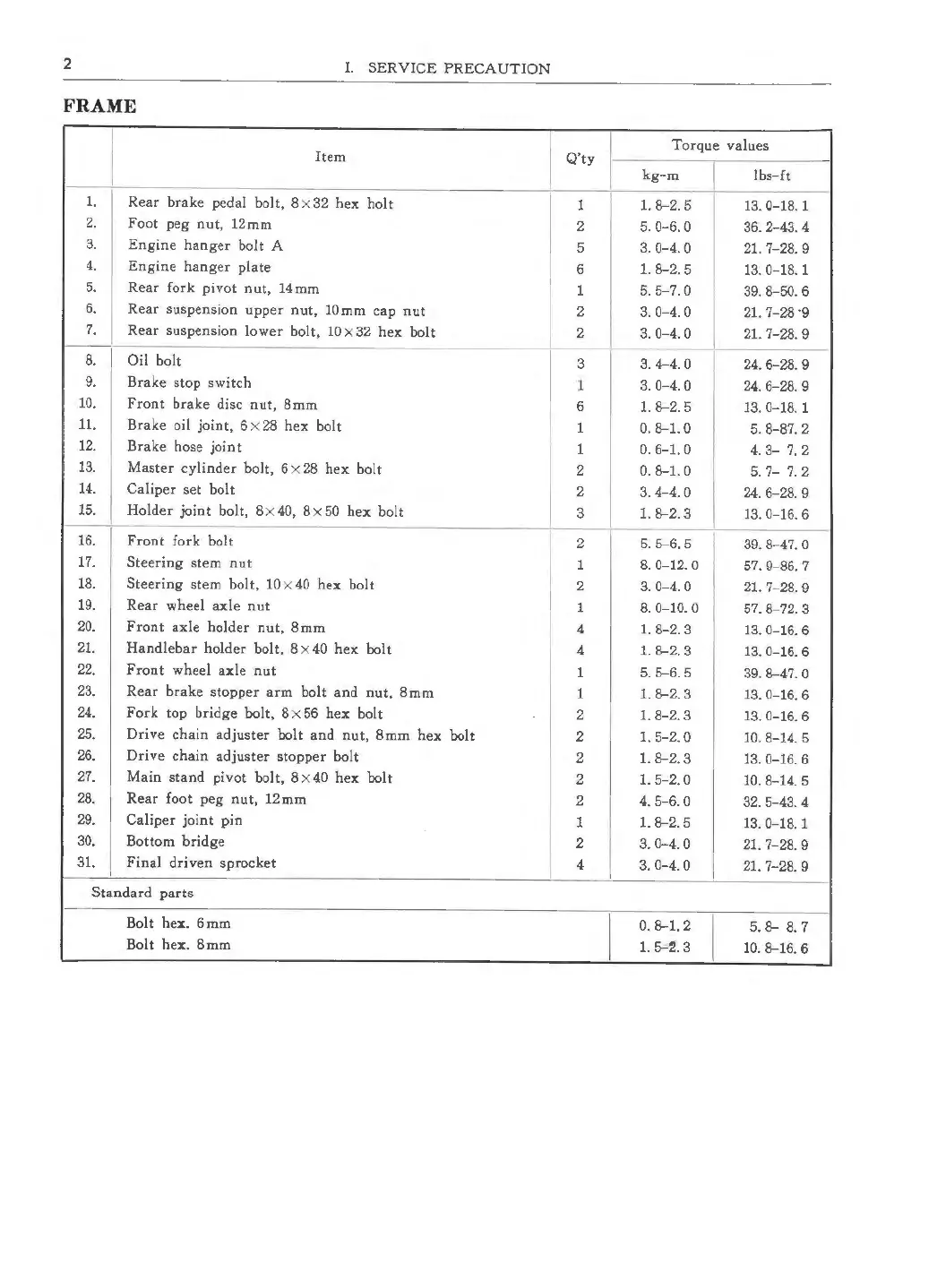

I. SERVICE PRECAUTION
FRAME
_L
Torque values
Item
Q'ty
I
kg- m lbs- ft
1.
Rear brake pedal bolt, 8x 32 hex holt
1 1. 8-2. 5
13.0-18.1
2.
Foot peg nut, 12mm
2 5.0 -6.0
36.2 -43.4
3.
Engine hanger bolt A
5 3.0 -4.0 21. 7-28. 9
4.
Engine hanger plate
6
1. 8-2. 5 13.0-18.1
5.
Rear fork pivot nut, 14mm
1
5.5-7.0
39.8-50.6
6.
I
Rear suspension upper nut, 10mm cap nut
2 3.0-4.0
I
21. 7-28 ·9
7.
Rear suspension lower bolt, 10 x 32 hex bolt
2 3.0-4.0
21. 7-28. 9
8. Oil bolt
3
3.4-4.0
24.6-28.9
9.
Brake stop switch
1
3.0-4.0
24.6-28.9
10.
Front brake disc nut, 8mm
6
1. 8-2. 5
13.0-18. 1
11.
Brake oil joint, 6 X 28 hex bolt
1 0. 8-1. 0
5.8-87.2
12. Brake hose joint
1 0. 6- 1. 0
4.3- 7. 2
13.
Master cylinder bolt, 6 x 28 hex bolt
2
0. 8-1. 0 5. 7- 7.2
14.
Caliper set bolt
2 3.4-4.0
24.6-28.9
15.
Holder joint bolt, 8 x 40, 8 x 50 hex bolt
3 1. 8-2. 3 13.0-16.6
,_
16. Front fork bolt
2
5.5-6.5
39.8 -47.0
17.
Steering stem nut
1 8.0-12.0
57.9-86. 7
18. Steering stem bolt, 10
X 40 hex bolt
2 3.0-4.0
21. 7-28. 9
19. Rear wheel axle nut
1 8.0-10.0
57.8-72.3
20.
Front axle holder nut, 8mm
4 1. 8-2. 3
13.0-16.6
21.
Hand lebar holder bolt, 8x 40 hex bolt
4
1. 8-2. 3
13.0- 16.6
22. Front wheel axle nut
1
5.5-6.5
39.8-47.0
23. Rear brake stopper arm bolt and nut, 8mm
1 1. 8-2. 3
13.0-16.6
24. Fork top bridge bolt, 8 x 56 hex bolt
2 1. 8-2. 3
13.0- 16.6
25. Drive chain adjuster bolt and nut, 8mm hex bolt
2 1. 5-2. 0
10.8-14.5
26. Drive chain adjuster stopper bolt
2 1. 8-2. 3
13.0-16.6
27.
Main stand pivot bolt, 8x40 hex bolt
2
1. 5-2. 0
10.8-14.5
28. Rear foot peg nut, 12mm
2 4.5-6.0
32.5-43.4
29. Caliper joint pin
1
1. 8-2. 5
13.0-18.1
30. Bottom bridge
2 3.0- 4.0
21. 7-28. 9
31. Final driven sprocket
4 3.0 - 4.0
21. 7-28. 9
Standard parts
Bolt
hex. 6mm
I
0. 8-1. 2
I
5.8- 8. 7
Bolt hex . 8mm
1.5-2.3
10.8-16.6
