4. ENG INE
53
13. Install the special advance r washer with
the 6 mm bolt, and instaH the point
cover.
14. Mount the · generator rotor with the
10 mm bolt.
15. Install the generator cover.
15. Assemble the piston, cylinder, cylinder
head, and head cover in accordance with
section 3. C.
10. TRANSMISSION, KICK STARTER
AND PRIMARY SHAFT
A. Disassembly
1. Dismount the engine from the frame in
accordance with section 2. A.
2. Remove the clutch in accorda nce with
section 6.
A.
3. Separate the upper and lower crankcase
in accordance with section 9.
A.
4. Remove the transmission and disassemble
the gears from the respective shafts.
I Kick Starter I
5. Remove the 18mm snap rmg and the
return spring .
6. Remove the 12 mm snap rmg and dis-
assemble the kick starter shaft from the
lower crankcase.

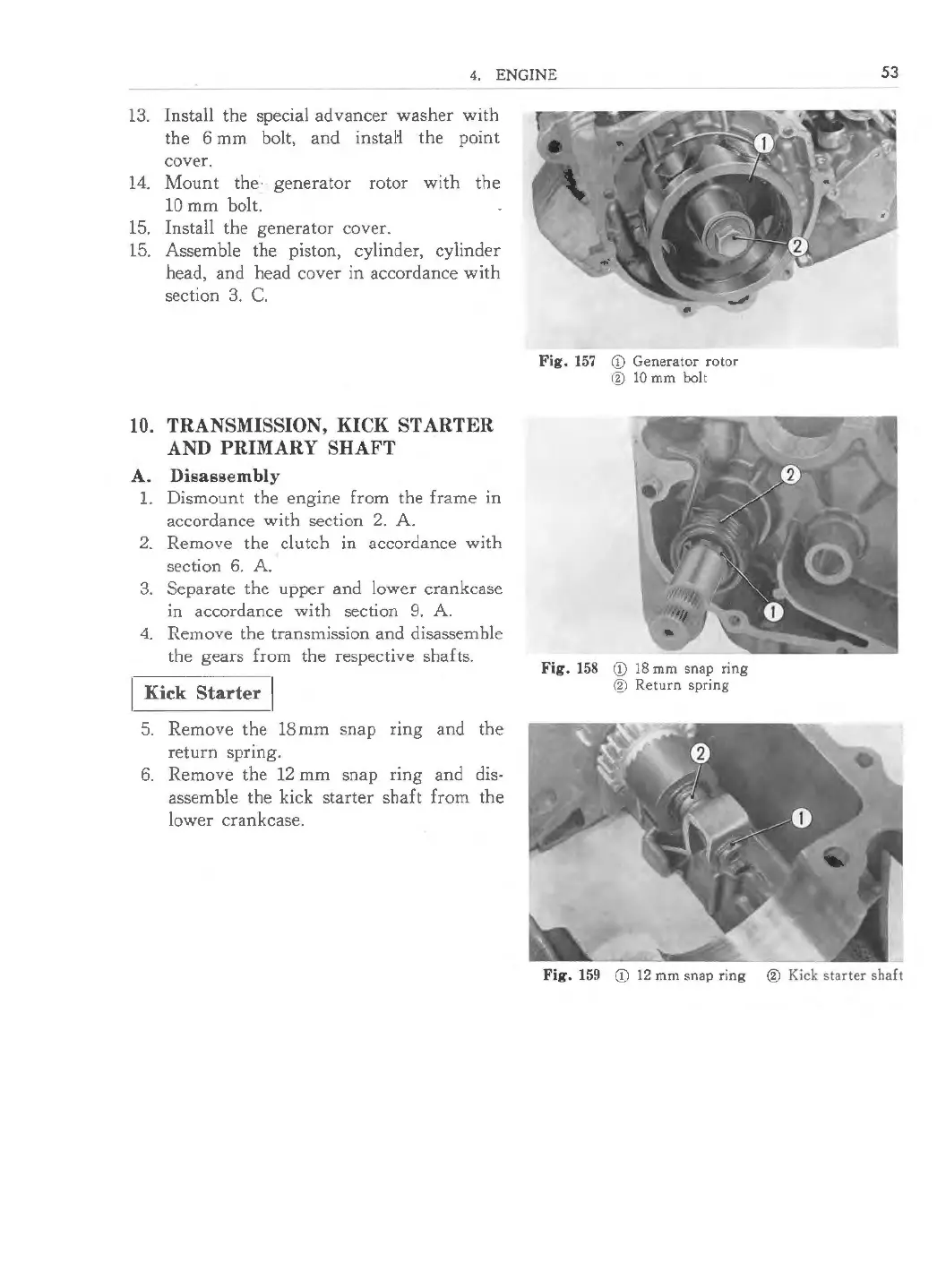

Fig. 157 CD Generator rotor
® 10 mm bolt
Fig. 158 CD 18 mm snap ring
@ Return spring
Fig. 159 CD 12 mm snap ring @ Kick star ter shaft
