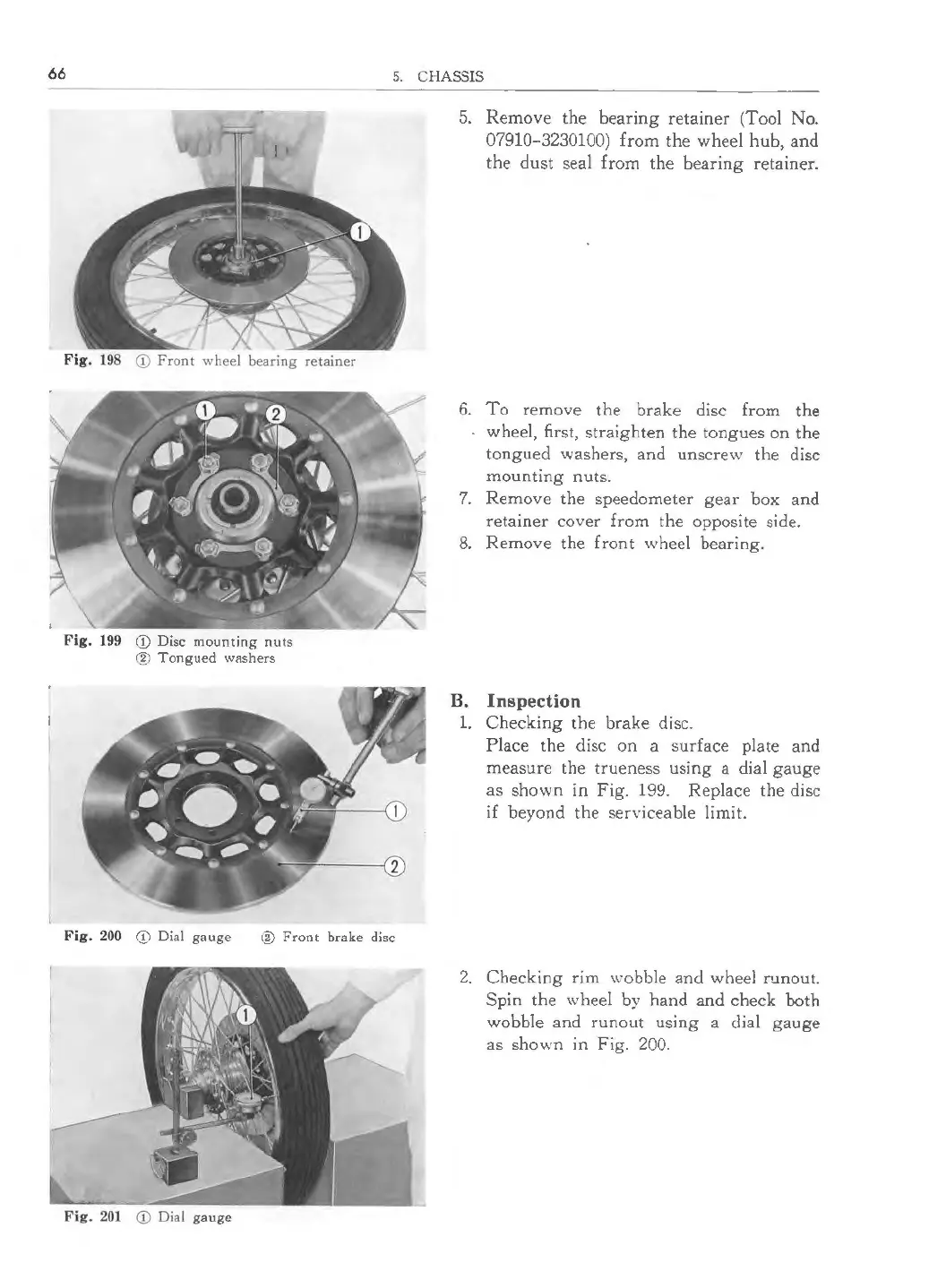

66
5. CHASSIS
Fig. 198 CD Front wheel bearing retainer
Fig. 199 CD Disc mounting nuts
® Tongued washer s
Fig. 200 CD Dial gauge
® Front brake disc
Fig. 201 CD Dial gauge
5. Remove the bearing retainer (Tool No.
07910- 3230100) from the wheel hub, and
the dust seal from the bearing retainer.
6. To remove the brake disc from the
wheel, first, straighten the tongues on the
tongued washers, and unscrew the disc
mounting nuts.
7. Remove the speedometer gear box and
retainer cover from the opposite side.
8. Remove the front wheel bearing.
B. Inspection
1. Checking the brake disc.
Place the disc on a surface plate and
measure the trueness using a dial gauge
as shown in Fig. 199. Replace the disc
if beyond the serviceable limit.
2. Checking rim wobble and wheel runout .
Spin the wheel by hand and check both
wobble and runout using a dial gauge
as shown in Fig. 200.
