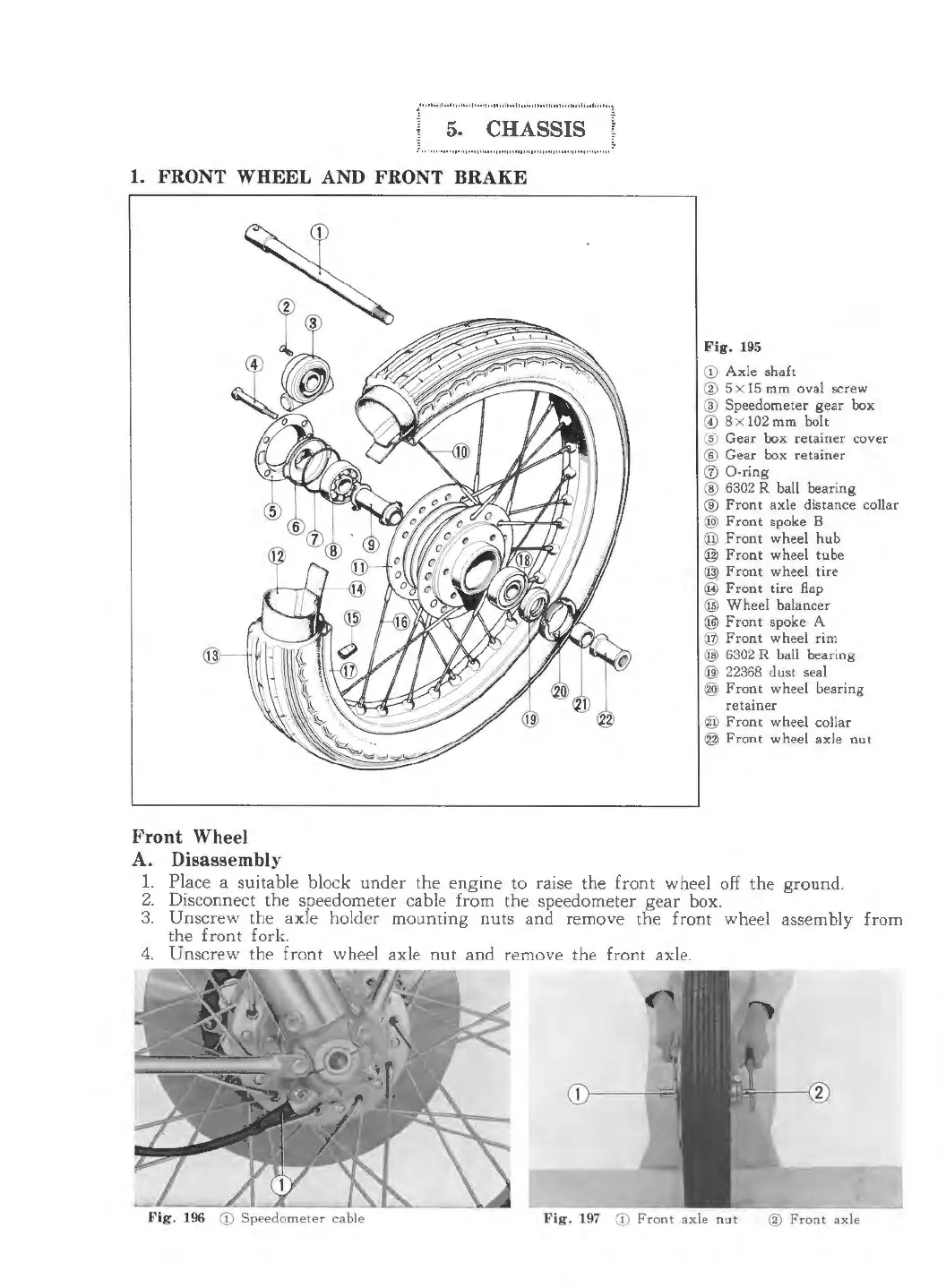

Honda CB550 - FRONT WHEEL AND FRONT BRAKE; Front Wheel

1. FRONT WHEEL AND FRONT BRAKE
Front Wheel
A. Disassembly
Fig. 195
(D
Axle shaft
® 5 x 15 mm oval screw
@ Speedometer gear box
© Bx 102 mm bolt
(§) Gear box retainer cover
® Gear box retainer
® 0-ring
® 6302 R ball bearing
® Front axle distance collar
@ Front spoke B
@ Front wheel hub
@ Front wheel tube
@) Front wheel tire
® Front tire flap
@ Wheel balancer
@ Front spoke A
@ Front wheel rim
@ 6302 R ball bearing
@ 22368 dust seal
@ Front wheel bearing
retainer
@ Front wheel collar
@ Front wheel axle nut
1. Place a suitable block under the engine to raise the front wheel off the ground.
2. Disconnect the speedometer cable from the speedometer gear box.
3. Unscrew the axle holder mounting nuts and remove the front wheel assembly from
the front fork.
4. Unscrew the front wheel axle nut and remove the front axle.
(D Speedometer cable
Fig. 197 (D Front axle nut
® Front axle
