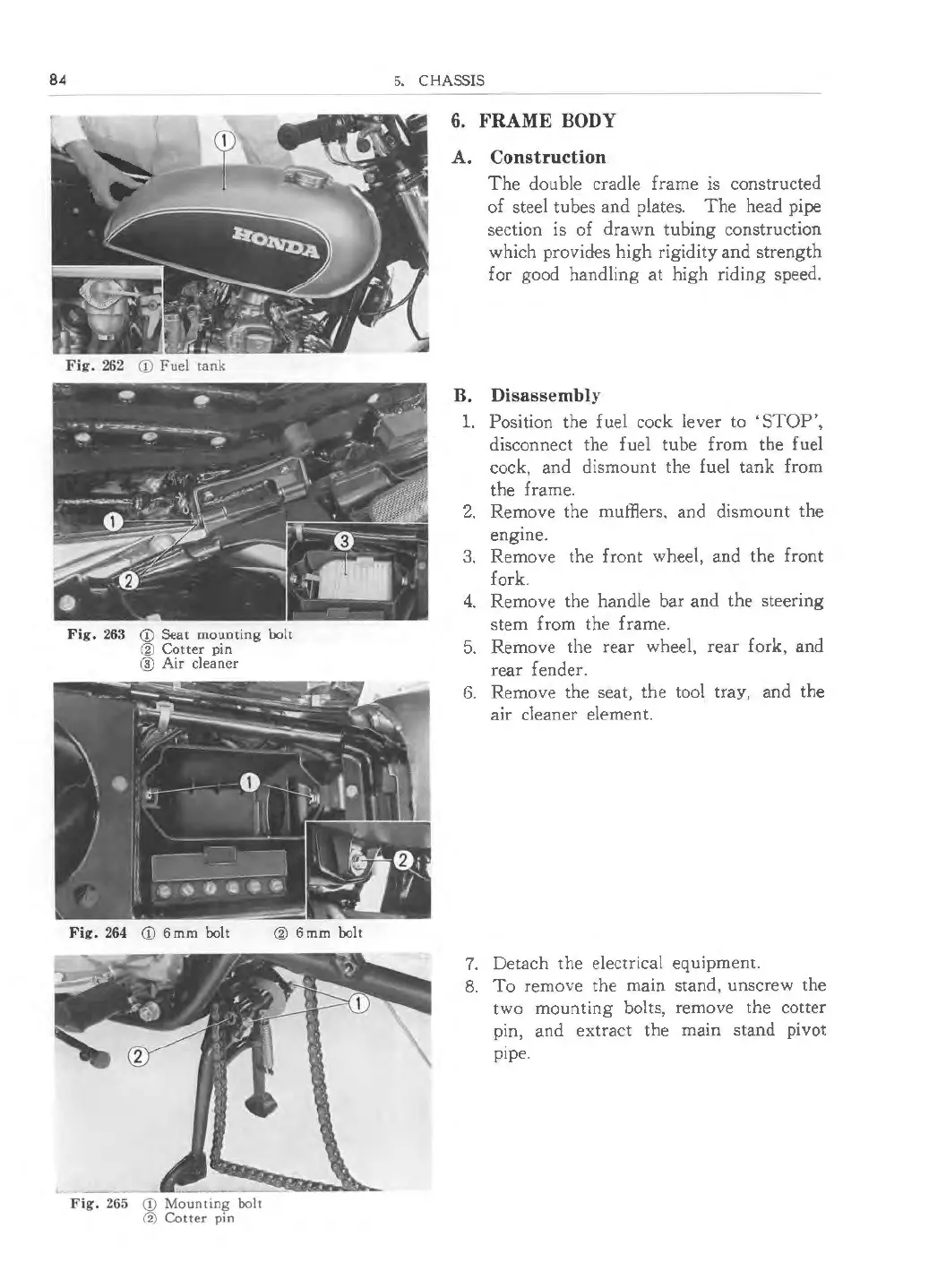

84
Fig. 262 CD Fuel tank
Fig. 263 CD Seat mounting bolt
® Cotter pin
® Air cleaner
Fig. 264 CD 6mm bolt
Fig. 265 CD Mounting bolt
(2) Cotter pin
® 6mm bolt
5. CHASSIS
6. FRAME BODY
A. Construction
The double cradle frame is constructed
of steel tubes and plates. The head pipe
section is of drawn tubing construction
which provides high rigidity and strength
for good handling at high riding speed.
B. Disassembly
1. Position the fuel cock lever to 'STOP',
disconnect the fuel tube from the fuel
cock, and dismount the fuel tank from
the frame.
2. Remove the mufflers, and dismount the
engme.
3. Remove the front wheel, and the front
fork.
4. Remove the hand le bar and the steering
stem from the frame.
5. Remove the rear wheel, rear fork, and
rear fender.
6. Remove the seat, the tool tray, and the
air cleaner element.
7. Detach the electrical equipment.
8. To remove the main stand, unscrew the
two mounting bolts, remove the cotter
pin, and extract the main stand pivot
pipe.
