Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both adjusting
bolts.
20161220114015_32MJED100_eng_BOOK Page 75 Tuesday, December 20 2016 11:43:47 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
72

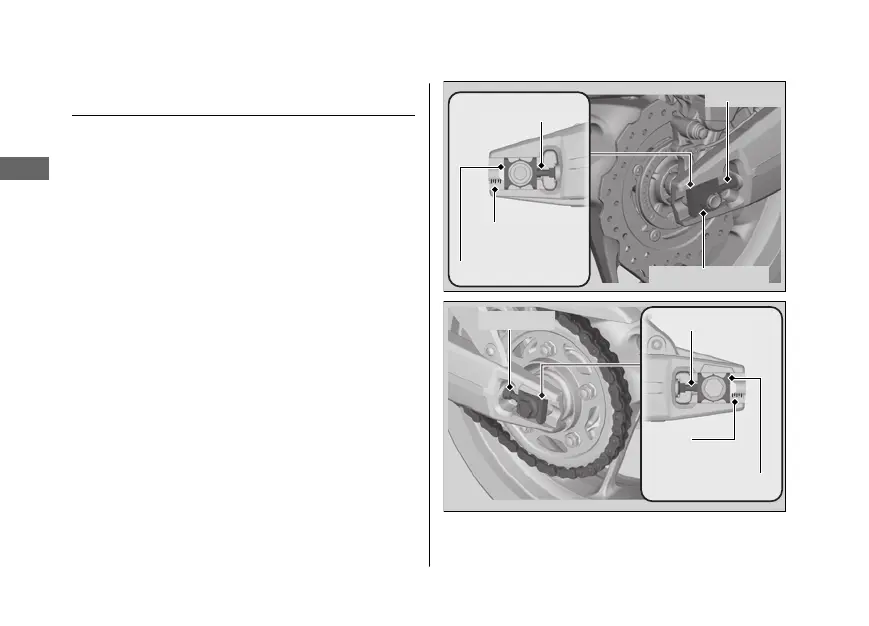

Adjusting bolt
Scale
graduations
Adjusting plate
Rear axle nut
Lock nut
Adjusting bolt
Scale
graduations
Adjusting plate
Lock nut
To Next Page
