Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.

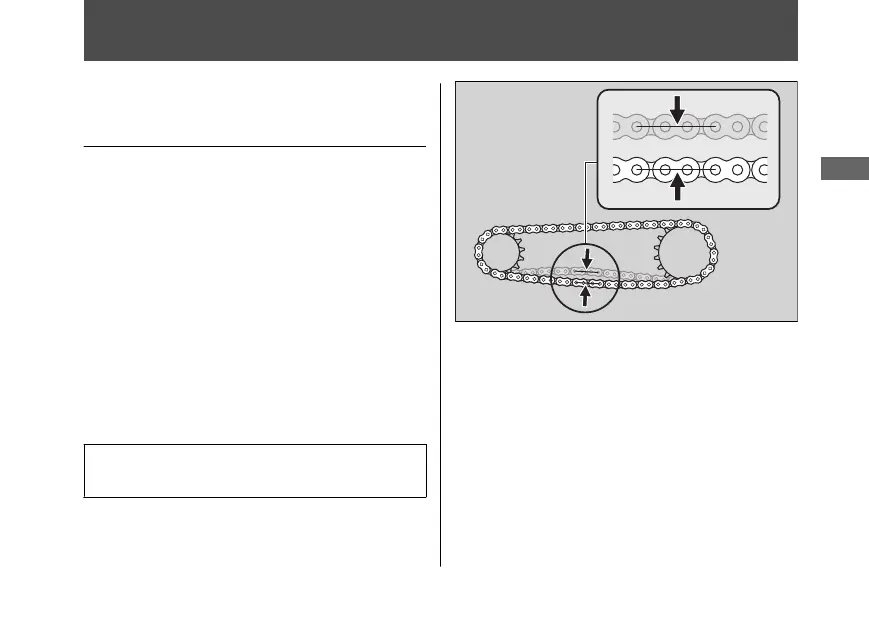

Check the slack in the lower half of the
drive chain midway between the
sprockets.
Drive chain slack:
25 - 35 mm (1.0 - 1.4 in)
u Do not ride your motorcycle if the
slack exceeds 50 mm (2.0 in).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 52
6.
Clean and lubricate the drive chain.
2 P. 53
20161220114015_32MJED100_eng_BOOK Page 74 Tuesday, December 20 2016 11:43:47 JST
Maintenance
71
