Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the index mark on the
adjusting plate enters the red zone on the
label after the chain has been adjusted to the
proper slack, the chain is excessively worn
and must be replaced.
Chain:
DID 525V11
or RK 525KRW
If necessary have the drive chain replaced by
your dealer.
Checking the Drive Chain Slider
Check the condition of the drive chain slider.
The drive chain slider will need to be
replaced if the chain slider is worn to the
wear limit line.
If necessary have the drive chain slider
replaced by your dealer.
20161220114015_32MJED100_eng_BOOK Page 77 Tuesday, December 20 2016 11:43:47 JST
Drive Chain u Checking the Drive Chain Slider
Maintenance
74

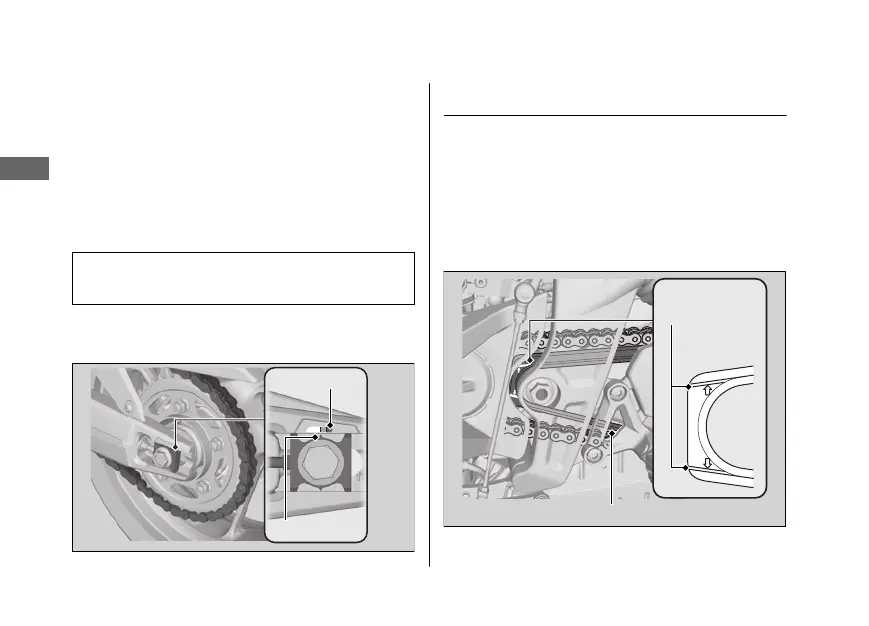

Index mark
Red zone
Wear limit
line
Drive chain slider
