Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Loosen the upper lock nut.
2.
Turn the upper clutch cable adjuster until
the freeplay is 10 - 20 mm (0.4 - 0.8 in).
3.
Tighten the upper lock nut and check the
freeplay again.
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
20161220114015_32MJED100_eng_BOOK Page 79 Tuesday, December 20 2016 11:43:47 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
76

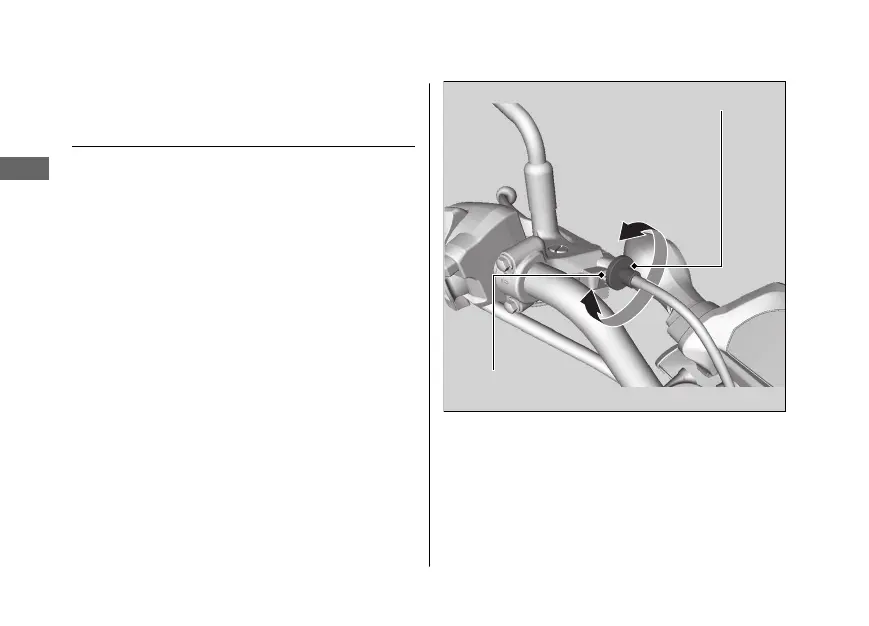

Upper clutch cable
adjuster
Upper lock nut
+
-
To Next Page
