Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
Loosen the rear axle nut, lock nuts and
turn the adjusting bolts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3.
Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
4.
Remove the rear axle nut and washer.
5.
Remove the rear axle shaft and adjusting
plates.
20161220114015_32MJED100_eng_BOOK Page 96 Tuesday, December 20 2016 11:43:47 JST
Tyre Puncture u Removing Wheels
Troubleshooting
93
Continued

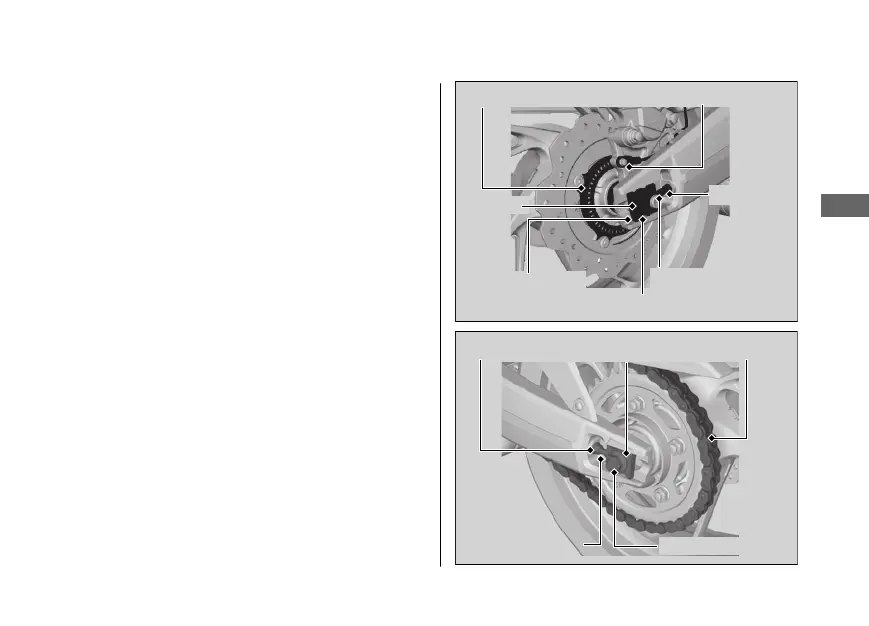

Lock nut
Washer
Wheel speed sensor
Adjusting bolt
Rear axle nut
Adjusting plate
Pulser ring
Lock nut
Rear axle shaft
Adjusting plate Drive chain
Adjusting bolt
To Next Page
