Honda GCV160 User Manual

106
2009.01.10 E
E-22

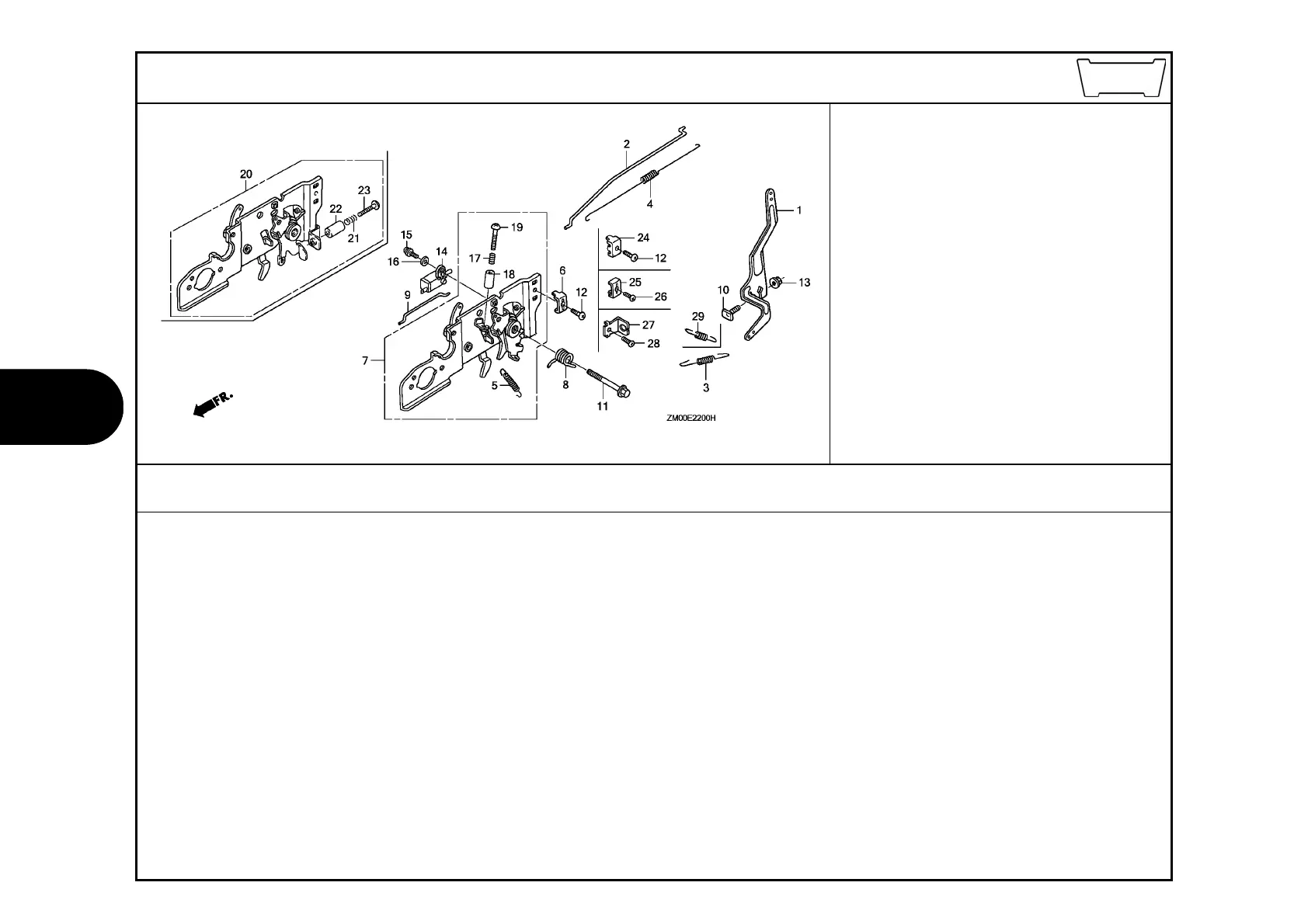

CONTROL(1)
2
11 90016-ZM0-000 BOLT, FLANGE, 6X45(CT200) ••• 1 1 1 1 - 1 1 -------- -------- A1A,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7,A1G9,A1J,A1M
A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E,A2E4,A2E7,A2E8
A2E9,A2G4,A2G7,A2G9,A2U,A3E,A3E7,A3E9,A3G9,A3T9
A3W7,A3W8,A4E,A4G4,A4G7,A4G9,A7E1,BHH,BHH1,C1E
C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1G7,E2G7
NBL1,N1,N1D,N1E1,N1E2,N1E7,N1J1,N1R,N1T8,N1T9,N1U
N1W,N1W1,N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E,N2E1,N2E2
N2E3,N2E7,N2E8,N2E9,N2U,N3T8,N3T9,N3U,N3V,N3W8
N3W9,N7A1,N7S1,S1E1,S1G4,S2E,S2E1,S2E2,S2E3,S2G7
S3E9,S3G9,S4E4,S4E9,S4G4,S4G9
- - - - 1 - -
12 93500-05016-0A SCREW, PAN, 5X16 •••••••••••• 1 1 1 1 - 1 1 -------- -------- A1A,A1AW,A1C,A1E,A1E7,A1E8,A1G7,A1G9,A1J,A1M,A1P
A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E,A2E4,A2E7,A2E8,A2E9
A2G4,A2G7,A2G9,A2U,A3E,A3E7,A3E9,A3G9,A3T9,A3W7
A3W8,A4E,A4G4,A4G7,A4G9,A7E1,C1E,C1E1,C2E,C2E1,C3E
C3E1,C4E,C4E1,E1G7,E2G7,NBL1,N1,N1D,N1E1,N1E2,N1E7
N1J1,N1R,N1T8,N1T9,N1U,N1W,N1W1,N1W2,N1W7,N1W8
N1W9,N2,N2D,N2E,N2E1,N2E2,N2E3,N2E7,N2E8,N2E9,N2U
N3T8,N3T9,N3U,N3V,N3W8,N3W9,N7A1,N7S1,S1G4,S2E2
S2E3,S3E9,S3G9,S4E4,S4E9,S4G4,S4G9
- - - - 1 - -
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
I 3

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
