Honda GCV160 User Manual

74
2009.01.10 E
2
E-14

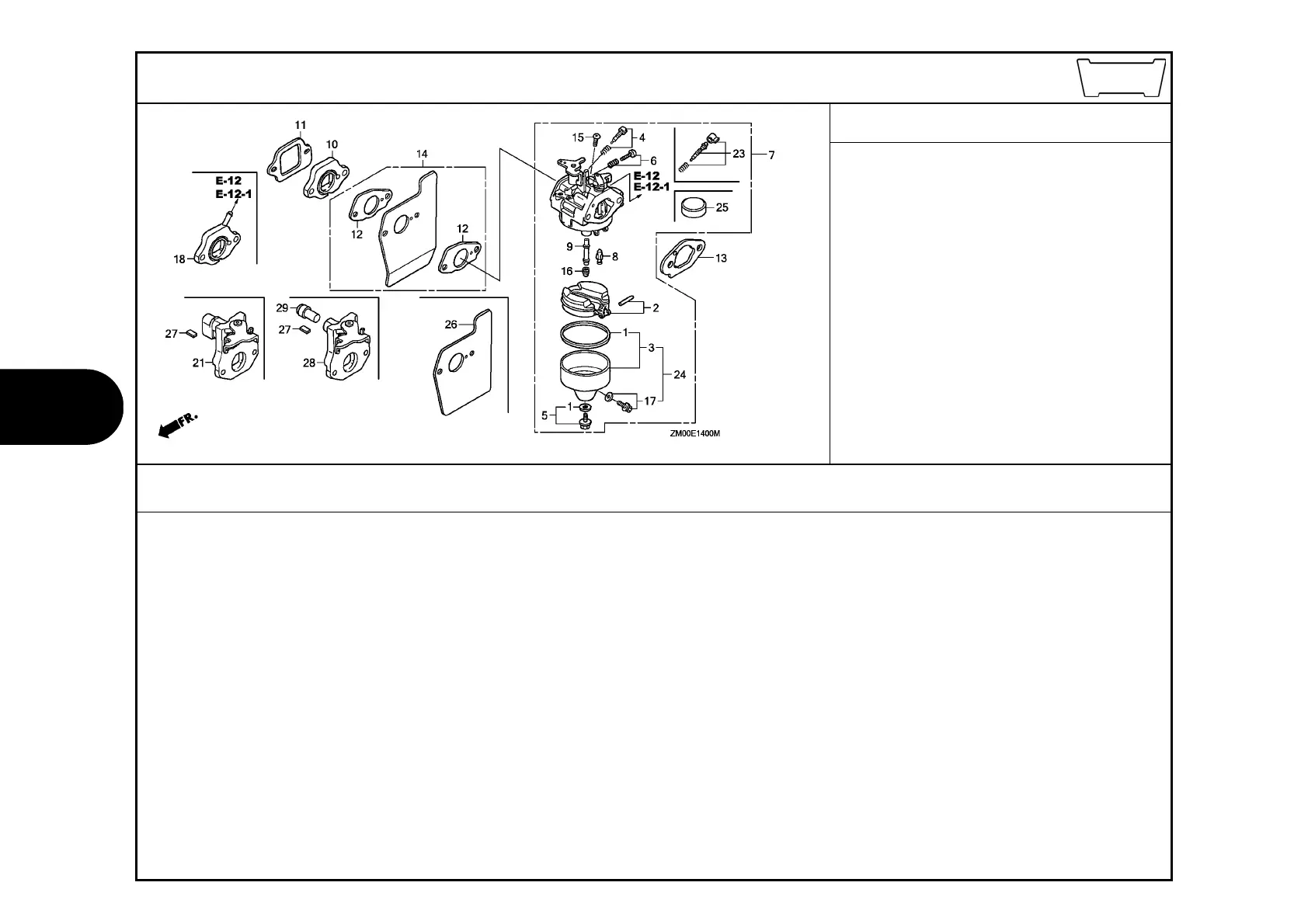

CARBURETOR
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
1 16010-883-015 PACKING SET ••••••••••••••••• 1 1 1 1 1 1 1
2 16013-ZL1-003 FLOAT SET ••••••••••••••••••• 1 1 1 1 1 1 1
3 16015-892-015 CHAMBER SET, FLOAT ••••••••••
(CARBURETOR NO.) 1 - - - - - - -------- BB62A C A1E,A1J,A1P,A1U,A2E,A2U,A3E,A4E,N1,N1D,N1E1,N1E2
N1U,N1W,N2,N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V
, , 1 - - - - - - -------- BB62B C A1A,A1C,A2A,A2C
16015-887-782 ••••••••••••••••••••••••••••
(CARBURETOR NO.) - - - - 1 1 - -------- BB62W A A1A,A2A9,A2R,A4A9,BHH,E1A2,N1A
, , - - - - 1 1 - -------- BB62Y A N7A1,N7S1
, , - - - - - 1 - -------- BB62Z A R3A,S1A,S3A
, , - - - - - 1 - -------- BB65A A A1AF,N1AF,N5AF,N5MF,N5R
, , - - - - - 1 - -------- BB65E A S1M,S3H
16015-Z0L-881 ••••••••••••••••••••••••••••
(CARBURETOR NO.) - 1 - - 1 - - BB62W B -------- A1AW,A1E7,A1M,A2A9,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E
C3E1,C4E,C4E1,E2G7,N1L,N1R,N1U,N2U,N3U,N3V
, , - 1 - - - - - BB62Z B -------- S3H2
, , - 1 - - - - - BB65E B -------- S2G7
- - 1 - - - 1
(CARBURETOR NO.) - - - 1 1 1 - BB62W B -------- A1A,A1G9,A1P,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9,A3T9
A3W7,A3W8,A4A9,A4G4,A4G7,A4G9,BHH,N1A,N1J1,N1T9
N1W7,N2E7,N2E8,N3T8,N3W8,N3W9
- - - 1 1 - - -------- -------- A7H1,S1G4
(CARBURETOR NO.) - - - 1 - 1 - BB62Y B -------- A7E1,N7S1
, , - - - 1 - 1 - BB62Z B -------- R3A,S1A,S1E1,S2E1,S3A
, , - - - 1 - 1 - BB65E B -------- S1M,S2E2,S3E9,S3H,S4E4,S4E9
, , - - - - 1 1 - BB62Y B -------- N7A1
, , - - - - - 1 - BB62W B -------- A2R
, , - - - - - 1 - BB65A B -------- A1AF,N1AF,N5AF,N5MF,N5R
, , - - - - - 1 - BB65L A -------- E1A2
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
1 3111B1 GASKET SET, CARBURETOR ••••••• 0.4
4 (23)
3111D7 SCREW SET, PILOT ••••••••••••• 0.2
7 3111F3 CARBURETOR ••••••••••••••••••• 0.3
8 (2)
3111E1 VALVE SET, FLOAT AND/OR FLOAT
SET ••••••••••••••••••••••••• 0.4
10 (11,18)
3111C0 INSULATOR, CARBURETOR AND/OR
PACKING, INSULATOR •••••••••• 0.3
12 3111C8 PACKING, CARBURETOR •••••••••• 0.3
.NOTE: Same time for two units
13 3111G5 PACKING, CARBURETOR(A) ••••••• 0.2
.NOTE: Air cleaner side
14 (26)
3111G8 GUIDE, CARBURETOR AIR •••••••• 0.3
16 3111C3 JET, MAIN •••••••••••••••••••• 0.4
21 (28)
3111A5 CONTROL, CARBURETOR CHOKE •••• 0.2
24 3111A3 CHAMBER SET, FLOAT AND/OR
GASKET, FLOAT CHAMBER ••••••• 0.3
G 3

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
