Honda GCV160 User Manual

June 23,2012
NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION
M:PART DESCRIPTION CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE
1/2
CODE NO.
13ZM00E8
PARTS CATALOGUE NEWS
Honda Motor Co., Ltd.
Customer Service Technology Development Division
PARTS CATALOGUE - CORRECTED
PARTS
CATALOGUE
NEWS
GCV160
GCV160A
GCV160A0
GCV160E
GCV160LE
GCV160LA
GCV160LA0
Printed in Japan NEWS NO. 038
Reqd.QTY
Block
No.
Ref.
No.
Note Part No. Description
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No. Parts catalogue code
E-14 21 L 16600-Z0L-840 CONTROL ASSY., CHOKE.......... - 1 - - - 1 - ------- ------- S1M,S2G7,S3A2,S3H
- - 1 - - - - ------- 1059693 S2G7

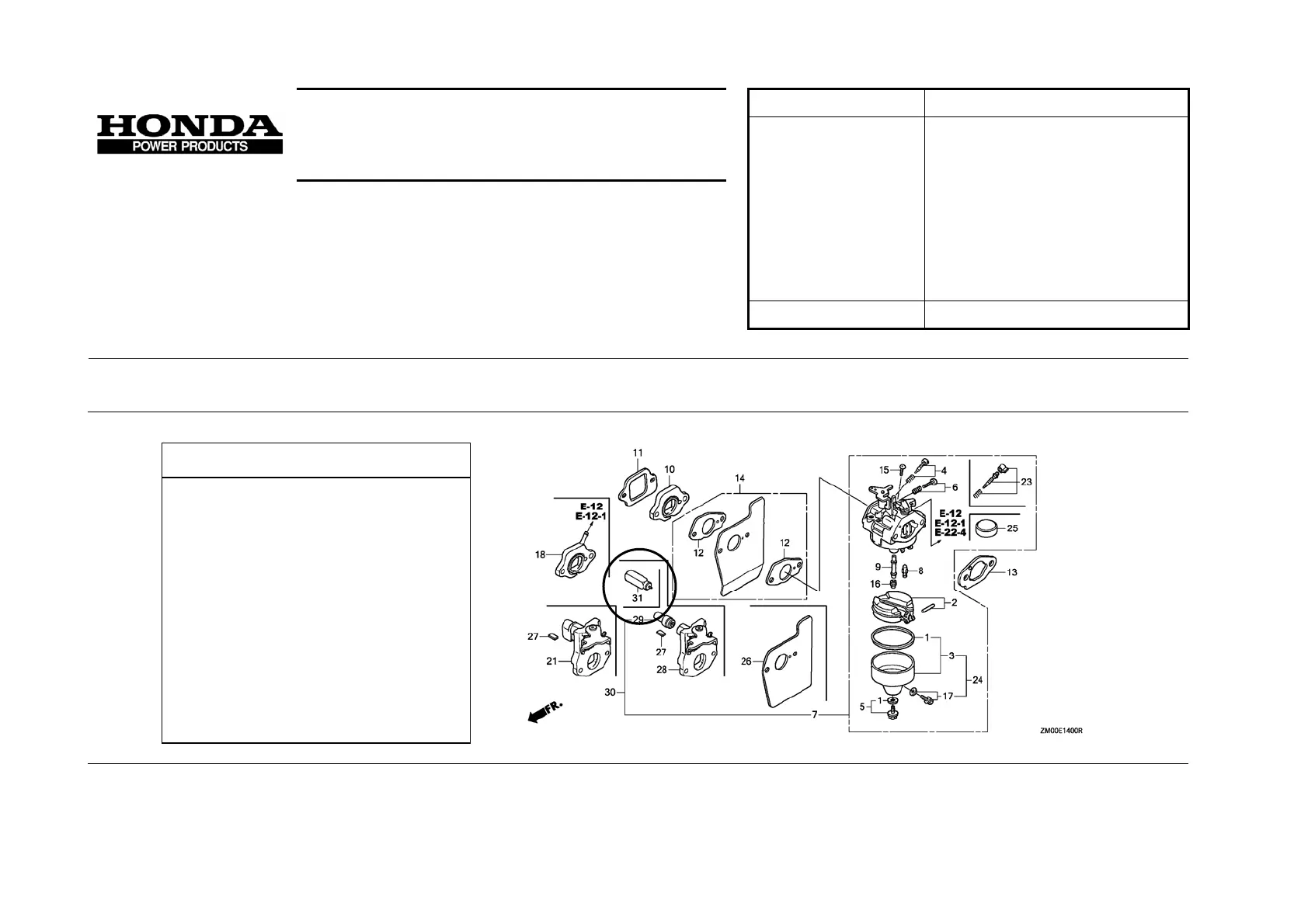

E-14 CARBURETOR
Ref. (Relative ref. Number)
No. LON Description FRT
29 (31)
3111X0 CONTROL, CARBURETOR CHOKE
THERMOWAX ･･･････････････････ 0.3

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
