Ignition
System

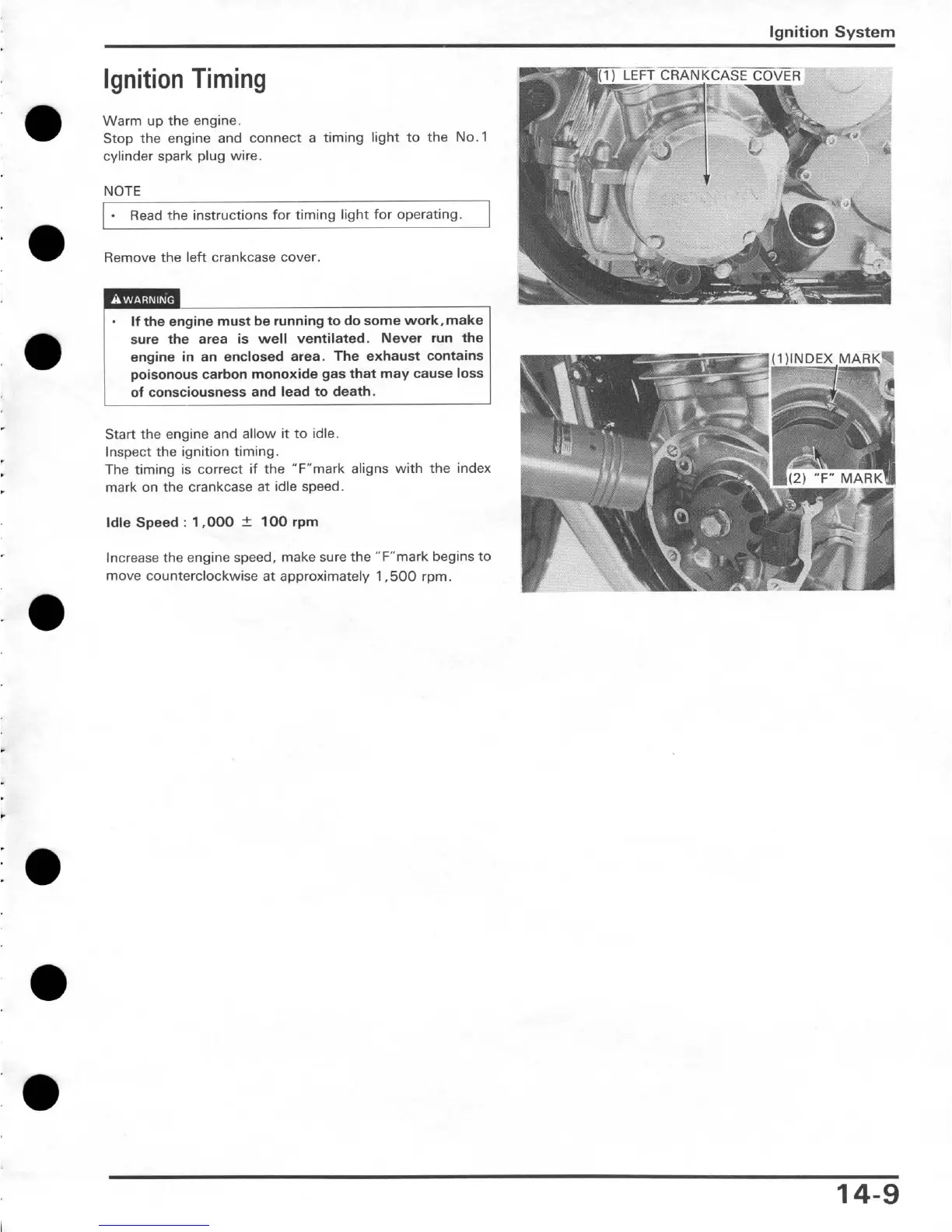

lgnition Timing
Warm up the engine.
Stop the engine and connect a timing light to the
No.1
cylinder spark plug wire.
NOTE
I
.
Read the instructions for timing light for operating.
I
Remove the left crankcase cover.
If the engine must be running to do some
work.make
sure the area is wall ventilated. Never run the
engine in an enclosed area. The exhaust contains
1
1
)INDEX
MARK.
pobonous carbon monoxide gas that may cause loss
of consciousness and lead
m
death.
Start the engine and allow
it
to idle.
Inspect the ignition timing.
The timing is correct
if
the "F"mark aligns with the index
mark on the crankcase at idle speed.
Idle Speed
:
1,000
?
100
rpm
Increase the engine speed, make sure the "F"mark begins to
move counterclockwise at approximately
1.500
rpm.
