Lubrication
System
Oil

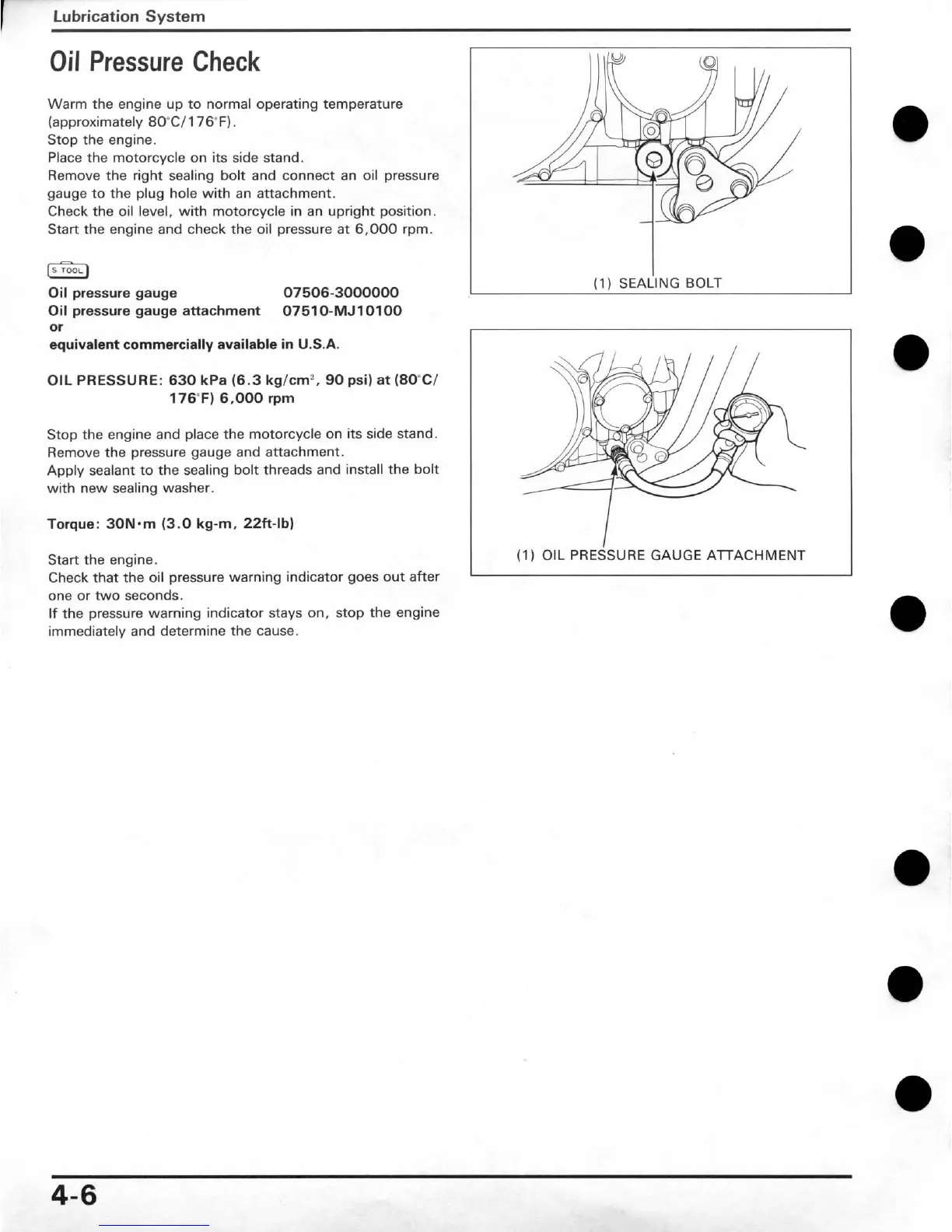

Pressure Check
I
IIP
Q
,
,,
Warm the engine up to normal operating temperature
laooroximatelv 8OC1176'FI.
.
..
Stop the engine.
Place the motorcycle on its side stand.
Remove the right sealing bolt and connect an oil pressure
gauge to the
lug
hole with an attachment.
-
-
.
-
Check the oil level, with motorcycle in an upright position.
Stan the engine and check the oil pressure at
6,000
rpm.
I
I
Oil pressure gauge 07506-3000000
(1) SEALING BOLT
-
-
Oil pressure gauge attachment 07510-MJ10100
or
equivalent commercially available in U.S.A.
OIL PRESSURE: 630
kPa
(6.3
kglcm2, 90 psi) at (80CI
176F) 6,000 rpm
Stop the engine and place the motorcycle on its side stand.
Remove the pressure gauge and attachment.
Apply sealant to the sealing bolt threads and install the bolt
with new sealing washer.
Toque:
30N.m (3.0 kg-m. 22ft-lb)
Start the engine.
Check that the oil pressure warning indicator goes out after
one or two seconds.
If the pressure warning indicator stays on, stop the engine
immediately and determine the cause.
(1) OIL PRESSURE GAUGE ATTACHMENT
