Maintenance

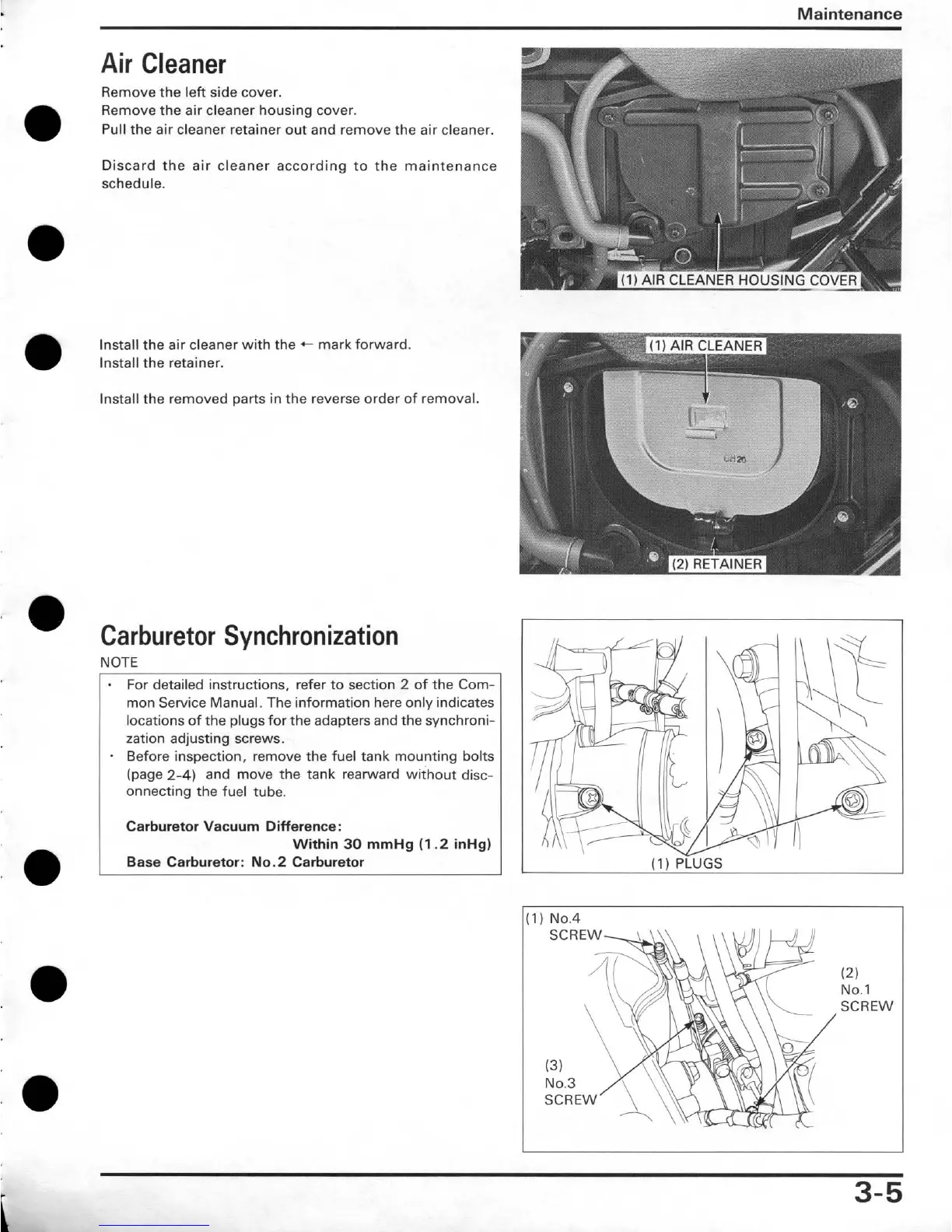

Air Cleaner
Remove the left side cover.
Remove the air cleaner housing cover.
Pull the air cleaner retainer out and remove the air cleaner.
Discard the air cleaner according to the maintenance
schedule.
Install the air cleaner with the
-
mark forward.
Install the retainer.
Install the removed Darts in the reverse order of removal.
Carburetor Synchronization
NOTE
For detailed instructions, refer to section
2
of the Com-
mon
Service Manual. The information here only indicates
locations of the plugs for the adapters and the synchroni-
zation adjusting screws.
Before inspection, remove the fuel tank mounting bolts
(page
2-4)
and move the tank rearward without disc-
onnecting the fuel tube.
Carburetor Vacuum Difference:
Within
30
mmHg
(1.2
inHg)
Base Carburetor: No.2 Carburetor
(1)
PLUGS
(1)
No.4
(2)
No.1
SCREW
