Fuel
System

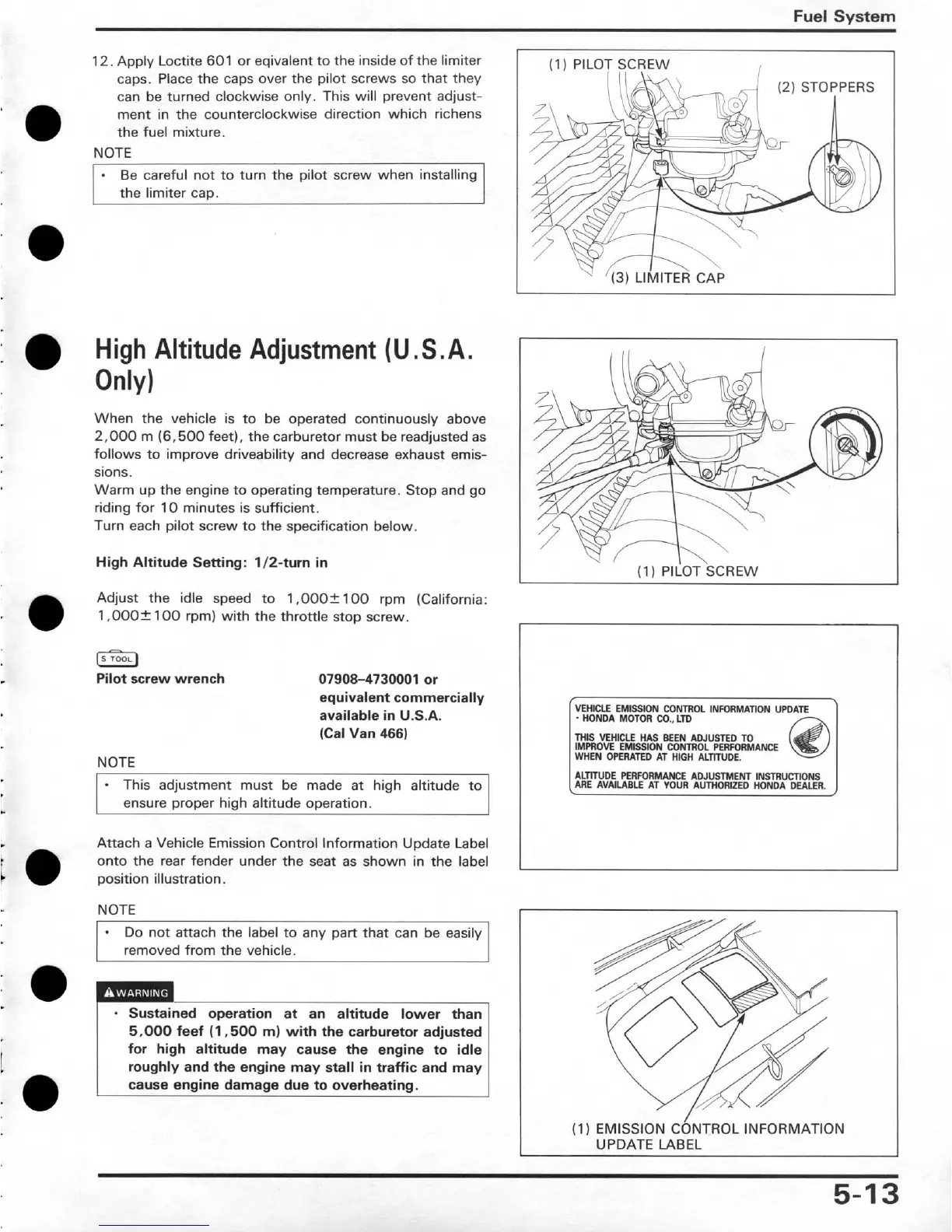

12. Apply Loctite 601 or eqivalent to the inside of the limiter
caps. Place the caps over the pilot screws so that they
can be turned clockwise only. This will prevent adjust-
ment in the counterclockwise direction which
richens
the fuel mixture.
NOTE
.
Be careful not to turn the pilot screw when installing
the limiter cap.
I
(1) PILOT SCREW
I
(2)
STOPPERS
High
Altitude Adjustment
(U
.S.A.
Only)
When the vehicle is to be operated continuously above
2,000 m (6.500 feet). the carburetor must be readjusted as
follows to improve driveability and decrease exhaust emis-
sions.
Warm up the engine to operating temperature. Stop and go
riding for 10 minutes is sufficient.
Turn each
pilot screw to the specification below.
High Altitude
Sening: 112-turn in
Adjust the idle speed to
1,000+ 100 rpm (California:
1,000+ 100 rpm) with the throttle stop screw.
1.....1
Pilot screw wrench 07908-4730001 or
equivalent commercially
available in U.S.A.
(Cal Van
466)
NOTE
This adjustment
must be made at high altitude to
ensure proper high altitude operation.
Anach a Vehicle Emission Control Information Update Label
onto the rear fender under the seat as shown in the label
position illustration.
NOTE
/
.
Do not anach the label to any pan that can be easily
removed from the vehicle.
Sustained operation at an altitude lower than
5.000 feef (1,500
m) with the carburetor adjusted
for high altitude may cause the engine to idle
roughly and the engine may stall in traffic and may
mnlcLE
EMISSON
CONTROL
INFDRMA~ON
UPDATE
1.
HDNDA MOTMI CD..LTD
,----.
THE
MHW
HAS
BEEN
MJUE-TED
m
IMPROW
EY18sWm
CDNlROL PERFDRYW
WHEN WERATED A1 HIGH
UTrmlK
ALTITUDE
PE-
MJUsTWENl INSTRUeMNS
IRE AVNLbBlE AT YOUR AUTHaYED HONDA DUIER.
TROL INFORMATION
