FrameIBodv PanelsIExhaust Svstem

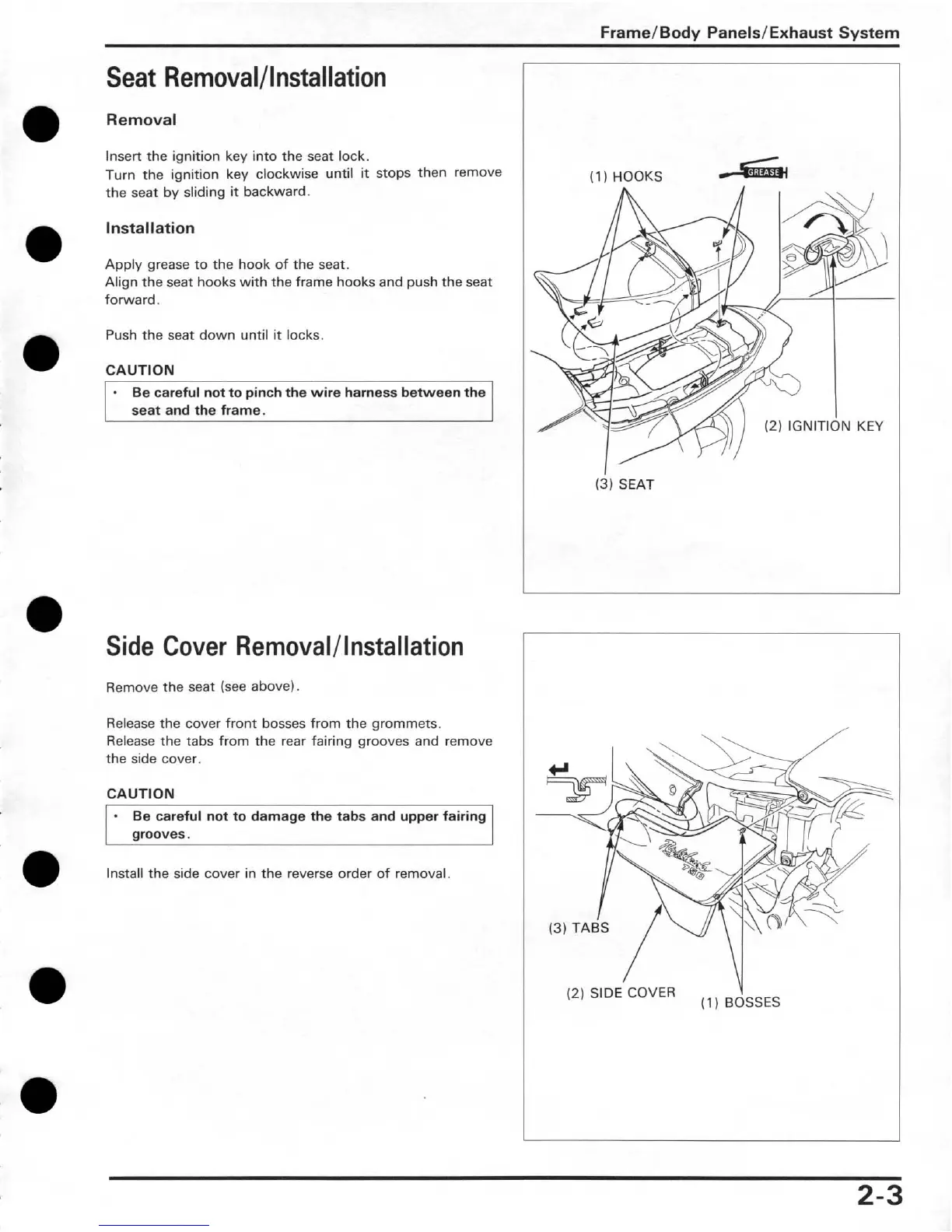

Seat Removal/lnstallation
1
Removal
I
Insert the ignition key into the seat lock.
Turn the ignition key clockwise until
it
stops then remove
the seat by sliding
it
backward.
Installation
Apply grease to the hook of the seat.
Align the seat hooks with the frame hooks and push the seat
forward.
Push the seat down until
it
locks.
CAUTION
Be careful not to pinch the wire harness between the
seat and the frame.
(1
)
HOOKS
A&
(31
SEAT
I
I
Side Cover Removal/lnstallation
Remove the seat (see above).
Release the cover front bosses from the grommets.
Release the tabs from the rear fairing grooves and remove
the side cover.
CAUTION
/
-
Be careful not to damage the tabs and upper fairing]
grooves.
Install the side cover in the reverse order of removal.
(2)
SIDE'COVER
Y
(1) BOSSES
