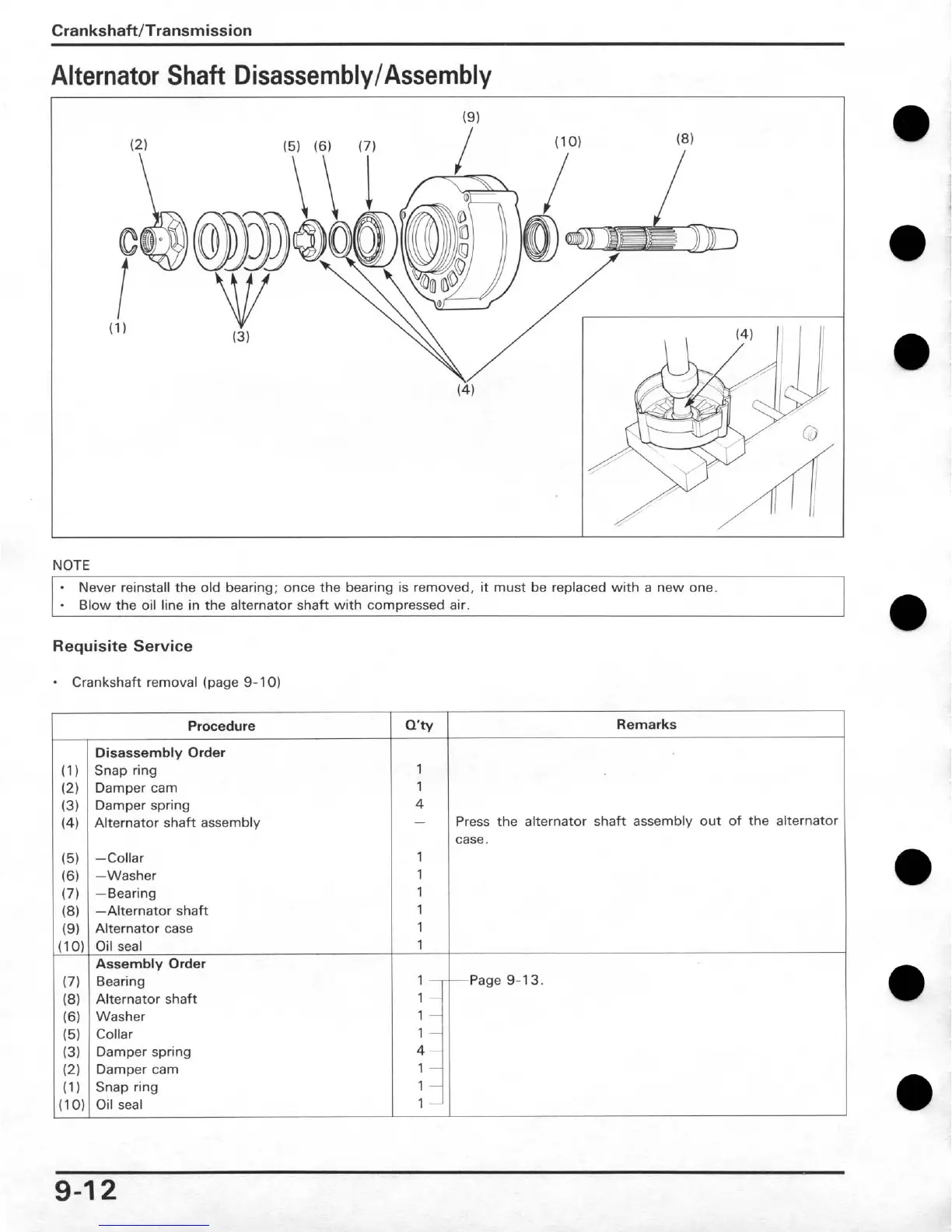

Crankshaft/Transmission
Alternator Shaft Disassembly/Assembly
NOTE
. Never reinstall the old bearing; once the bearing is removed, it must be replaced with a new one.
. Blow the oil line in the alternator shaft with compressed air.
Requisite Service
- Crankshaft removal (page 9-10)
I Procedure 1 O'W I Remarks I
Disassembly Order
(1) Snap ring
(2) Damper cam
(3) Damper spring
(4) Alternator shaft assembly
(5) -Collar
(6) -Washer
(7) -Bearing
(8) -Alternator shaft
(9) Alternator case
(10) Oil seal
Assembly Order
(7) Bearing
(8) Alternator shaft
(6) Washer
(5) Collar
(3) Damper spring
(2) Damper cam
(1) Snap ring
110) Oil seal
Press the alternator shaft assembly out of the alternator
case.
Page
9-1 3.

Honda Nighthawk CB 750 1995 Specifications

General

Displacement	747cc
Compression Ratio	9.3:1
Starting	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Bore x Stroke	67 x 53 mm
Ignition	Electronic
Rear Suspension	Dual shock
Fuel Capacity	18 liters
Torque	62 Nm
Engine Type	747cc air-cooled DOHC inline-4
