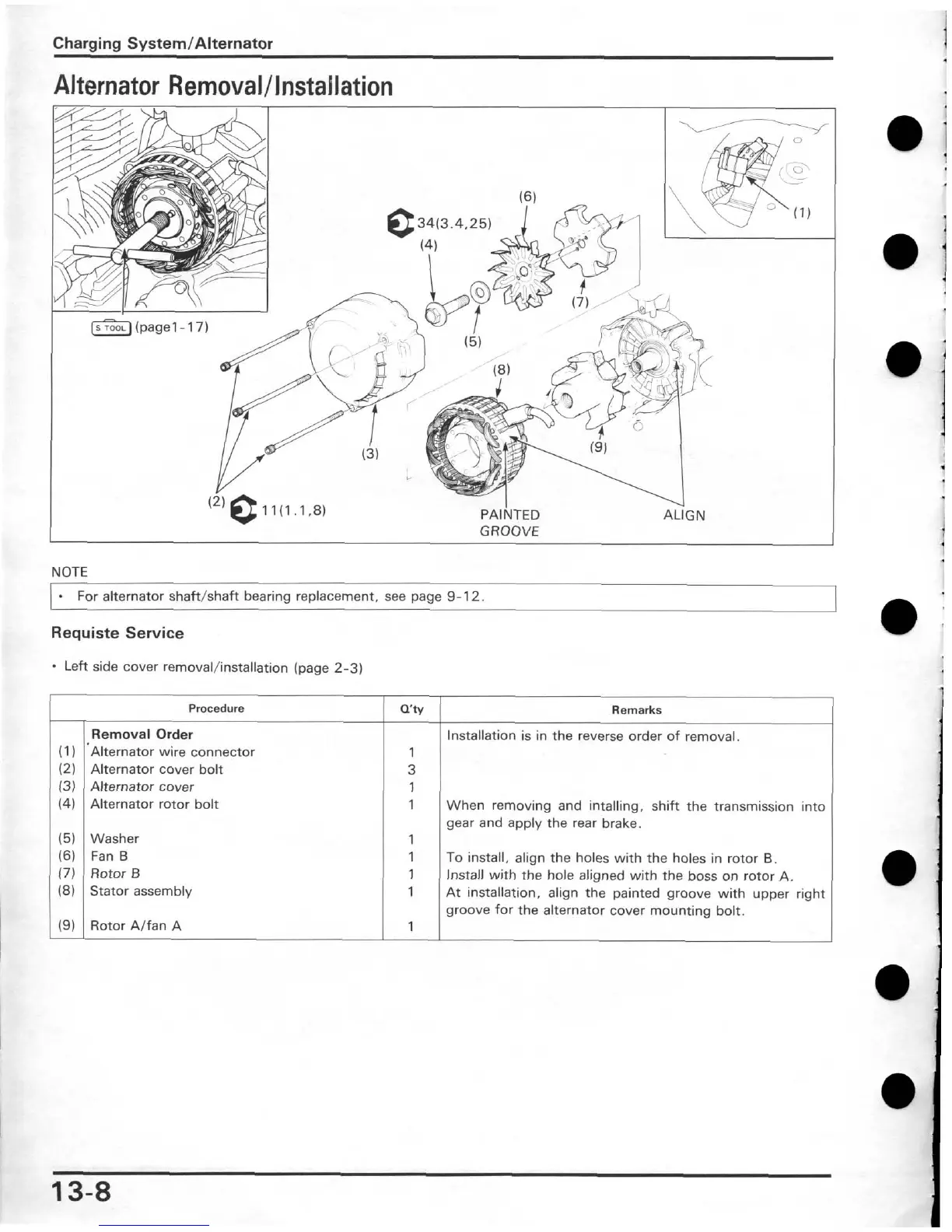

Charging SystemlAlternator
NOTE
- For alternator shaWshaft bearing replacement, see page 9-12.
Requiste Service
. Left side cover removal/installation (page 2-3)
1 Procedure
(5) Washer
(6) Fan B
(7) Rotor B
18) Stator assembly
(1 )
WtY Remarks
Installation is in the reverse order of removal.
Removal Order
'~lternator wire connector
When removing and intalling, shift the transmission into
gear and apply the rear brake.
(2) Alternator cover bolt
(3) Alternator cover
(4) Alternator rotor bolt
1
1
To install, align the holes with the holes in rotor
6.
1
Install with the hole aligned with the boss on rotor
A.
1
At installation, align the painted groove with upper right
groove for the alternator cover mounting bolt.
(9) Rotor Alfan A 1

Honda Nighthawk CB 750 1995 Specifications

General

Displacement	747cc
Compression Ratio	9.3:1
Starting	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Bore x Stroke	67 x 53 mm
Ignition	Electronic
Rear Suspension	Dual shock
Fuel Capacity	18 liters
Torque	62 Nm
Engine Type	747cc air-cooled DOHC inline-4
