Cylinder Head/Cylinder/Piston

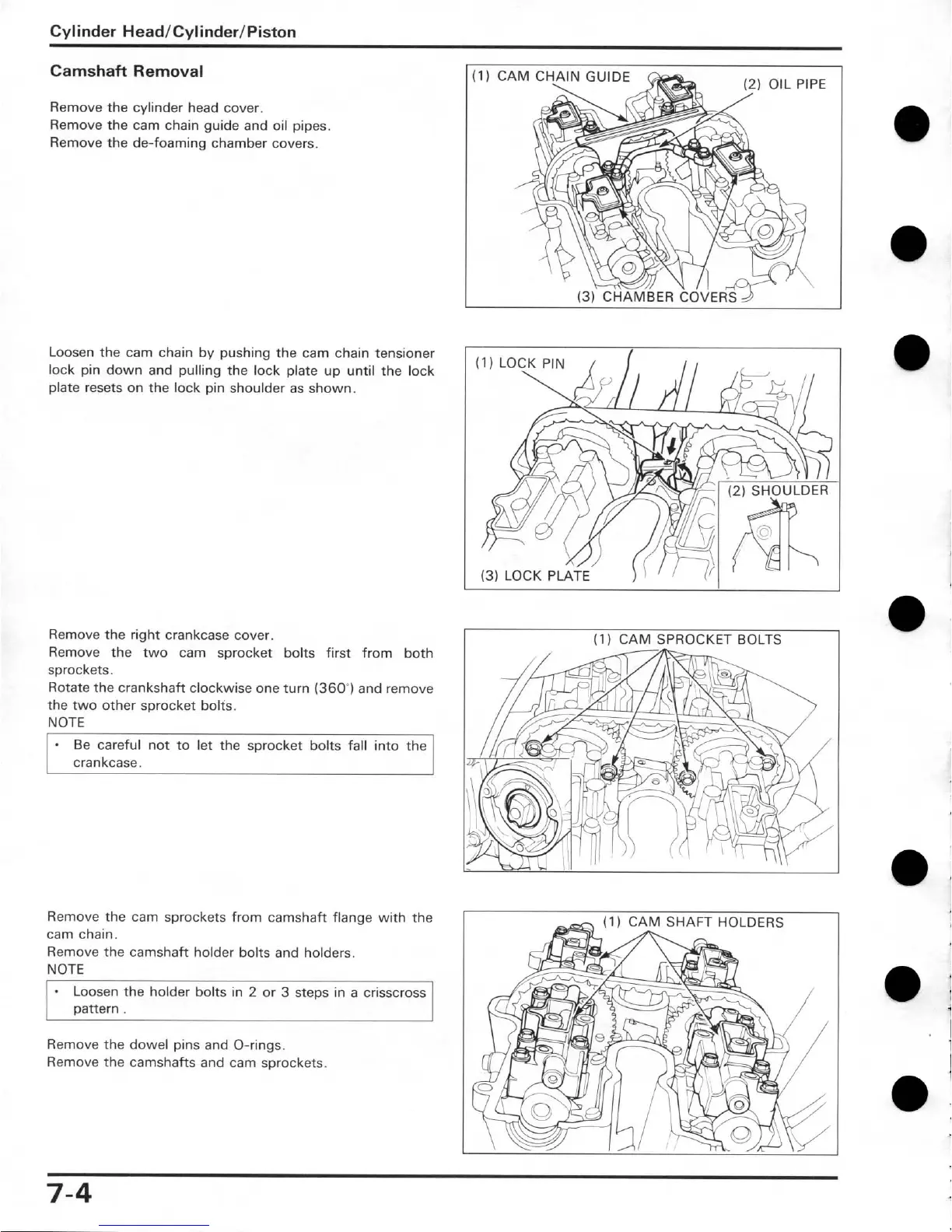

Camshaft Removal
Remove the cylinder head cover.
Remove the cam chain guide and oil pipes
Remove the de-foaming chamber covers.
Loosen the cam chain by pushing the cam chain tensioner
lock pin down and pulling the lock plate up until the lock
plate resets on the lock pin shoulder as shown.
Remove the right crankcase cover.
Remove the two cam sprocket bolts first from both
sprockets.
Rotate the crankshaft clockwise one turn
(360) and remove
the two other sprocket bolts.
NOTE
Be careful not to let the sprocket bolts fall into the
crankcase.
Remove the cam sprockets from camshaft flange with the
cam chain.
Remove the camshaft holder bolts and holders.
NOTE
Loosen the holder bolts in
2 or 3 steps in a crisscross
pattern.
Remove the dowel pins and O-rings.
Remove the camshafts and cam
s~rockets.
I (1) CAM SPROCKET BOLTS I

Honda Nighthawk CB 750 1995 Specifications

General

Displacement	747cc
Compression Ratio	9.3:1
Starting	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Bore x Stroke	67 x 53 mm
Ignition	Electronic
Rear Suspension	Dual shock
Fuel Capacity	18 liters
Torque	62 Nm
Engine Type	747cc air-cooled DOHC inline-4
