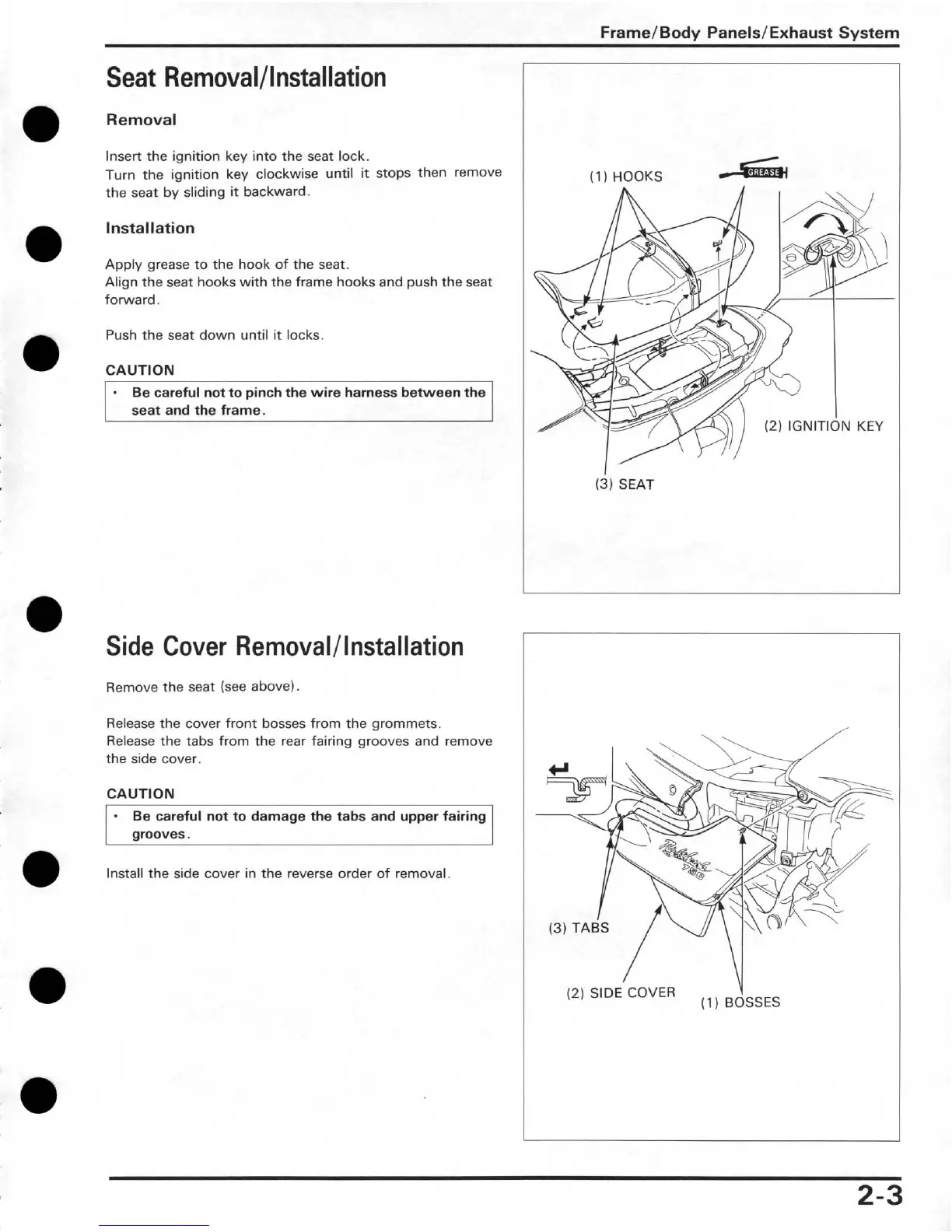

FrameIBodv PanelsIExhaust Svstem
Seat Removal/lnstallation 1
Removal
I
Insert the ignition key into the seat lock.
Turn the ignition key clockwise until
it stops then remove
the seat by sliding
it backward.
Installation
Apply grease to the hook of the seat.
Align the seat hooks with the frame hooks and push the seat
forward.
Push the seat down until
it locks.
CAUTION
Be careful not to pinch the wire harness between the
seat and the frame.
(1 ) HOOKS A&
(31 SEAT
I I
Side Cover Removal/lnstallation
Remove the seat (see above).
Release the cover front bosses from the grommets.
Release the tabs from the rear fairing grooves and remove
the side cover.
CAUTION
/ - Be careful not to damage the tabs and upper fairing]
grooves.
Install the side cover in the reverse order of removal.
(2) SIDE'COVER
Y
(1) BOSSES

Honda Nighthawk CB 750 1995 Specifications

General

Displacement	747cc
Compression Ratio	9.3:1
Starting	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Dual disc
Rear Brake	Single disc
Bore x Stroke	67 x 53 mm
Ignition	Electronic
Rear Suspension	Dual shock
Fuel Capacity	18 liters
Torque	62 Nm
Engine Type	747cc air-cooled DOHC inline-4
