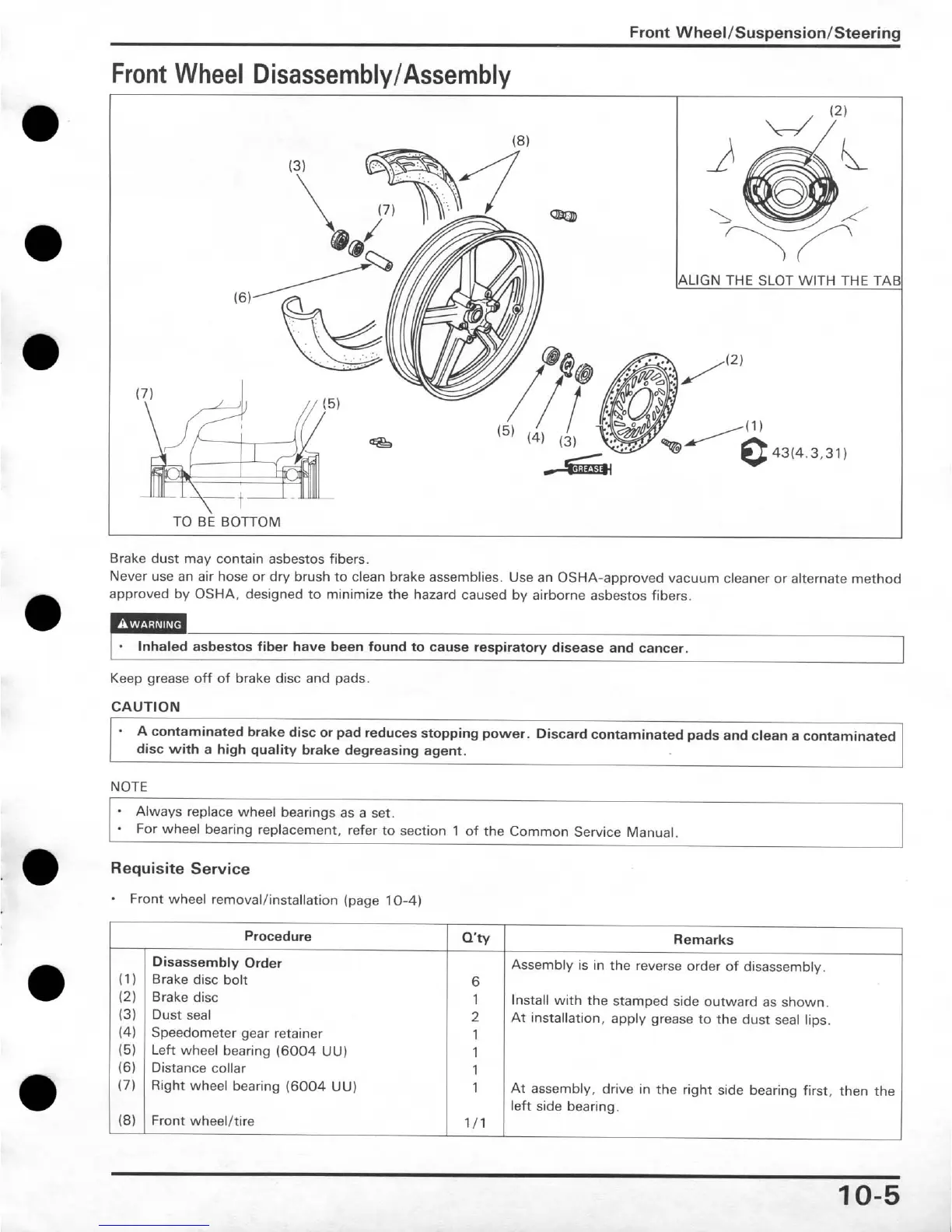

Front
Wheel/Suspension/Steering
Front
Wheel Disassembly/Assembly
ALIGN THE SLOT WITH THE TAB
43(4.3,31)
TO
B$
BOTTOM
Brake dust may contain asbestos fibers.
Never use an air hose or dry brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner or alternate method
approved by OSHA, designed to minimize the hazard caused by airborne asbestos fibers.
I
.
Inhaled asbestos fiber have been found to cause respiratory disease and cancer.
1
Keep grease off of brake disc and pads.
A
contaminated brake disc or pad reduces stopping power. Discard contaminated pads and clean a contaminated
disc with a high quality brake degreasing agent.
NOTE
Always replace wheel bearings as a set.
-
For wheel bearing replacement, refer to section
1
of the Common Service Manual.
Requisite Service
Front wheel removallinstallation (page 10-4)
Procedure
Disassembly Order
Brake disc bolt
Brake disc
Dust seal
Speedometer gear retainer
Left wheel bearing (6004 UU)
Distance collar
,
Right wheel bearing (6004 UU)
Q'ty
I
Remarks
6
1
(8)
/
Front wheelltire
Assembly is in the reverse order of disassembly.
1
2
1
1
1
1
left
s~de bearing
1
111
I
Install with the stamped side outward as shown.
At installation, apply grease to the dust seal lips.
At assembly. drive in the right side
bearing first. then the
