Honda PCX150 2016 User Manual

..
...

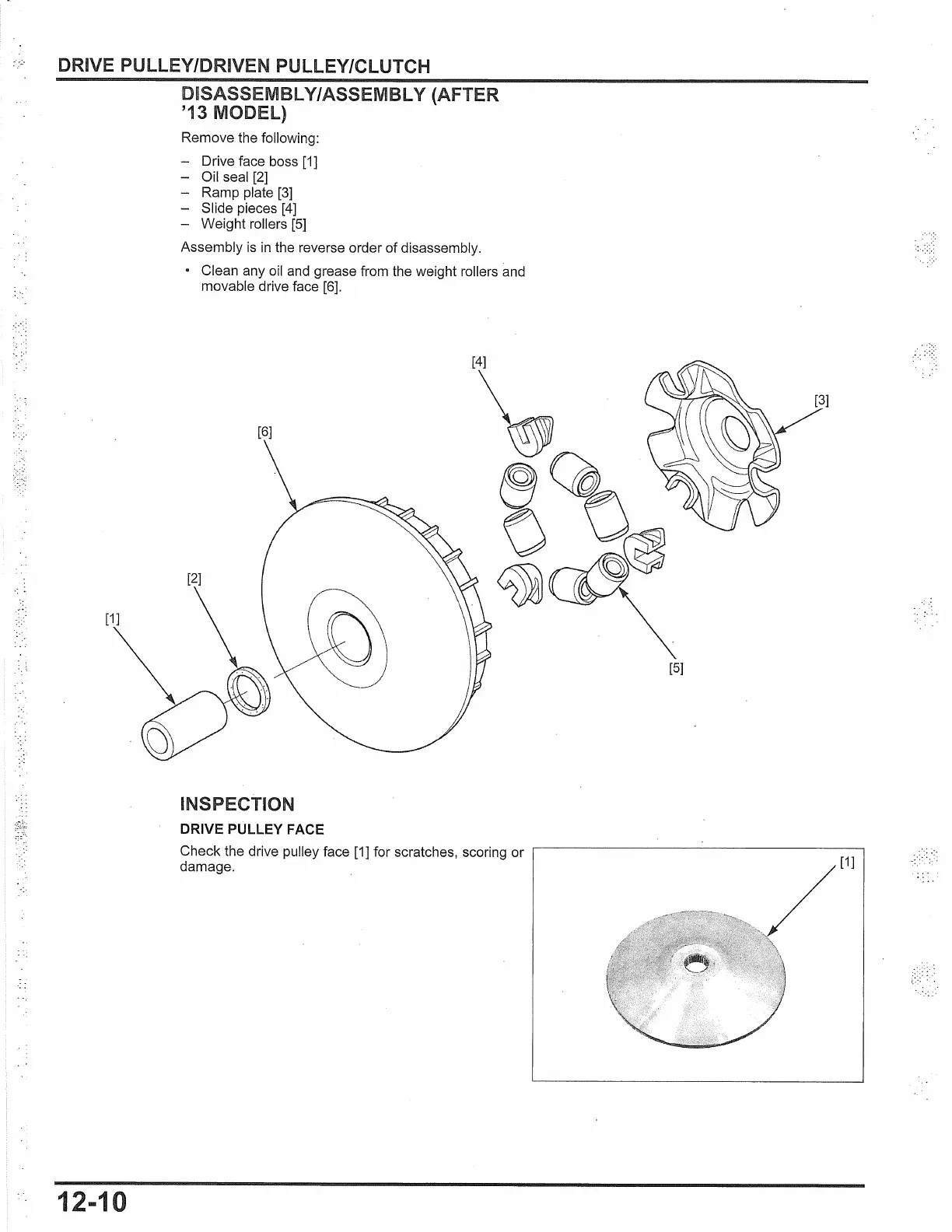

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
[1]
\
12-10
DISASSEMBLY/ASSEMBLY (AFTER
'13 MODEL)
Remove the following:
- Drive face boss
[1]
- Oil seal [2]
- Ramp plate
[3]
- Slide pieces
[4]
- Weight rollers
[5]
Assembly
is
in
the reverse order of disassembly.
• Clean any oil and grease from the weight rollers and
movable drive face [6].
[6]
[2]
©
~-)
INSPECTION
DRIVE PULLEY FACE
Check the drive pulley face
[1]
for scratches, scoring or
damage.
[5]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
