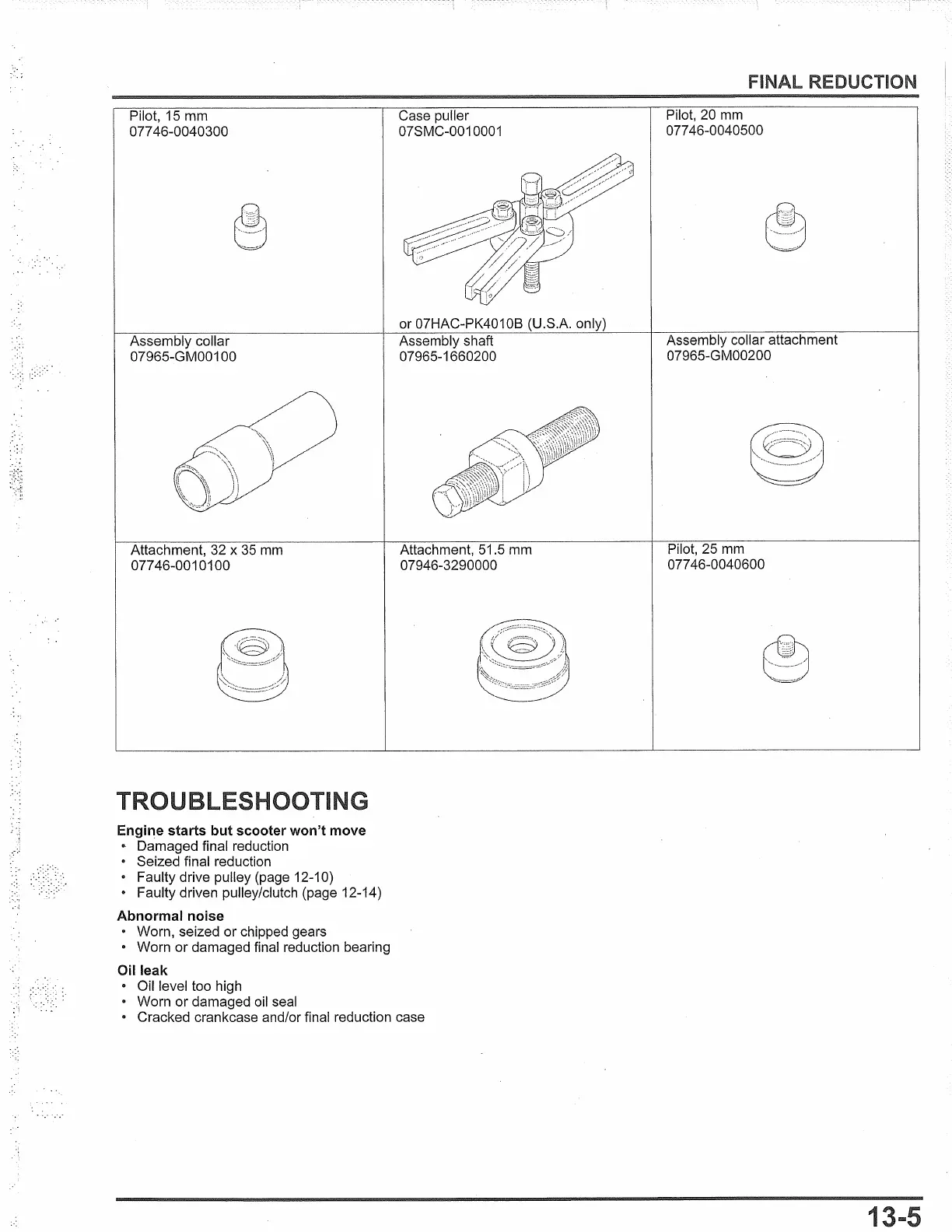

Honda PCX150 2016 User Manual

Pilot, 15 mm
077 46-0040300
Assembly collar
07965-GM00100
Attachment, 32 x
35
mm
07746-0010100
u
Engine starts but scooter won't move
..
Damaged final reduction
• Seized final reduction
• Faulty drive pulley (page 12-10)
• Faulty driven pulley/clutch (page 12-14)
Abnormal noise
• Worn, seized
or
chipped gears
• Worn
or
damaged final reduction bearing
Oil leak
• Oil level too high
• Worn
or
damaged oil seal
Case puller
07SMC-0010001
or 07HAC-PK4010B (U.S.A. only)
Assembly shaft
07965-1660200
Attachment, 51.5 mm
07946-3290000
• Cracked crankcase and/or final reduction case
FINAL REDUCTION
Pilot, 20
mm
077 46-0040500
Assembly collar attachment
07965-GM00200
Pilot, 25 mm
077 46-0040600
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
