Honda PCX150 2016 User Manual

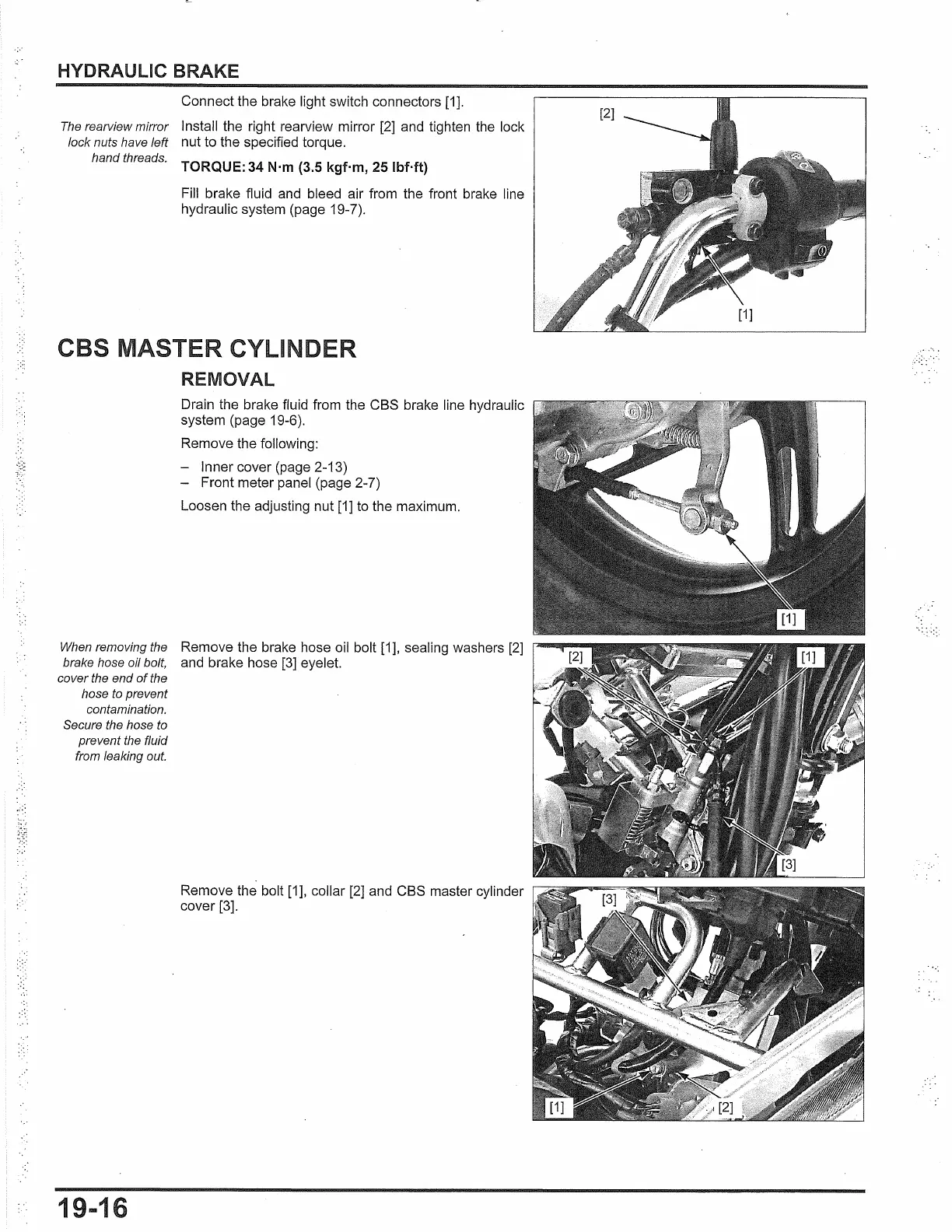

HYDRAULIC BRAKE
Connect the brake light switch connectors
[1].
The rearview mirror
Install the right rearview mirror [2] and tighten the lock
lock nuts have left
nut to the specified torque.
hand
threads.
TORQUE: 34 N·m (3.5 kgf·m, 25
lbMt)
Fill brake fluid and bleed air from the front brake line
hydraulic system (page 19-7).
CBS MASTER CYLIND R
REMOVAL
Drain the brake fluid from the CBS brake line hydraulic
system (page 19-6).
Remove the following:
- Inner cover (page 2-13)
- Front meter panel (page 2-7)
Loosen the adjusting nut [1] to the maximum.
When removing the
Remove the brake hose oil bolt [1], sealing washers
[2]
brake hose oil bolt,
and brake hose
[3]
eyelet.
cover the end
of
the
hose to prevent
contamination.
Secure the hose to
prevent the fluid
from leaking out.
19
...
15
Remove the bolt [1], collar [2] and CBS master cylinder
cover [3].

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
