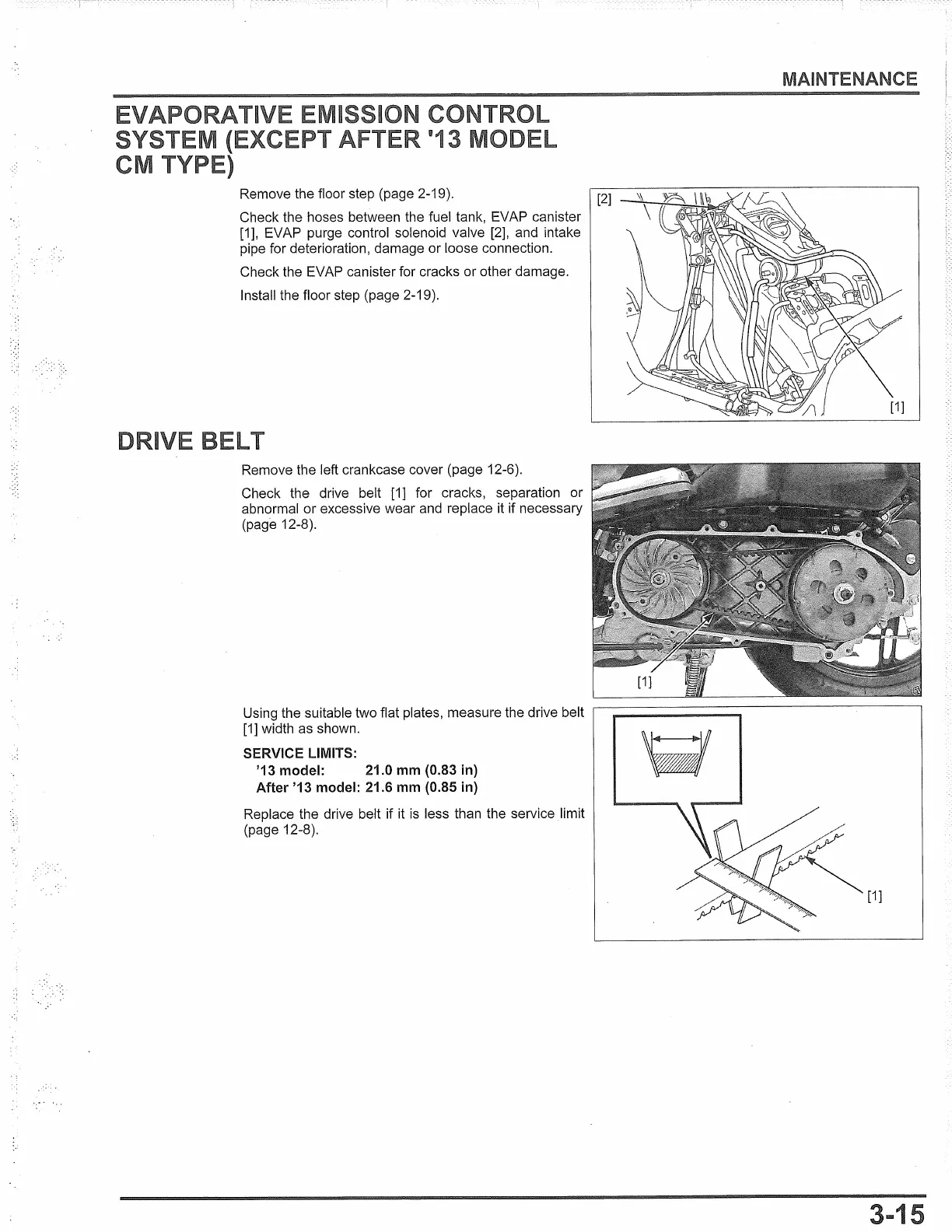

Remove the floor step (page 2-19).
Check the hoses between the fuel tank, EVAP canister
[1], EVAP purge control solenoid valve [2], and intake
pipe for deterioration, damage or loose connection.
Check the EVAP canister for cracks or other damage.
Install the floor step (page 2-19).
Remove the left crankcase cover (page 12-6).
Check the drive belt
[1]
for cracks, separation or
abnormal or excessive wear
and
replace it if necessary
(page 12-8).
Using the suitable two flat plates, measure the drive belt
[1]
width
as
shown.
SERVICE LIMITS:
'13 model: 21.0
mm
(0.83 in)
After '13 model: 21.6
mm
(0.85 in)
Replace the drive belt if it
is
less than the service limit
(page 12-8).
MAINTENANCE
[2]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
