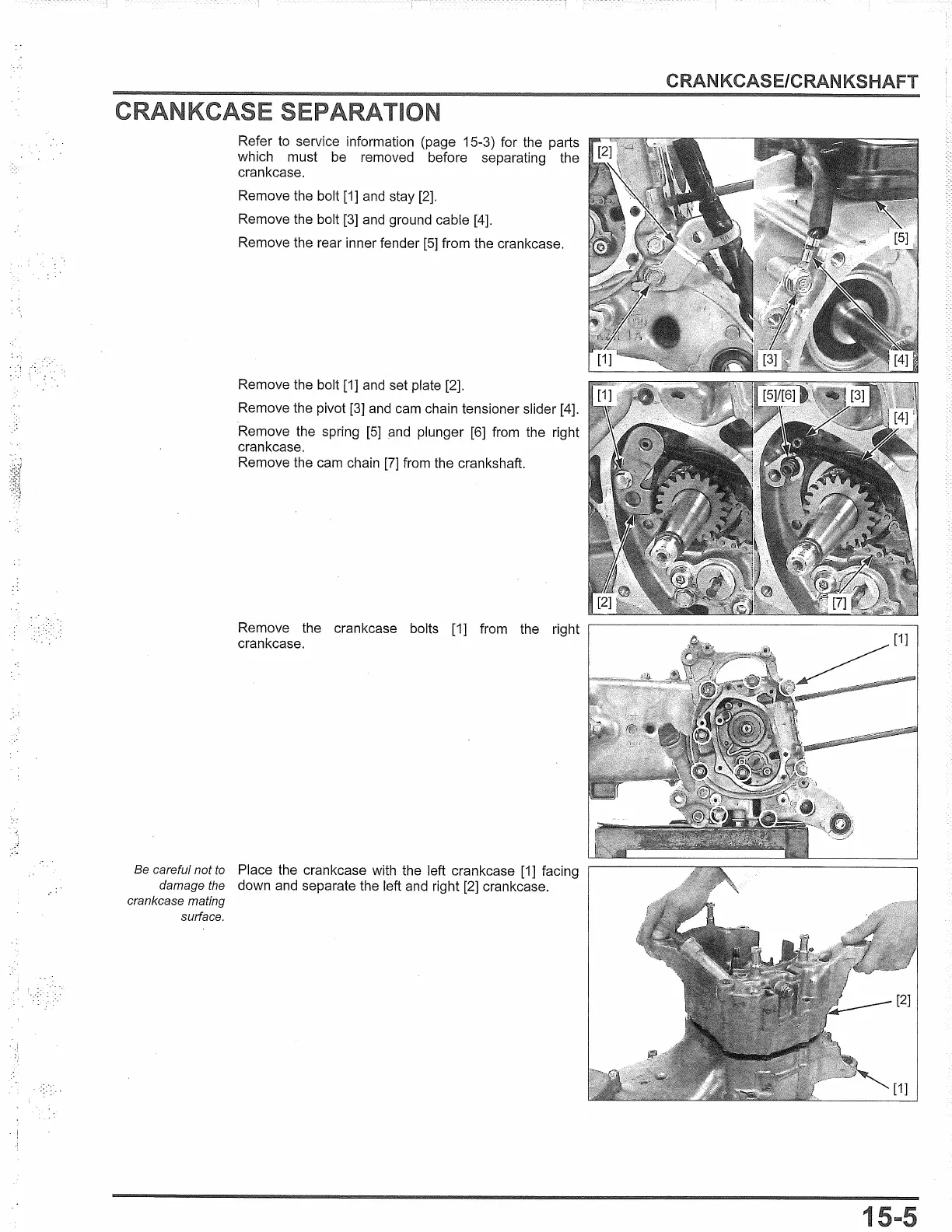

Refer
to
service information (page 15-3) for the parts
which must be removed before separating the
crankcase.
Remove the bolt
[1]
and
stay
[2].
Remove the bolt
[3]
and
ground cable [4].
Remove the rear inner fender
[5]
from the crankcase.
Remove the bolt
[1]
and
set plate [2].
Remove the pivot
[3]
and
cam chain tensioner slider [4].
Remove the spring
[5]
and
plunger
[6]
from the right
crankcase.
Remove the cam chain
[7]
from the crankshaft.
Remove the crankcase bolts [1] from the right
crankcase.
Be careful
not
to
Place the crankcase with the left crankcase
[1]
facing
damage the
down and separate the left
and
right
[2]
crankcase.
crankcase mating
surface.
CRANKCASE/CRANKSHAFT
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
