Honda PCX150 2016 User Manual

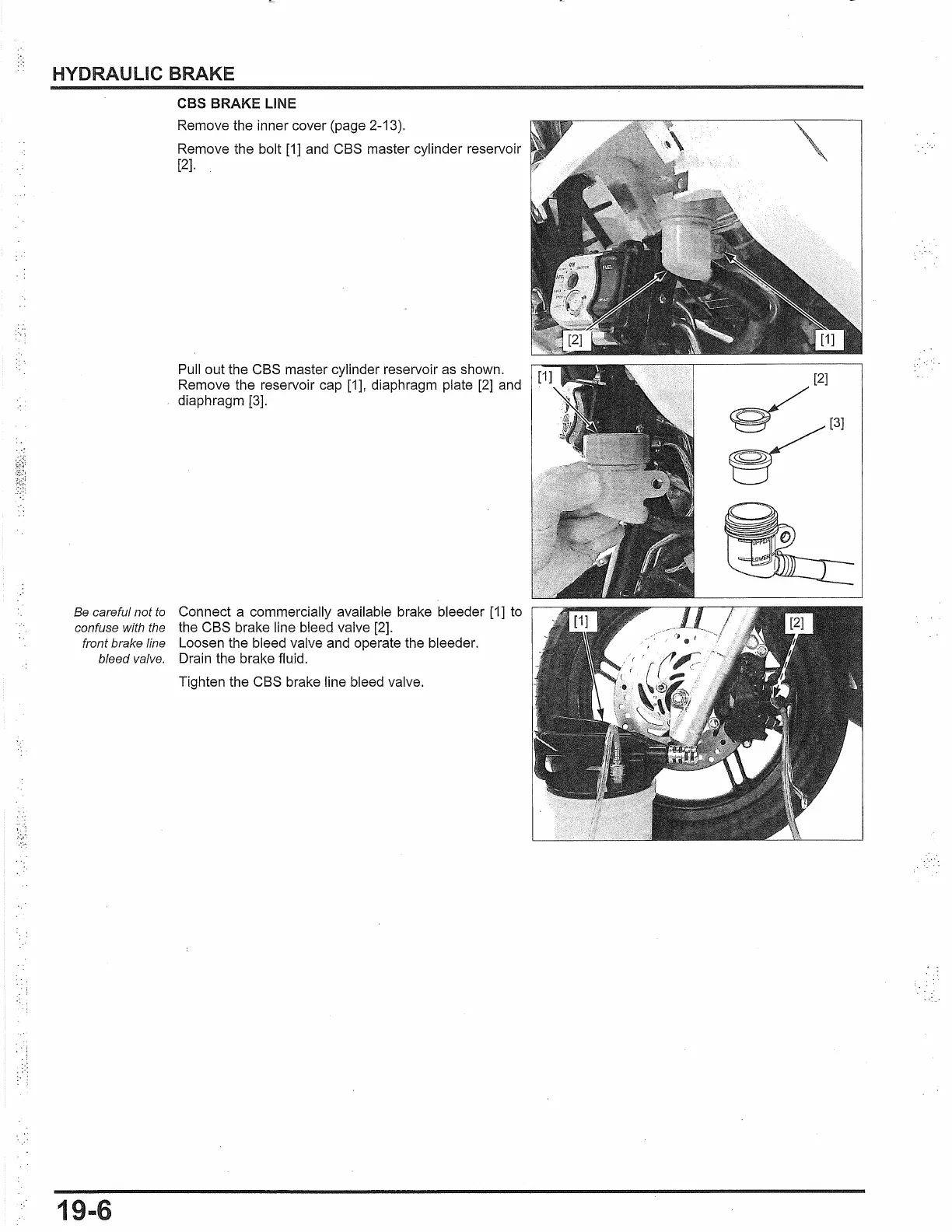

HYDRAULIC BRAKE
CBS BRAKE LINE
Remove the inner cover (page 2-13).
Remove the bolt [1] and CBS master cylinder reservoir
[2].
Pull out the CBS master cylinder reservoir as shown.
Remove the reservoir cap [1], diaphragm plate [2] and
diaphragm [3].
Be careful not to Connect a commercially available brake bleeder [1] to
confuse with the the CBS brake line bleed valve [2].
front brake line Loosen the bleed valve and operate the bleeder.
bleed valve. Drain the brake fluid.
Tighten the CBS brake line bleed valve.
19-6
[2]
~(3]
~

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
