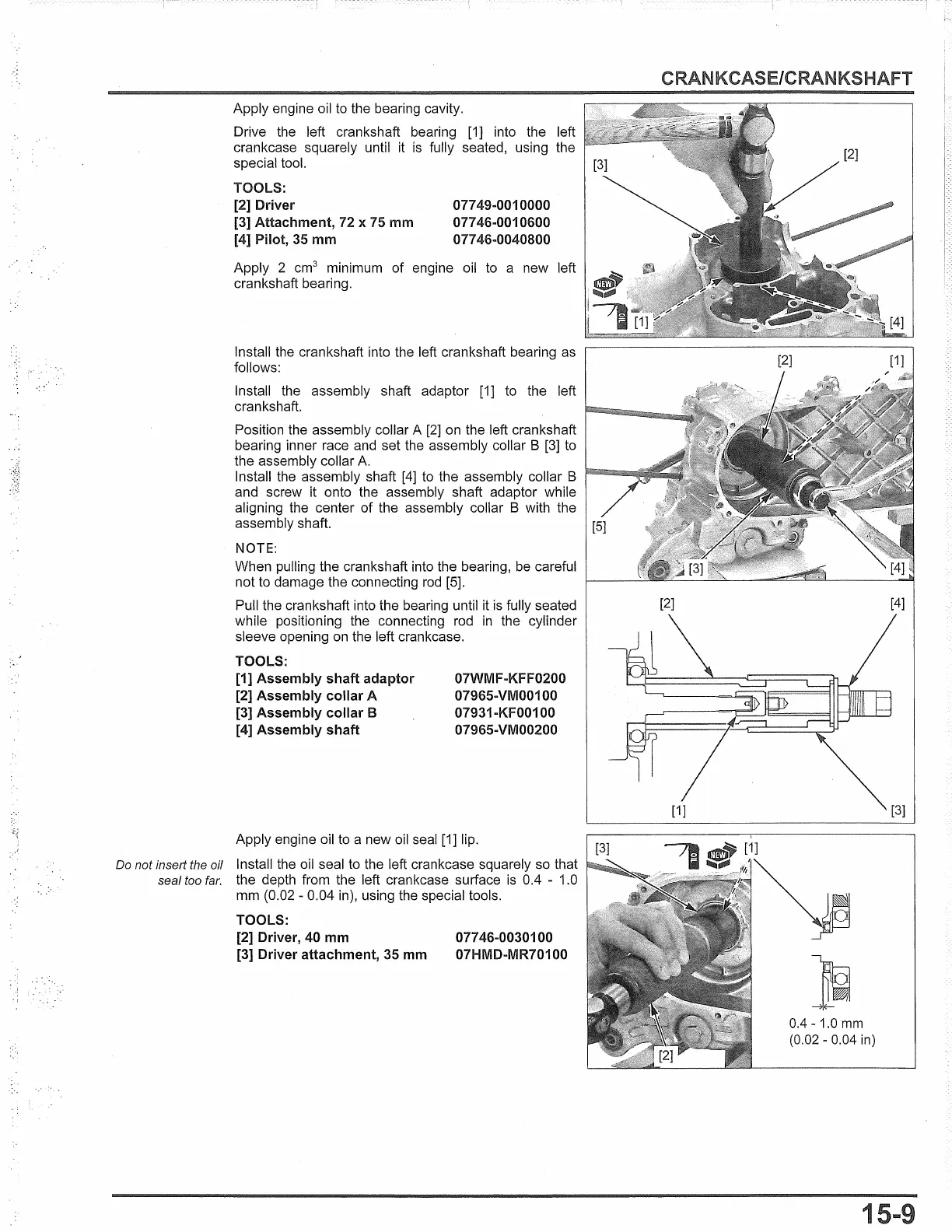

Apply engine oil
to
the bearing cavity.
Drive the left crankshaft bearing [1] into the left
crankcase squarely until it
is
fully seated, using the
special tool.
TOOLS:
[2] Driver
[3] Attachment, 72 x 75
mm
[4]
Pilot, 35 mm
07749-0010000
077 46-0010600
077 46-0040800
Apply 2
cm
3
minimum
of
engine oil to a new left
crankshaft bearing.
Install the crankshaft into the left crankshaft bearing as
follows:
Install the assembly shaft adaptor
[1] to the left
crankshaft.
Position the assembly collar A
[2]
on the left crankshaft
bearing inner race and set the assembly collar
B
[3]
to
the assembly collar
A.
Install the assembly shaft [4] to the assembly collar B
and screw it onto the assembly shaft adaptor while
aligning the center
of
the assembly collar B with the
assembly shaft.
[5]
NOTE:
When pulling the crankshaft into the bearing, be careful
not to damage the connecting
rod
[5].
Pull the crankshaft into the bearing until it
is
fully seated
while positioning the connecting rod
in
the cylinder
sleeve opening on the left crankcase.
TOOLS:
[1] Assembly shaft adaptor
[2] Assembly collar A
[3] Assembly collar B
[4] Assembly shaft
07WMF-KFF0200
07965-VM00100
07931-KF00100
07965-VM00200
Apply engine oil to a new oil seal [1] lip.
Do not insert the oil Install the oil seal to the left crankcase squarely so that
seal too
far.
the depth from the left crankcase surface
is
0.4 - 1.0
mm (0.02 - 0.04 in), using the special tools.
TOOLS:
[2] Driver, 40
mm
[3] Driver attachment, 35
mm
077 46-0030100
07HMD-MR70100
CRANKCASE/CRANKSHAFT
[2]
[1]
r'~
)
0.4
-1.0
mm
(0.02 - 0.04 in)
1
[4]
