FRAME/BODY PANELS/EXHAUST SYSTEM
2-24

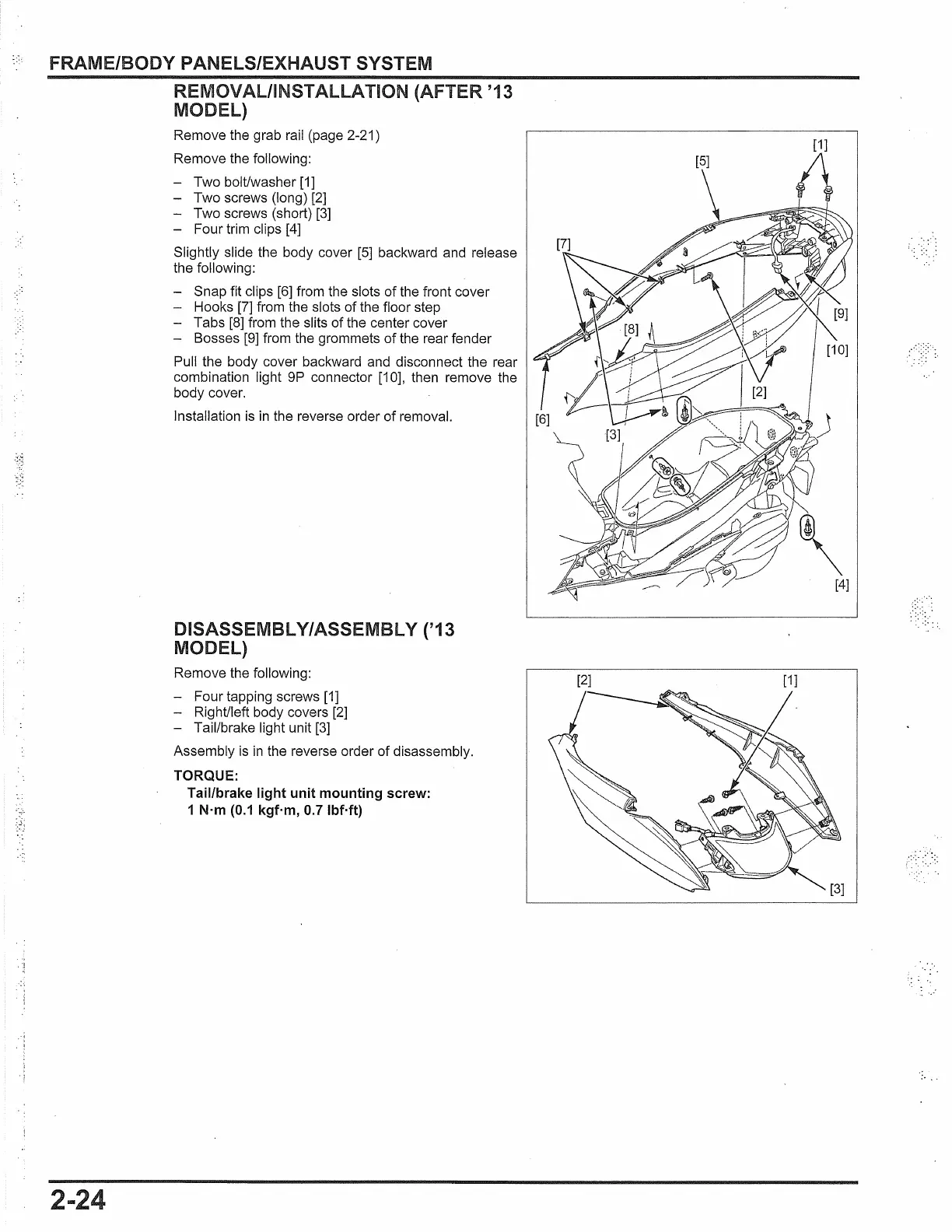

REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the grab rail (page 2-21)
Remove the following:
- Two bolt/washer [1]
- Two screws (long)
[2]
- Two screws (short)
[3]
- Four trim clips
[4]
Slightly slide the body cover [5] backward and release
the following:
Snap fit clips [6] from the slots
of
the front cover
- Hooks [7] from the slots
of
the floor step
- Tabs [8] from the slits of the center cover
- Bosses
[9]
from the grommets
of
the rear fender
Pull the body cover backward and disconnect the rear
combination light
9P
connector
[1
O],
then remove the
body cover.
Installation
is
in
the reverse order
of
removal.
DISASSEMBLY/ASSEMBLY
('13
MODEL)
Remove the following:
- Four tapping screws
[1]
- Right/left body covers
[2]
- Tail/brake light unit
[3]
Assembly
is
in
the reverse order
of
disassembly.
TORQUE:
Tail/brake light unit mounting screw:
1 N·m
(0.1
kgf·m, 0.7 lbMt)

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
