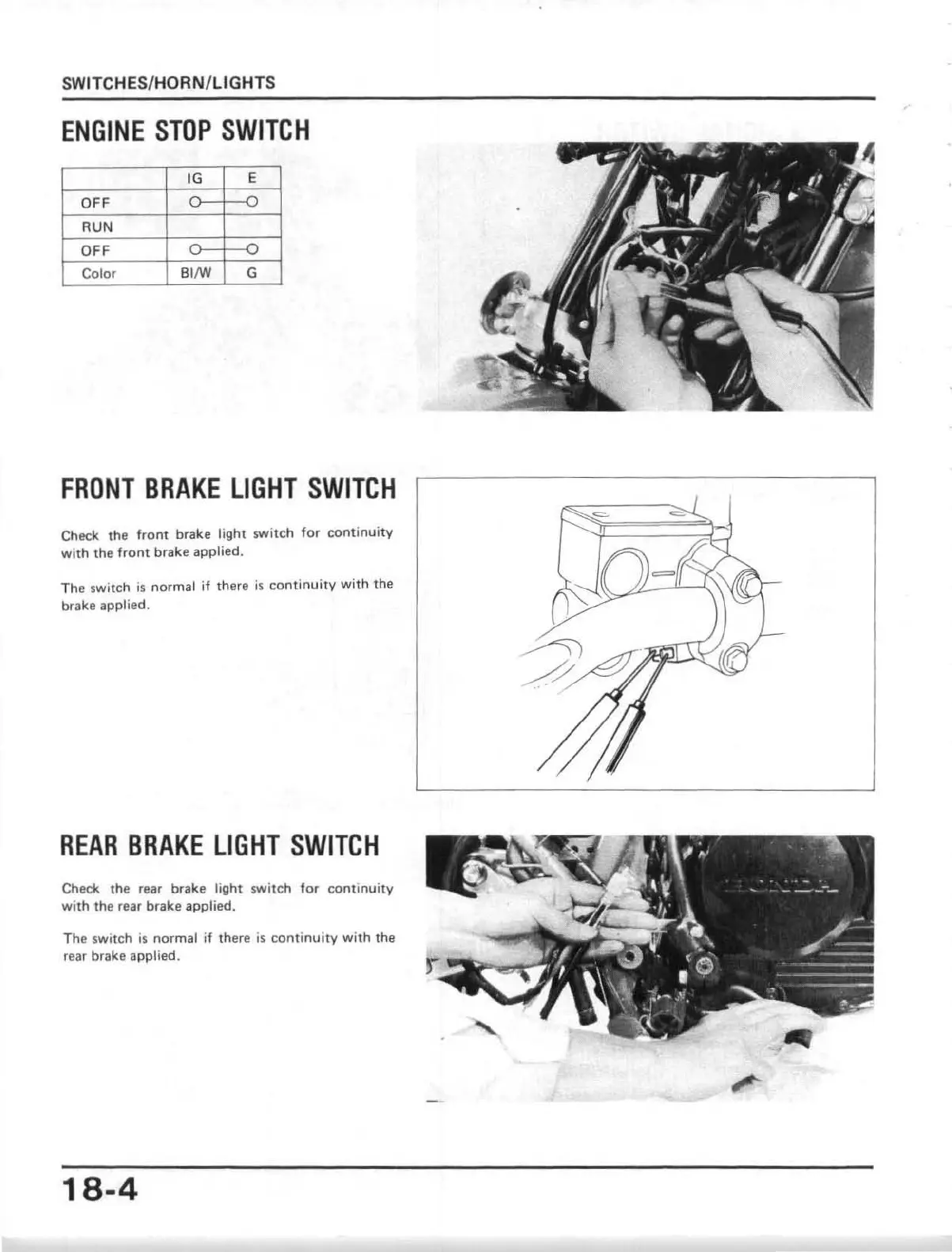

SWITCHES/HORN/LIGHTS
ENGINE STOP SWITCH
IG
E
OFF
0
-0
RUN
OFF
Color
BI/W
G
FRONT BRAKE LIGHT SWITCH
Check the front brake light switch for continuity
with the front brake applied.
The swi tth is normal if there is contin uit y with the
brake applied.
REAR BRAKE LIGHT SWITCH
Check th e rear brake light switch for continuity
with the rear brake applied.
The switch is norma l if there is continuity with the
rear brake applied.
18-4

Honda XL350R 1984 Specifications

General

Ignition	CDI
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Pro-Link single shock
Rear Brake	Drum
Front Tire	3.00-21
Rear Tire	4.60-17
Engine Type	single cylinder
Carburetion	Keihin
Front Brake	Disc
Seat Height	880 mm (34.6 inches)
Fuel Capacity	12 liters (3.2 gallons)
Transmission	6-speed
